24 Installation and operating instructions • Wilo-Control SC2.0-Booster • Ed.01/2023-09
• Set fieldbus protocol: Interaction/Communication→BMS→Modbus TCP
7 Operation
7.1 Operating elements
Main switch
• On/Off
• Lockable in “Off” position
LCD display

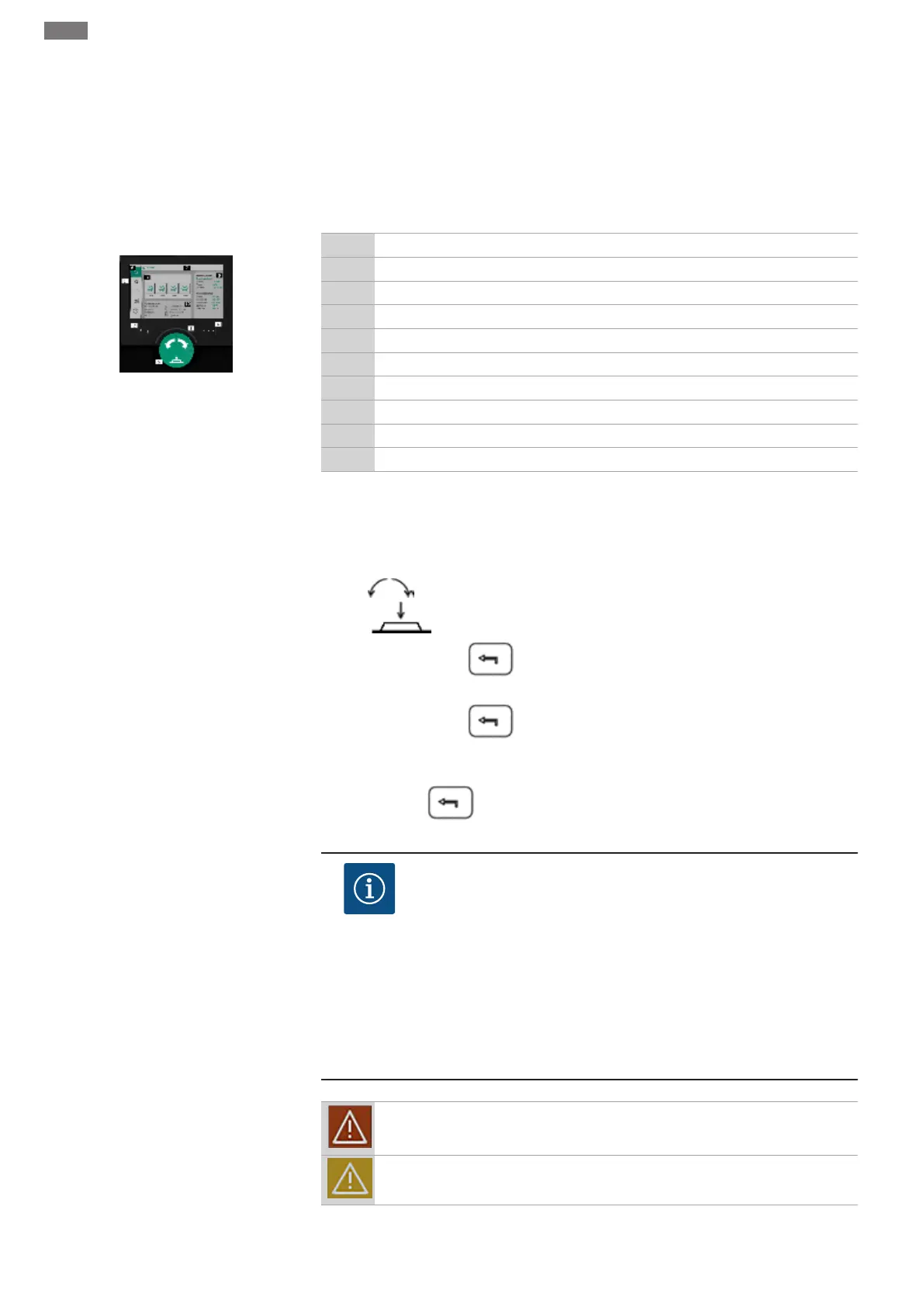

Fig.13: Display structure
1 LCD display
2 Back button
3 LED arc
4 Context menu button
5 Rotate and press button
6 Main menu
7 Menu display
8 Status display
9 Info and help area
10 Active influences
Carry out settings by turning and pressing the operating button. Turn the operating button
to the left or right to browse the menus or configure settings. A green focus indicates navig-
ation in the menu. A yellow focus indicates a configuration of settings.
• Green focus: Navigation in menu
• Yellow focus: Change settings
• Turn : Menu selection and parameter setting
• Press : Activation of menus or confirming settings
Pressing the back button returns the focus to the previous focus. Consequently, the
focus moves one level further up in the structure or to a previous setting.
Pressing the back button after having changed a setting (yellow focus) without con-
firming the changed value returns the focus to the previous focus. The adjusted value will be
discarded. The previous value remains unchanged.
If the back button is pressed for more than 2 seconds, the main menu appears and
the pump can be operated via the main menu.
NOTICE
If there are no warning or error messages, the display on the control mod-
ule will switch off 2 minutes after the last time it was operated.
• If the operating button is pressed or turned again within 7minutes, the
previously exited menu will appear. You can continue to configure set-
tings.
• If the operating button is not pressed or turned for more than
7minutes, any unconfirmed settings will be lost. Pressing the button
again opens the main menu on the display and the pump can be oper-
ated from the main menu.
Current faults
Current alarms
