Assembly Sheet For the Anchor Bolts
C-4 WILO EMU 3.0

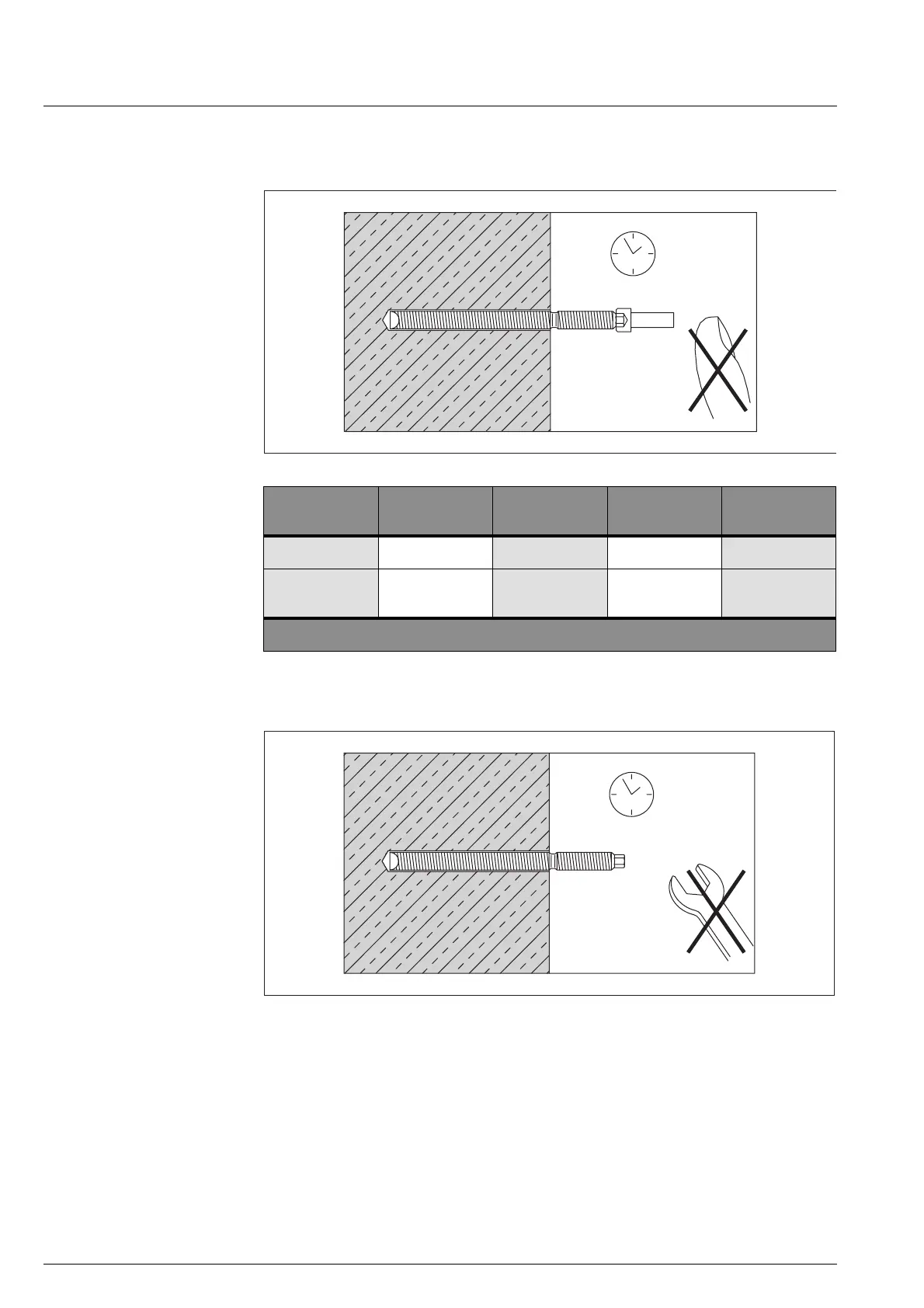

5 Carefully remove the insertion tool, do not remove a jammed insertion tool until t
rel
has
elapsed – see Table 2.
6 Let the anchor bolts harden – see t
cure
in Table 2. While curing, do not move or place any
load on the anchor bolt.
7 When the anchor bolts has hardened, clean the bearing surface of any impurities such as dirt,
adhesive resin or drilling dust. The part to be attached must be firmly fitted to the base and
may not be in any way loose. Then bolt the part to the base and tighten it to the specified
torque (see Table 1). To secure the nut, coat it with Loctite 2701 locking glue and re-tighten
Temp. in the
drill hole
>+ 20°C >+ 10°C > 0°C >- 5°C
Waiting time t
rel
8 min 20 min 30 min 1 hr
Waiting time
t
cure
20 min 30 min 1 hr 5 hr
If the background structure is damp, the waiting time must be doubled!
Table C-3: Hardening time
