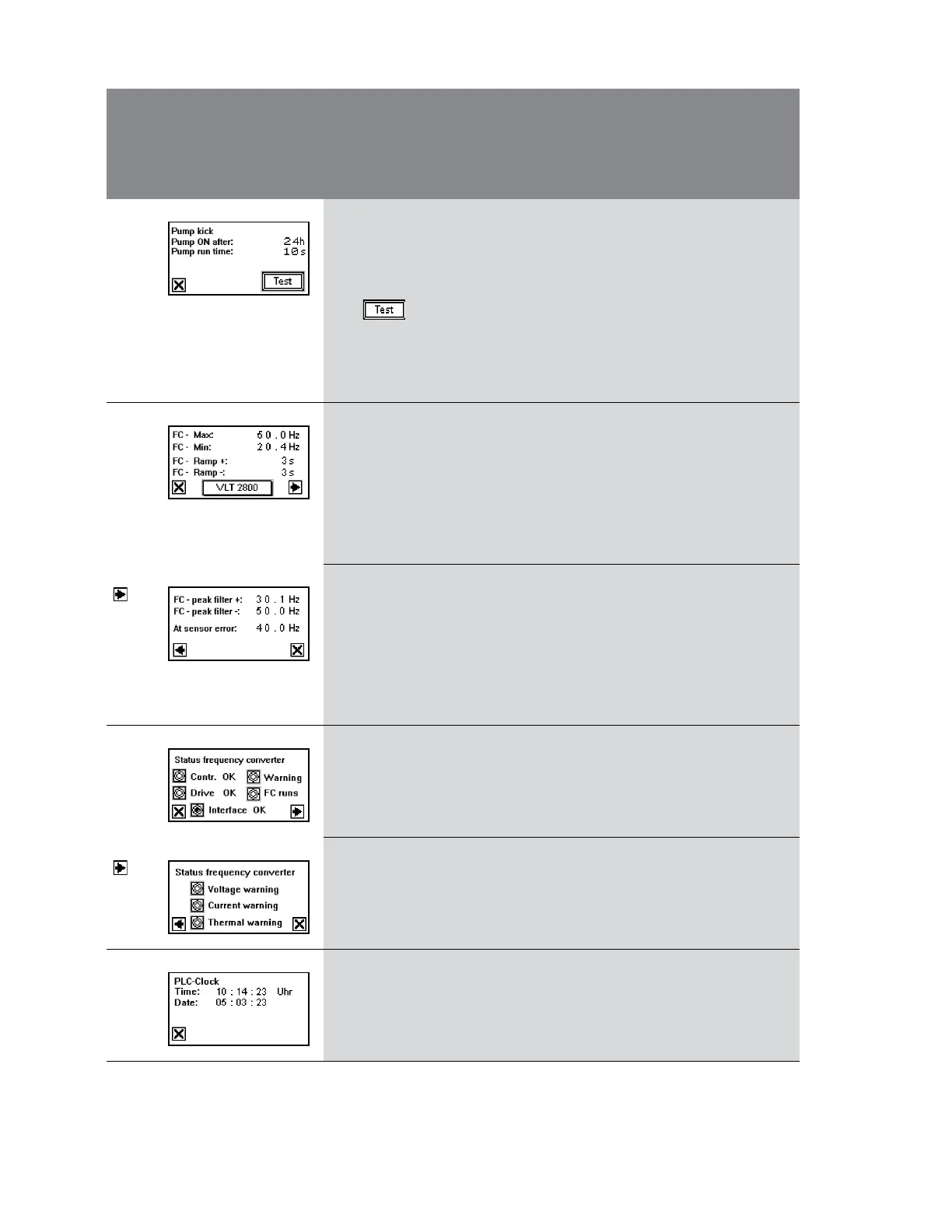

3.3.4.3 Pump kick * Adjustment of the pumpkick
intervall and the duration of
testrun.
Pumpkick can be forced by the
softkey:
Each stroke of the key will start
the pump for the adjusted
testrun duration. Pumps will be
count up.
Test run intervall [h]
Test run duration [s]
Test
**
**
*
6
10
-
3.3.5 FC parameter
* (Page 1)
Adjustment of the maximal and
minimal output frequencies
and ramp times of the frequen-
cyconvertors.
f
max
[Hz]
f
min
[Hz]
t
Ramp+
[s]
t
Ramp-
[s]
FC type
**
**
**
**
***
50
20
5
5
Installation
specific
* (Page 2)
Adjustment of FC-frequencies
for overpressure and pressure
break avoidance in the
moment of peakloadswitching
on and off.
Setting of fixed output fre-
quency for controlled pump in
case of sensorfault.
f
Peak+
[Hz]
f
Peak-
[Hz]
f
Not
[Hz]
**
**
**
20
50
40
3.3.6 FC status
* (Page 1 - status messages)
Display of statusmessages for
busconnection and frequency-
convertor.
none -
* (Page 2 – FC faults)
Display of alarm messages of
FC (Voltage, current, tempera-
ture)
none -
3.3.7 Time
* Adjustment of real time clock
(time, date)
Time [hh:mm:ss]
Date: [jj.mm.tt]
-
-
Menue
-No.
Display Description Parameter settings/
Functions
Factory-
settings
visible for changeable by
User 1 and higher: * User 1 and higher: *
Call User 2 and higher: ** User 2 and higher: **
by: Service: *** Service: ***
