s e C T i O n 3 . 2 — A l e x i A P r O P A g AT i O n D e l AY A D j u s T M e n T
geometric time domain alignment for different distance/ear height combinations. This
information is provided in the Propagation delay Tables in Section 8. By measuring the
ear height and the distance from the speaker to the listening position, you will be able
to align the system for your listening position.
Alignment Procedure
Locate the Alignment tables in Section 8. These tables contain critical information
that will guide you to position the Upper Arrays for optimized propagation delay ad-
justment.
The rear of the Upper Array assembly rests on a specific step in the Alignment
Block. The alignment tables also contains information on the front-to-back alignment of
the Upper Array. The position of the Upper Array is facilitated by the Alignment Block

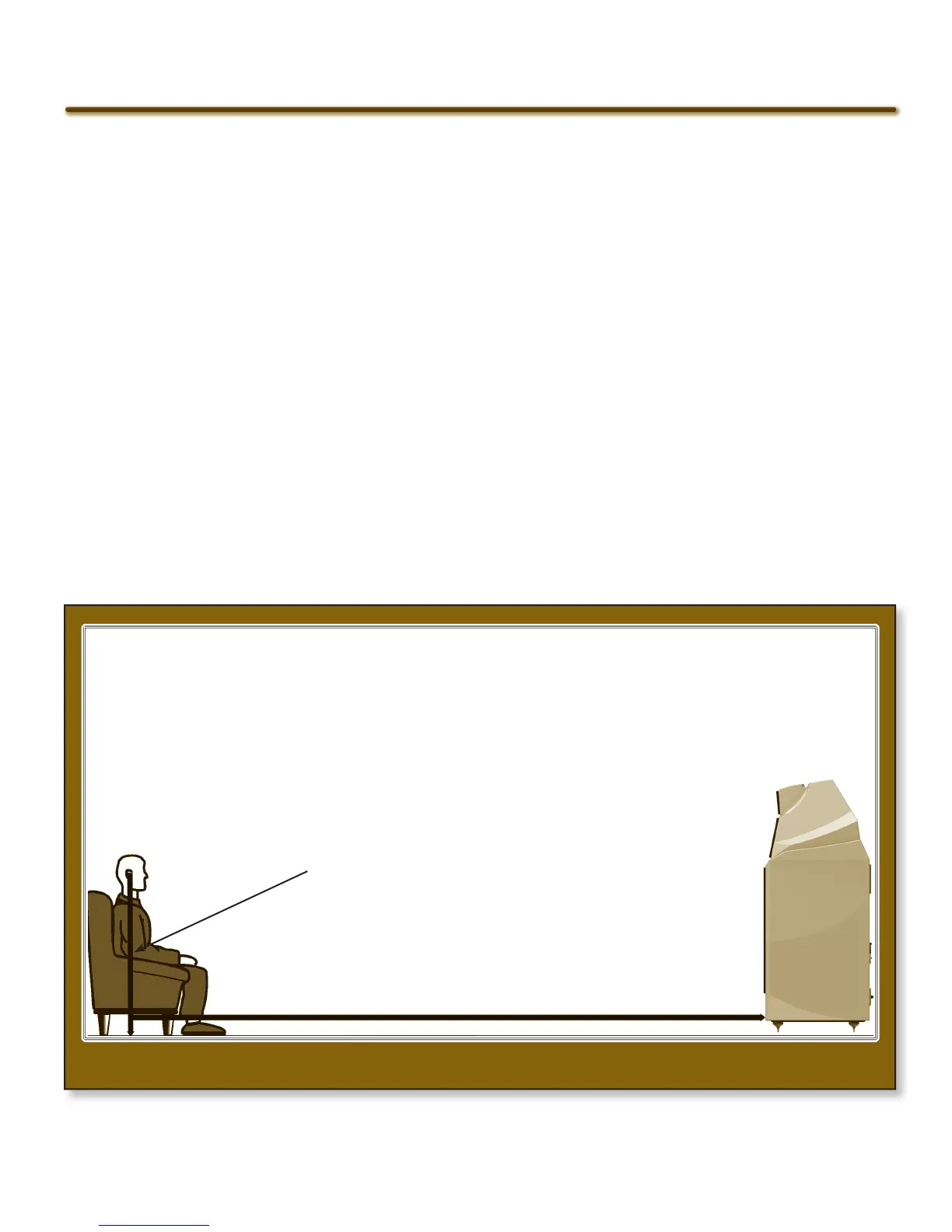

figure 6—MeAsure listening distAnce And eAr height�
eAr HeiGHt (meASUred from floor)
liSteninG diStAnce (meASUred on floor)
