Wilson Audio Specialties
NOTE: Take caution not to scratch the painted surface with the alignment spike as you
install the Upper Array.
Section 3.4—Tweeter Module Propagation Delay
Refer to Table Number 4 labeled “Alexia Tweeter Spike Detent Location.” Loosen
the oval bolt on the rear of the tweeter module enough that it can freely move front-to-
back.
5. Locate the number on
the plate on the upper
plane of the tweeter
that corresponds to
the detent indicated
in the table (see Fig-
ure 9).
6. Slide the tweeter such
that the downward
pointing spike of the
Array bridge aligns
with the appropriate
numbered detent.
7. Retighten the oval
thumb bolt, ensuring that the spike rests properly in its appropriate detent
(see Figures 9 and 11).
Section 3.5—Umbilical Connections
The correct connection of the two umbilicals to the Upper Array is as follows (see
Figure 12):
1. Locate the connection labeled “Mid Frequency.”
s e C T i O n 3 . 4 — T w e e T e r M O D u l e P r O P A g A T i O n D e l A Y

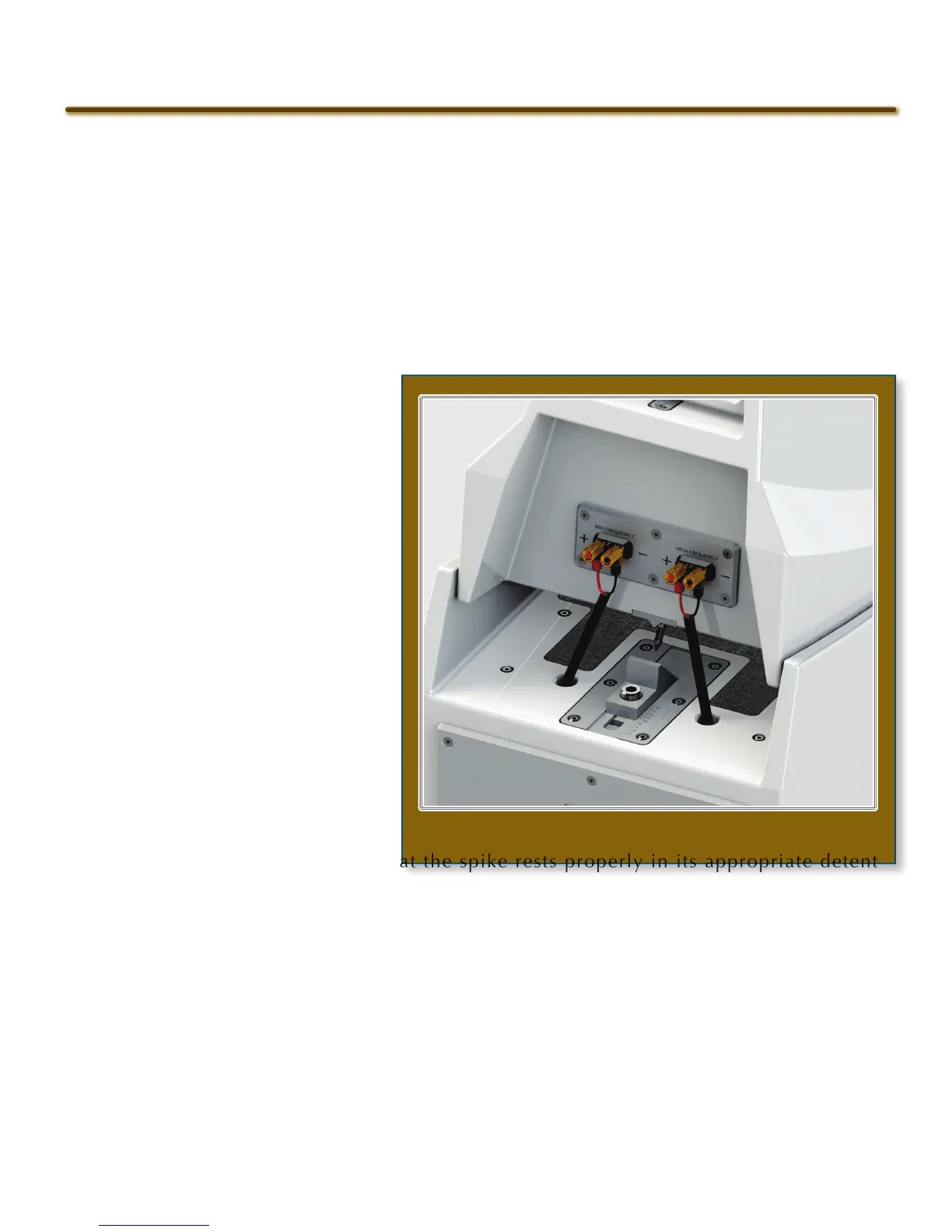

figure 12—cOnnect the uMbilicAls tO the twO upper ArrAY
inputs, Observing cOrrect pOlAritY�
