SERVICE

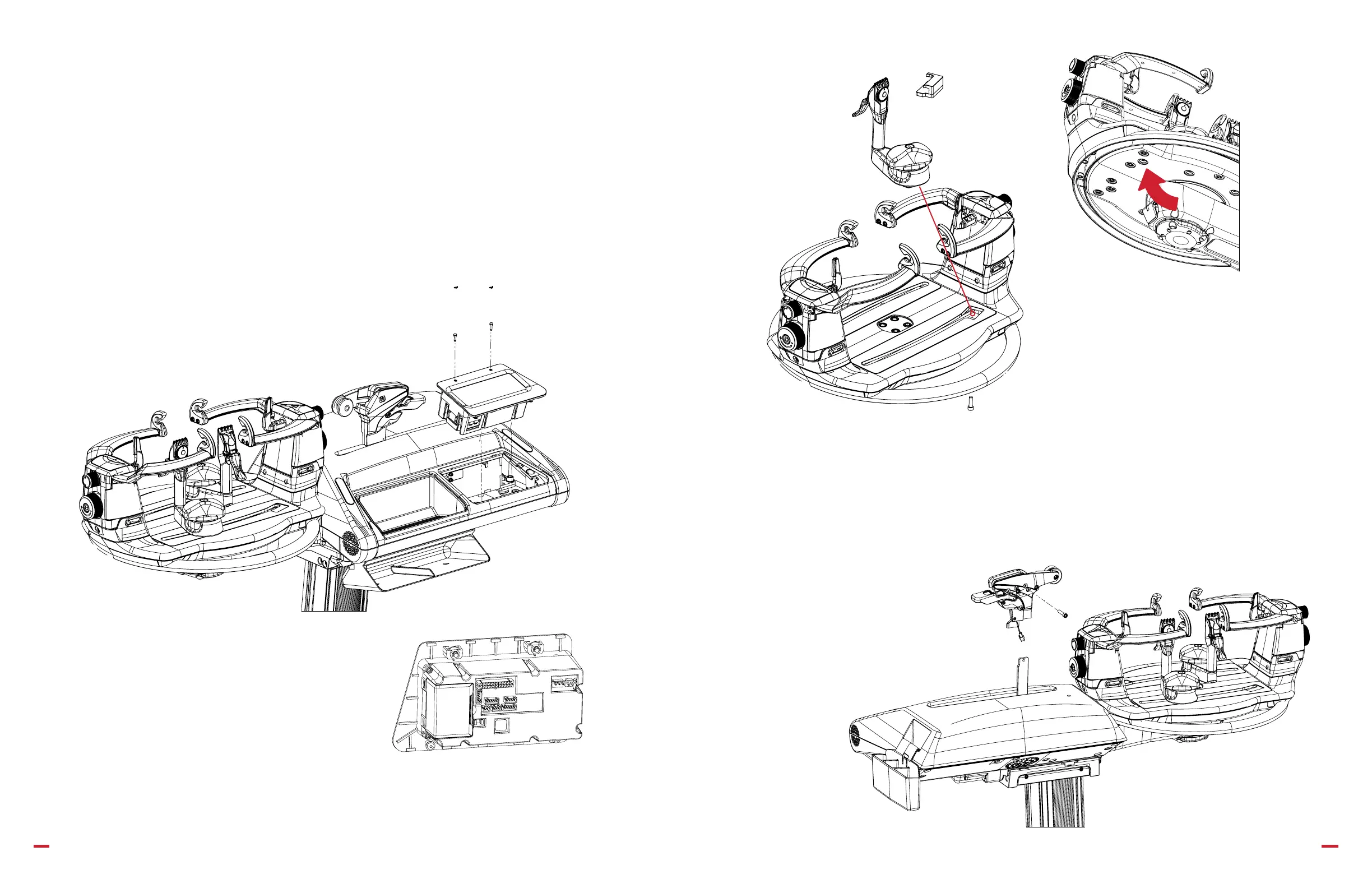

REPLACING THE ELECTRONIC BOX
If the electronics box fails, it can easily be removed and replaced. Please follow the below steps:
1. Remove the two screws in front of the bezel just above the touch panel with the included hex wrench.
2. Gently remove the electronics box. Be careful to not damage the electronics cords
3. Remove the four connectors.
4. To insert a new electronics box, reconnect the connectors.
5. Gently set the electronics box back into its location.
6. Insert the two screws on top of electronics box. Secure them tightly with
the included hex wrench.
REPLACING THE CLAMP BASE
1. Remove the screw directly under the black glide rail plug.
2. Remove the black glide rail plug from top of glide rail.
3. Gently slide the clamp base out of the glide rail.
4. Replace the black glide rail plug.
5. Insert and tighten the screw below the turntable.
REPLACING THE PULLER HEAD
1. Remove middle screw on back side of puller head
2. Gently lift puller head straight up. Pay attention to wire.
3. Disconnect connector.
4. Remove puller head.
5. Take new puller head from box.
6. Gently replace puller head.
7. Attach connector.
8. Replace middle screw on back side of puller.
9. Hide connector in receptacle below bristles.

Wilson Electronics BAIARDO L Specifications

Power

power supply	External switching, 100-240 volts (60 watts)

Materials and Accessories

main material	Aluminum (25% recycled)
included stringing tools	Starter clamp, Needle nose pliers, Cutter, Awl
included assembly tools	All necessary hex keys

Weight and Dimensions

assembled weight	43.6 kg / 96.2 lb
width	104 cm / 41 in
height at maximum extension	130.4 cm / 51.3 in
height at minimum extension	100.4 cm / 39.5 in
machine top box size	L118.5 x W53.5 x H50 cm / L46.5 x W21 x H19.5 in
machine top box weight	44.7 kg / 98.5 lb
machine base box size	L82 x W57.5 x H30 cm / L32.5 x W22.5 x H12 in
