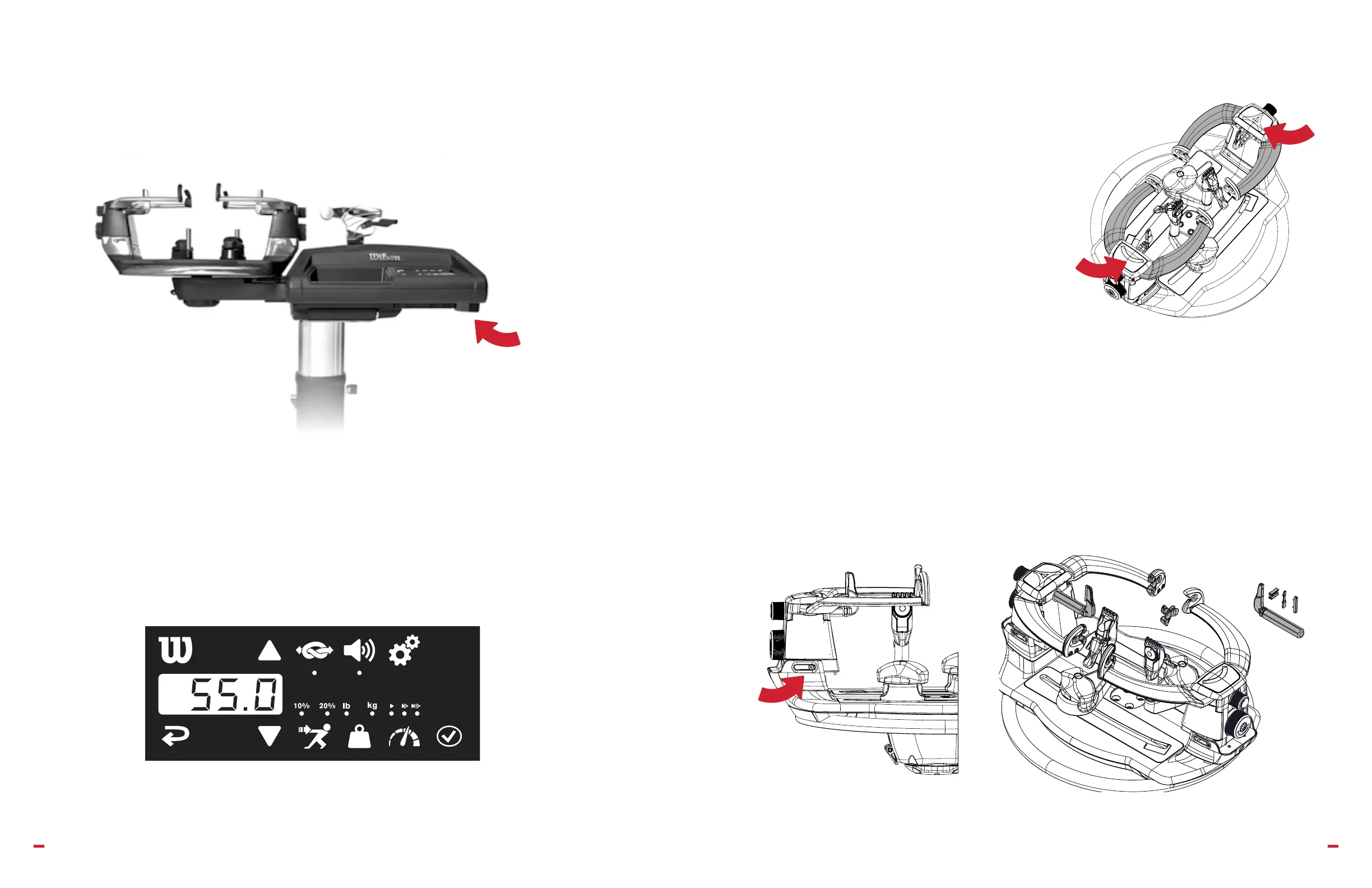

BAIARDO L OPERATION MANUAL BAIARDO L OPERATION MANUAL
5 6
START UP
The red power switch is located on the right underside of the machine.
POWER UP
While powering up, the display will count down:
9999 – 8888 – 7777 – 6666 – 5555 – 4444 – 3333 – 2222 – 1111 – 0000
Puller head will move back and forth one time on puller track.
Display will show:
BASICS
MOUNTING SYSTEM
• Six-point mounting system prevents frame distortion.
• There is a small distinction between the racquet head and
throat placement.
• Accommodates tennis, racquetball & squash rackets.
• Badminton racquets require use of the included adapter kit.
• Various sizes of inner support pads are included to adjust t.
• Knobs on mounting posts turn clockwise to tighten and
counterclockwise to loosen.
• Do not over-tighten.
BADMINTON ADAPTERS
Adapters are included and should be used when stringing badminton racquets.
Set-up:
• Press detents for mounting post to spring forward into badminton position.
• Place the 4 badminton adapters over the outer supports
as shown. Make sure the arrows are pointing up.
• Press detents and push mounting post backward to revert
to tennis position.
RACQUET
HEAD
PRESS
DETENTS IN
RACQUET
THROAT

Wilson Electronics BAIARDO L Specifications

Power

power supply	External switching, 100-240 volts (60 watts)

Materials and Accessories

main material	Aluminum (25% recycled)
included stringing tools	Starter clamp, Needle nose pliers, Cutter, Awl
included assembly tools	All necessary hex keys

Weight and Dimensions

assembled weight	43.6 kg / 96.2 lb
width	104 cm / 41 in
height at maximum extension	130.4 cm / 51.3 in
height at minimum extension	100.4 cm / 39.5 in
machine top box size	L118.5 x W53.5 x H50 cm / L46.5 x W21 x H19.5 in
machine top box weight	44.7 kg / 98.5 lb
machine base box size	L82 x W57.5 x H30 cm / L32.5 x W22.5 x H12 in
