Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
Or email: tech@wilsonelectronics.com Hours: 7am to 6pm MST.

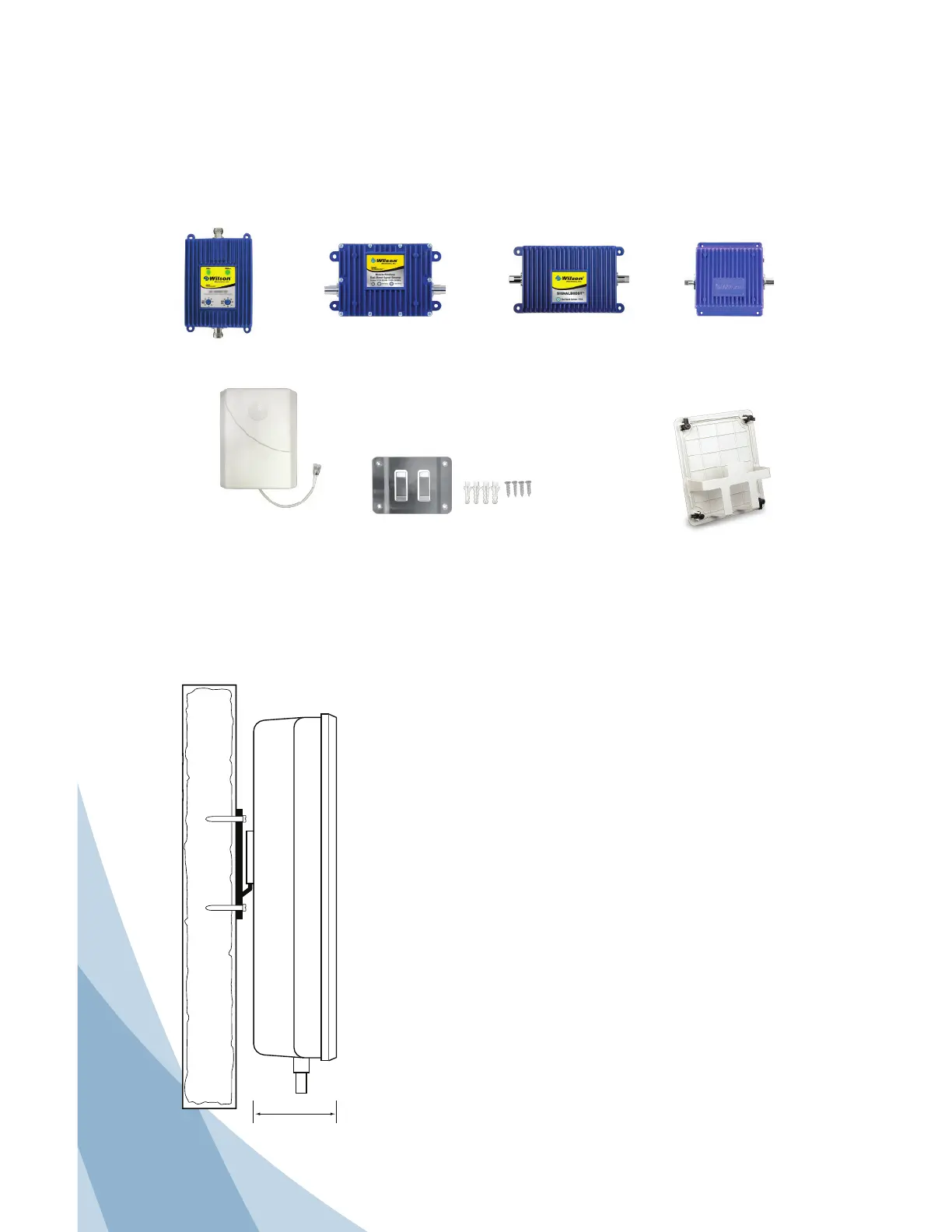

Inside this Package:
Wide-Band
Panel Antenna
(301135, 301147,
301155)
In-Wall Mounting
Bracket
(901123)
Optional:
Antenna Installation Kit
Wall Mount
Wilson Signal Boosters Amplify Coverage
When used in conjunction with your antenna, a Wilson Electronics Signal Booster
can improve your cell phone and laptop data card coverage area more than 20
times. Wilson Electronics manufactures a wide range of Wireless and Direct-
Connect Signal Boosters for mobile, M2M or in-building use. See your dealer for
details or visit www.WilsonElectronics.com.
Inside Antenna Wall Installation
Find the desired location for the Panel Antenna.
Verify that the Panel Antenna and the Outside
Antenna have the necessary separation (see Signal
Booster instructions for requirements).
For optimum results, the antenna should be
mounted a minimum of 6 feet from the floor. Place
the template where the Panel Antenna is to be
installed.
Attach the template with masking tape or other
suitable adhesive tape.
Utilize Wall Mount Bracket (see Figure 1 on page
2) as your template. Drill out the four holes for
the screws in the wall, using a 3/16 size drill bit,
following your template. Install wall anchors provided
with a small hammer. Place the mounting bracket
over the wall anchors, insert the screws and tighten.
Slide the Panel Antenna onto the wall mount
bracket.
4.572 cm
1.80 in.
(Sold Separately)
