How It Works
Wilson Electronics Wide Band Log Periodic Directional Antenna will collect the cell tower
signal and send it through the cable to a signal booster, cell phone or cellular data card.
When the cell phone or cellular data card transmits, the signal is transferred to a signal
booster or directly to the antenna and broadcast back to the cell tower.
Package Contents

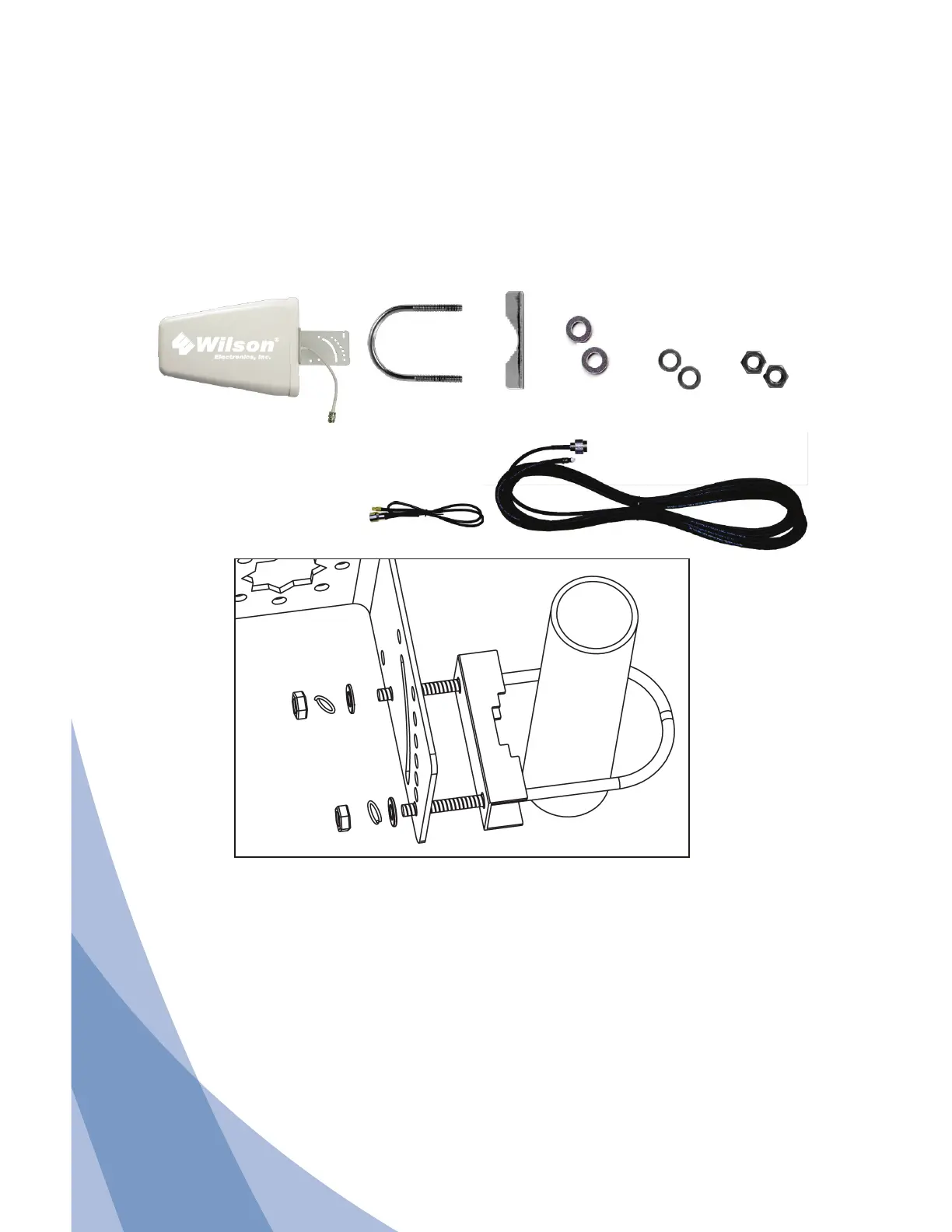

(A) Wide Band Log Periodic Directional Antenna & L Bracket, (B) 2 - U-Bolts, (C) 2 - Pipe
Brackets, (D) 4 - 1/4” Washers ,(E) 4 - 1/4” Split-Lock Washers, (F) 4 - 1/4”-20 nuts.
• 359933, 20” RG174 Cable with
FME male to MCX Connector.
• 951137, 30” RG58 Cable.
308412 additional kit contents:
AB ECF
D
1 – Install U-Bolt (B) on pole.
2 – Slide Pipe Clamp (C) over U-Bolt (B) Flat side away from pipe.
3 – Slide antenna bracket (A) onto U-Bolt (B) in desired location.
4 – Install Flat washer (D), split lock washer (E) and nut (F), tighten as appropriate.
Note: Antenna may be installed on a variety of pipe angles, insure antenna is
pointing at cell tower and is vertical with the drip hole at the bottom.
Note: A second U-Bolt assembly has been included to strengthen antenna mounting
in windy areas repeat steps 1 thru 4 to install.
Antenna Mounting Instructions
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
