DRIVE X OTR FLEET CELL SIGNAL BOOSTER
9
______

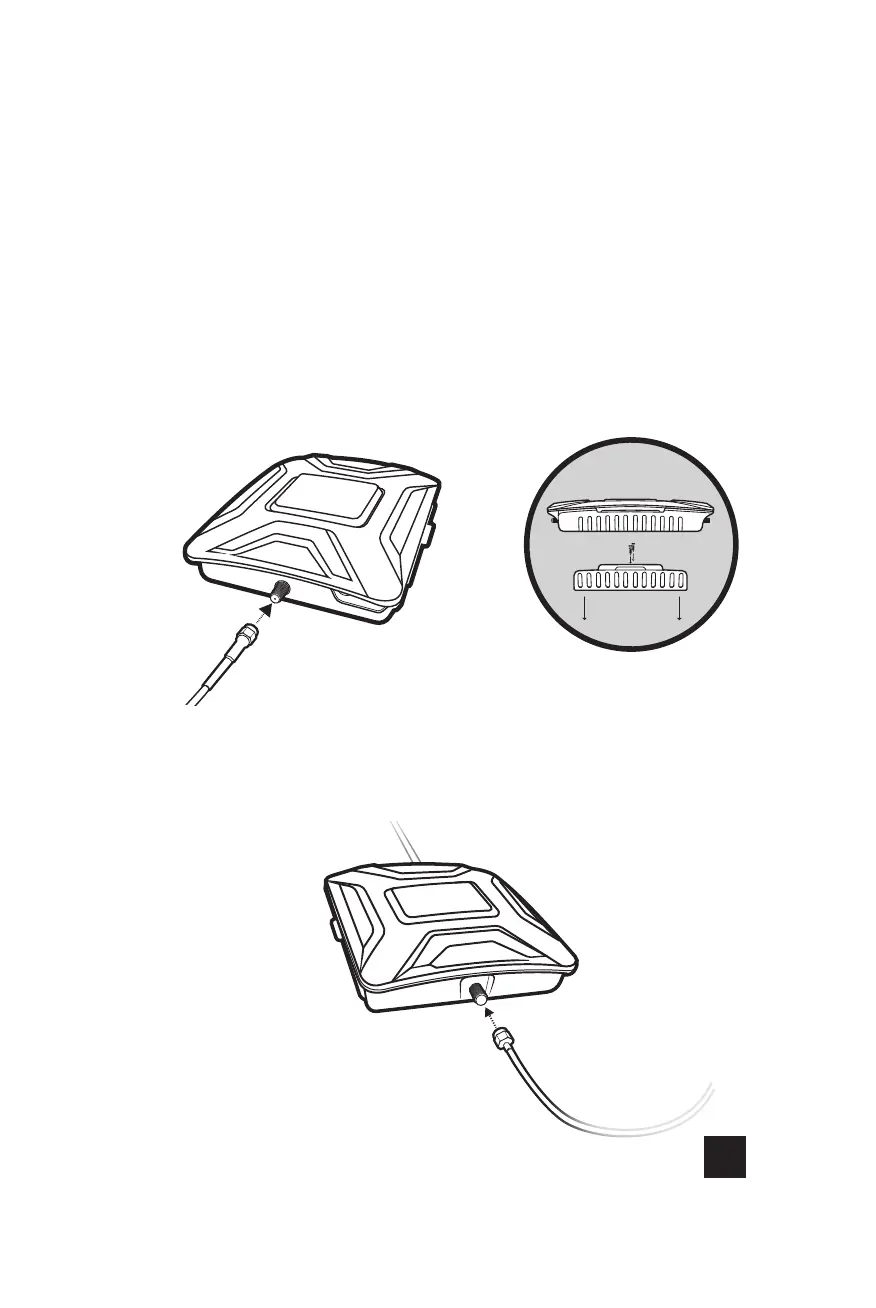

Step 6: Connect Coax Cables
To Booster
Connect the cable from the Outside Antenna to the port
labeled “Outside Antenna” on the Drive X booster.
Connect the cable from the In-Vehicle Antenna to the port
labeled “Inside Antenna” on the booster.
from Outside Antenna
from Inside Antenna
NOTE: Bracket can be used to fasten booster in a specific location if desired.
