Mount Base with 30’ Power/Control Cable
Mounting Screw (20)
Reflector
30’ Black Coax Cable
Interface Box
Power Supply
24” AC power cord
Cable Entry Plate
5/16” Reflector Bolt (4)
5/16” Reflector Nut (4)
Interface Box

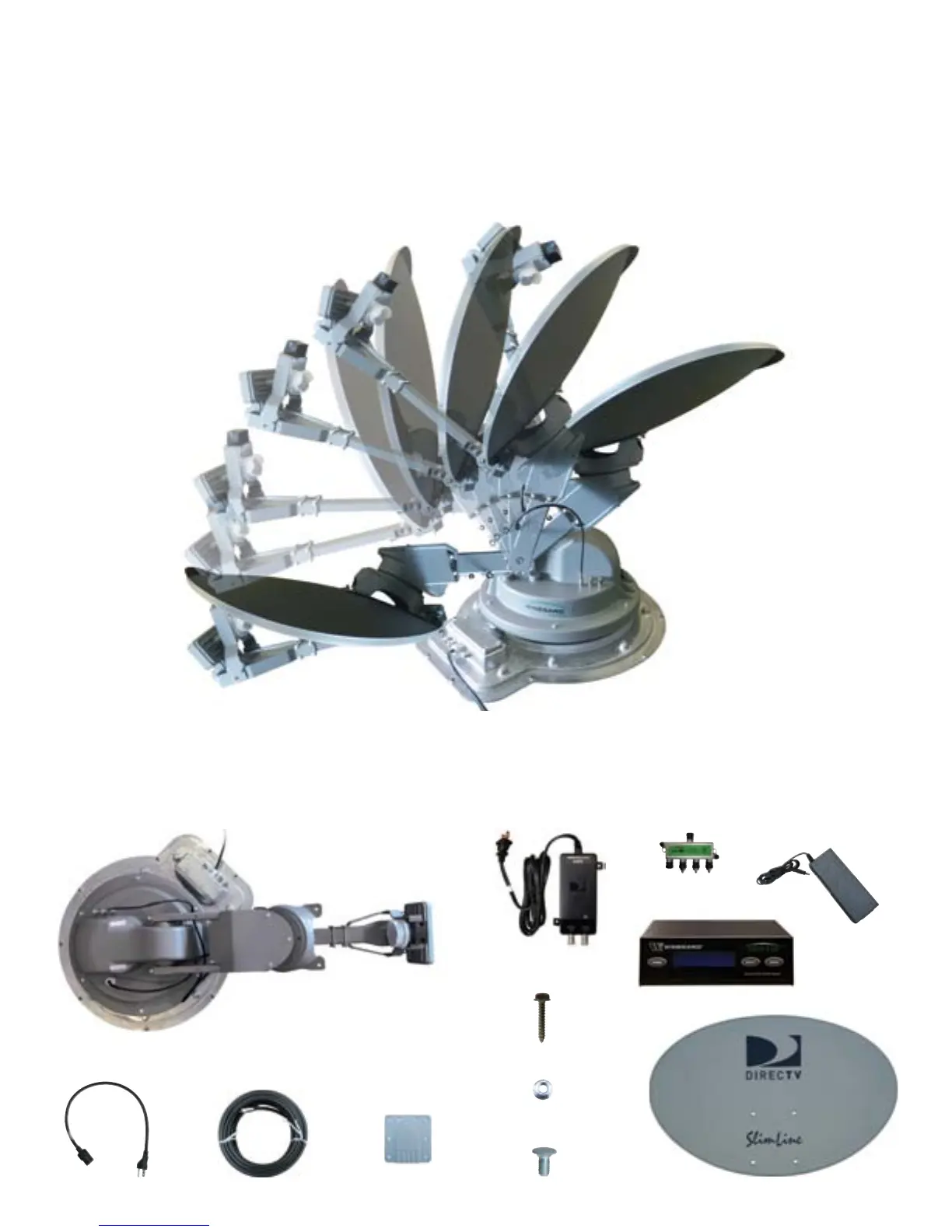

FIGURE 3. Range of motion for TRAV’LER SWM antenna
Splitter21V SWM Power Inserter
2
Clearance Requirements
The arm of the TRAV’LER antenna extends 33” from the center of the base and may operate only 10” above the
surface to which the TRAV’LER antenna is mounted. To ensure you have adequate clearance for the TRAV’LER
antenna to safely operate, check that there are no obstructions taller than 10” within 33” of the center of the base.
Also, check that there are no obstructions (such as tree limbs) above the antenna that will prevent it from raising.
At its highest point, the antenna will extend to 37.5” above the roof to which it is mounted (see fig. 3).
