Marine Installation Manual 2021-08 5-5
5 Engine Automation
5.4 Propulsion control systems
X72DF

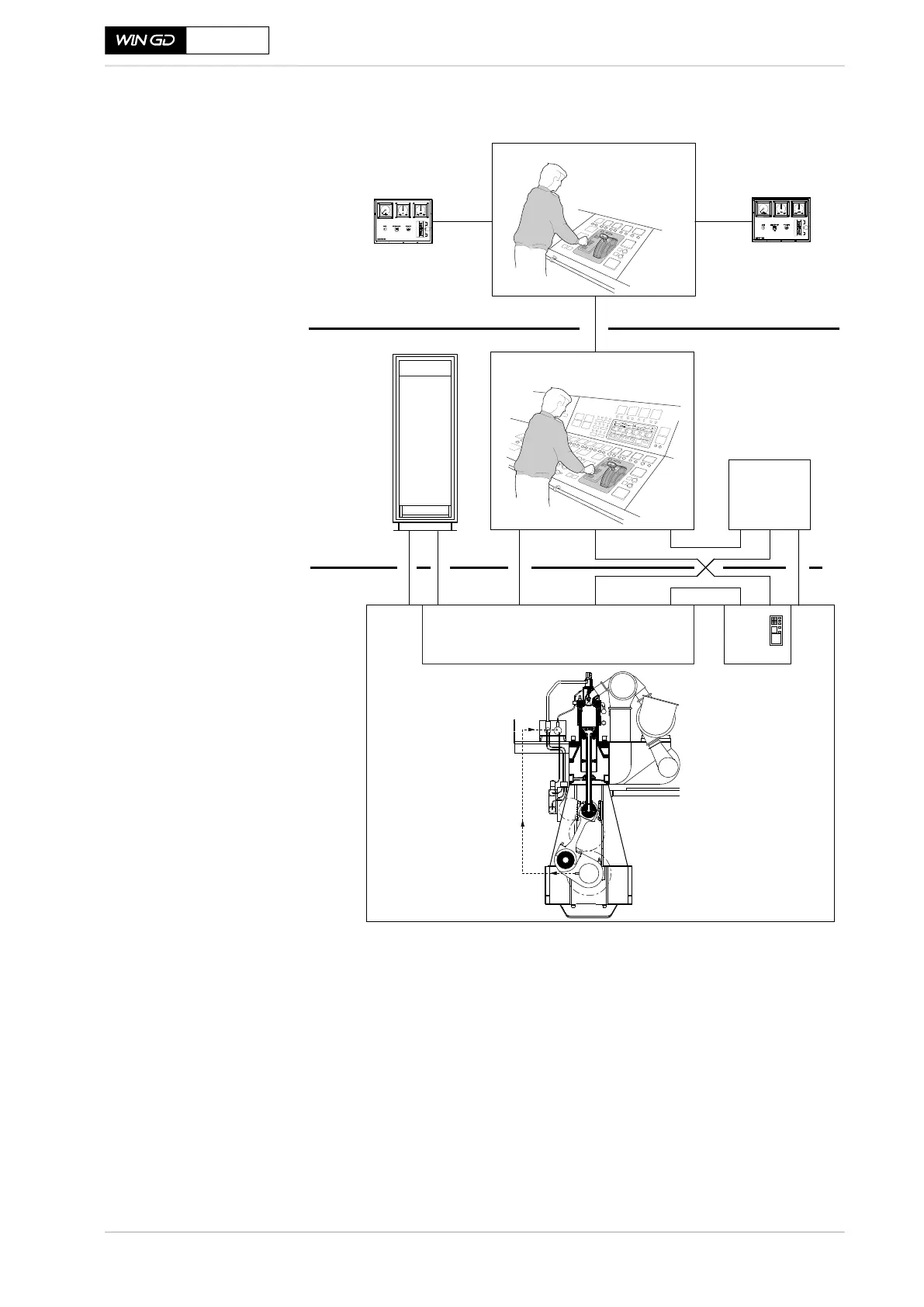

Figure 5-3 Remote control system
The electronic modules are in most cases built to be placed either inside the ECR
console, or in a separate cabinet to be located in the ECR. The operator panels
are to be inserted in the ECR console’s surface.
Ship Alarm
System
Local panel
Remote Control
& Safety Control
Engine Control System
Engine room
Control room
Bridge wing (option) Bridge wing (option)
Bridge
Remote Control System
WinGD
