Marine Installation Manual 2021-08 1-5
1 Engine Summary
1.2 Primary engine data
X72DF
1.2.2 Principal engine dimensions and weights

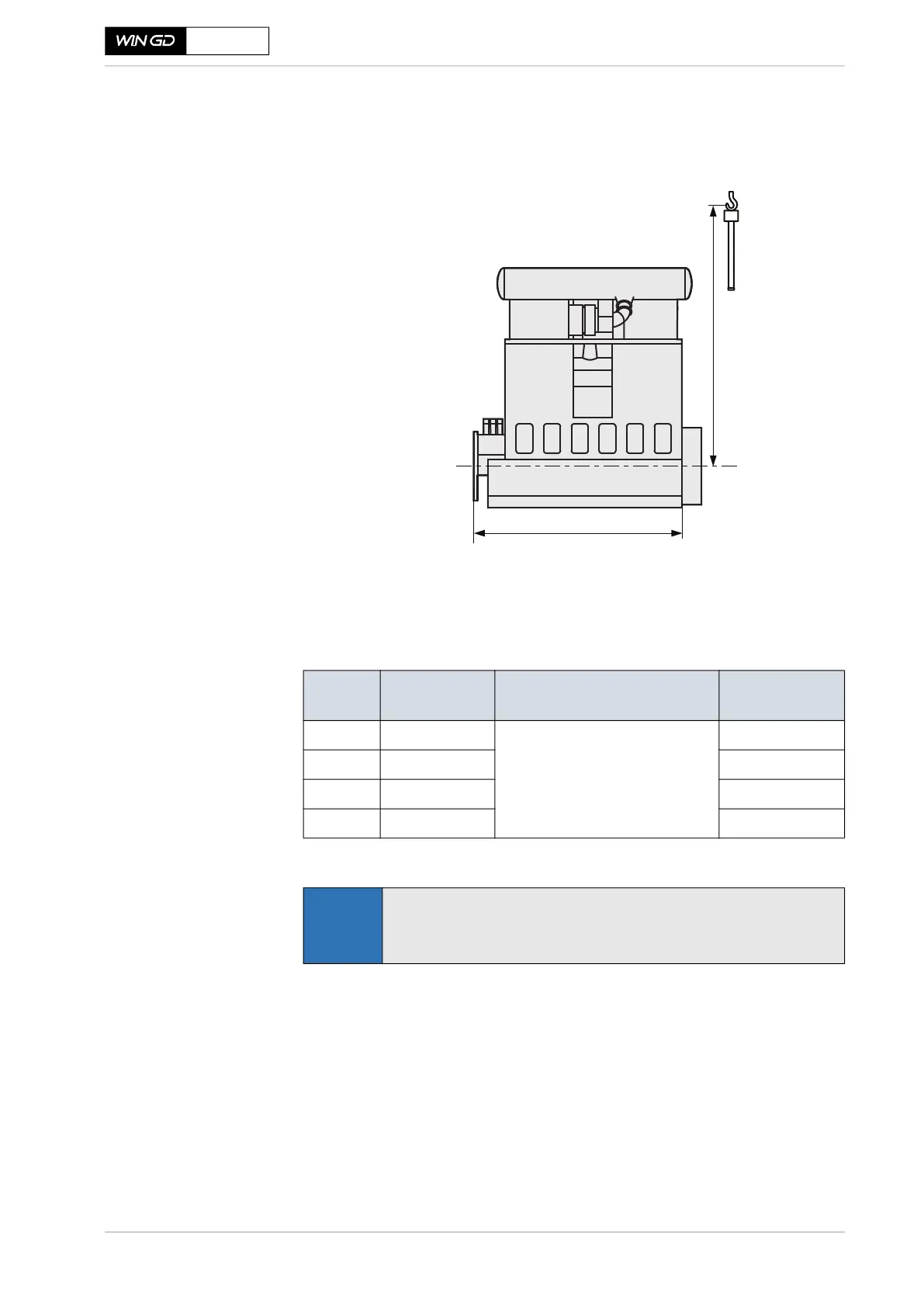

Figure 1-2 Principal engine dimensions
For more details about sizing, specific dimensions and masses, see section
3.1 Engine dimensions and masses,  3-1.
Table 1-4 Principal engine dimension values
No. of
cylinders
Length A [mm]
Piston dismantling height F1
a)
(crank centre - crane hook) [mm]
a) For F2 and F3 (piston removal with double-jib crane) see Table 3-1,  3-1.
Dry weight [t]
5 8,085
13,655
481
6 9,375 561
7 10,665 642
8 11,960 716
NOTE
The dimensions and masses provided in the above table are not
binding. For prevailing data refer to the relevant drawings, which are
updated on a regular basis.
