IB70 Motherboard User Manual
25

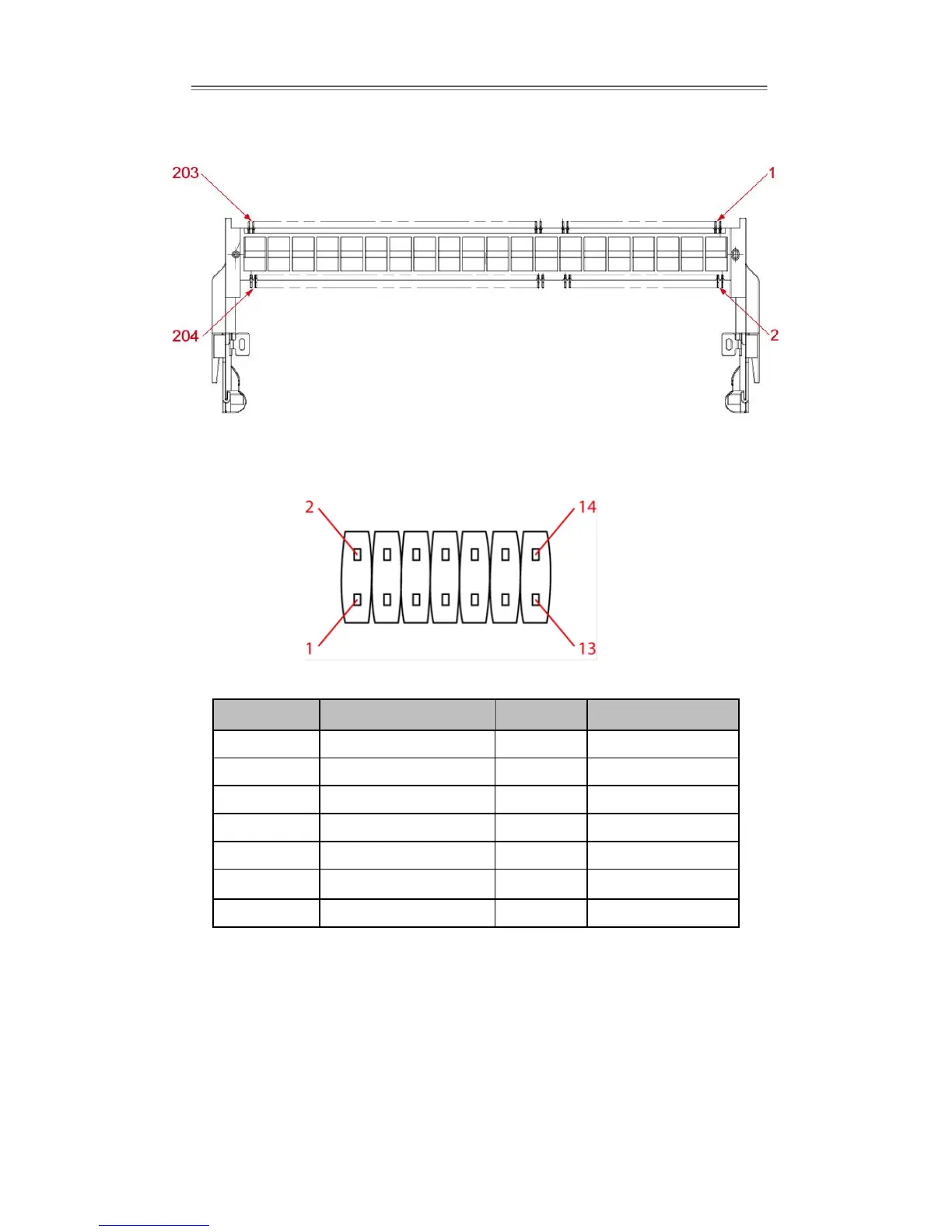

DIMM2: DDR3
DIDO1: GPIO
Pin №
Name
Pin №
Name
1
GND
2
+5V
3
DOUT3
4
DOUT1
5
DOUT2
6
DOUT0
7
DINT3
8
DINT1
9
DINT2
10
DINT0
11
DIN4
12
DOUT4
13
DIN5
14
DOUT5
