Winmate IB70 - J2: Dp

IB70 Motherboard User Manual
26

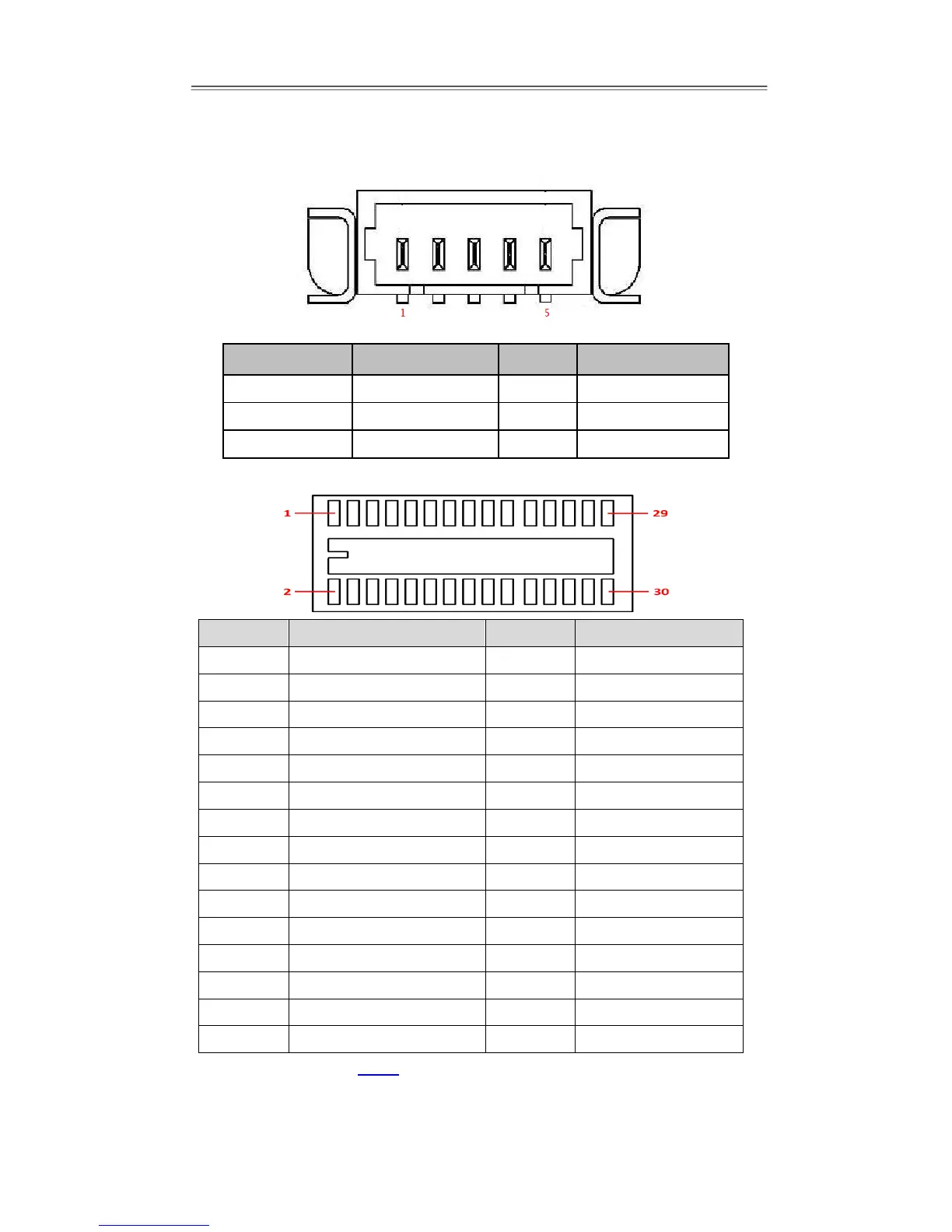

J1: VRD Debug
J2: DP
Pin №
Name
Pin №
Name
1
DDI1_AUX_DN
2
SMB_DATA
3
DDI1_AUX_DP
4
SMB_CLK
5
GND
6
GND
7
DDI1_TX3_DN
8
NC
9
DDI1_TX3_DP
10
NC
11
GND
12
EDP_HPD
13
DDI1_TX2_DN
14
GND
15
DDI1_TX2_DP
16
GND
17
GND
18
GND
19
DDI1_TX1_DN
20
GND
21
DDI1_TX1_DP
22
LCDVDD
23
GND
24
LCDVDD
25
DDI1_TX0_DN
26
LCDVDD
27
DDI1_TX0_DP
28
LCDVDD
29
GND
30
NC
Note: Please refer to CON1 settings to select POWER RATING
Pin №
Name
Pin №
Name
1
+3.3V
2
DATA
3
CLOCK
4
RESET
5
GND
