IB70 Motherboard User Manual
37

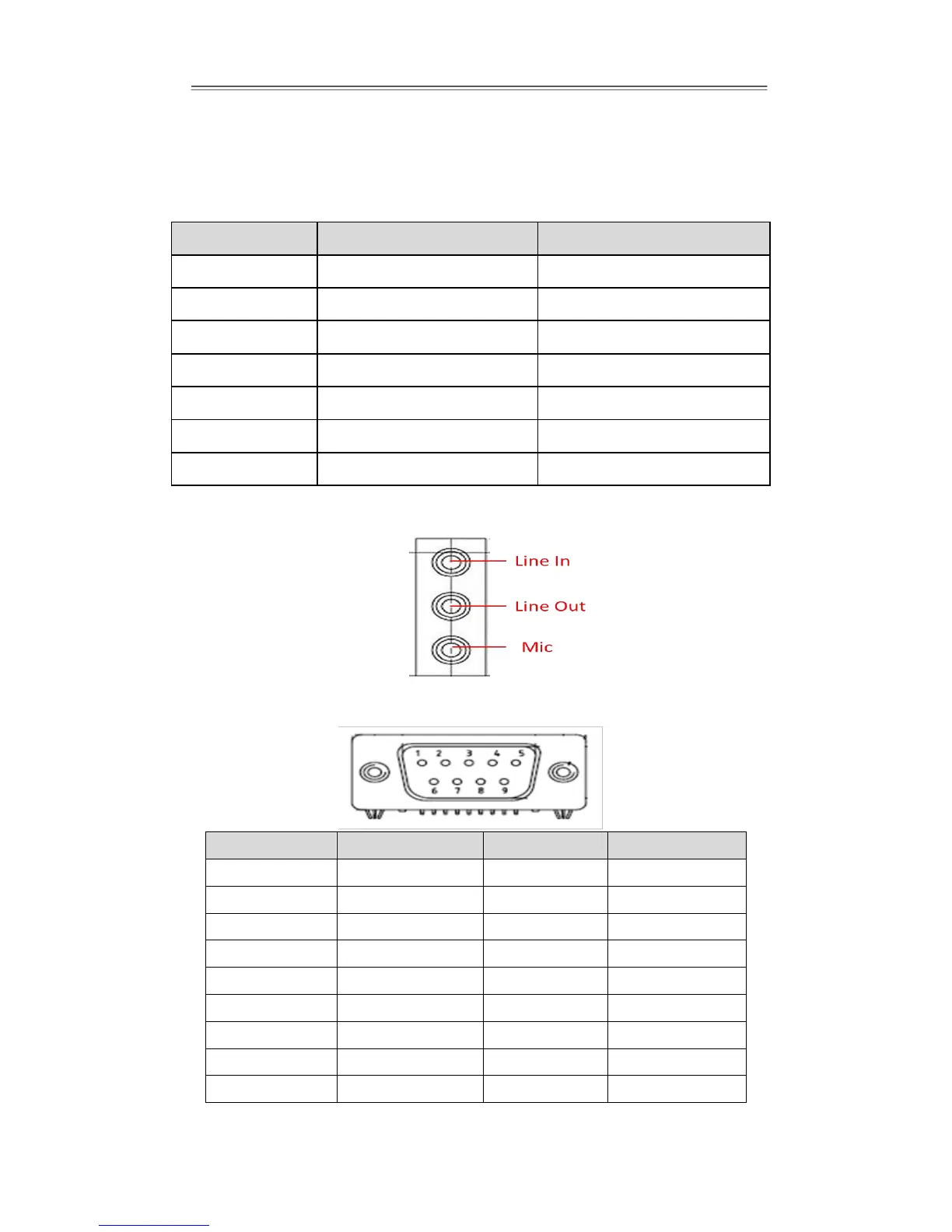

2.5.2 I/O Side Setting Description
The table below shows each of I/O side connectors and its functions.
Label
Function
Note
AUDIO
Line In/Line Out/Mic
AUDIO
COM1
Serial port (RS232/422/485)
D-Sub 9
COM3/ COM4
Serial port (RS232/422/485)
D-Sub 9
LAN1, LAN2
Gigabit Ethernet
RJ45+LED
PS/2
Mouse/Keyboard
MiniDIN-6P
USB
USB 2.0 / USB 3.0
USB Type A
VGA
Video Graphics Array
D-Sub 15
Audio: Line In/Line Out/Mic
COM1: D-Sub 9
Pin №
RS232
RS422
RS485
1
DCD
TxD-
D-
2
RXD
TxD+
D+
3
TXD
RxD+
NC
4
DTR
RxD-
NC
5
GND
GND
GND
6
DSR
NC
NC
7
RTS
NC
NC
8
CTS
NC
NC
9
RI
NC
NC
