IB70 Motherboard User Manual
36

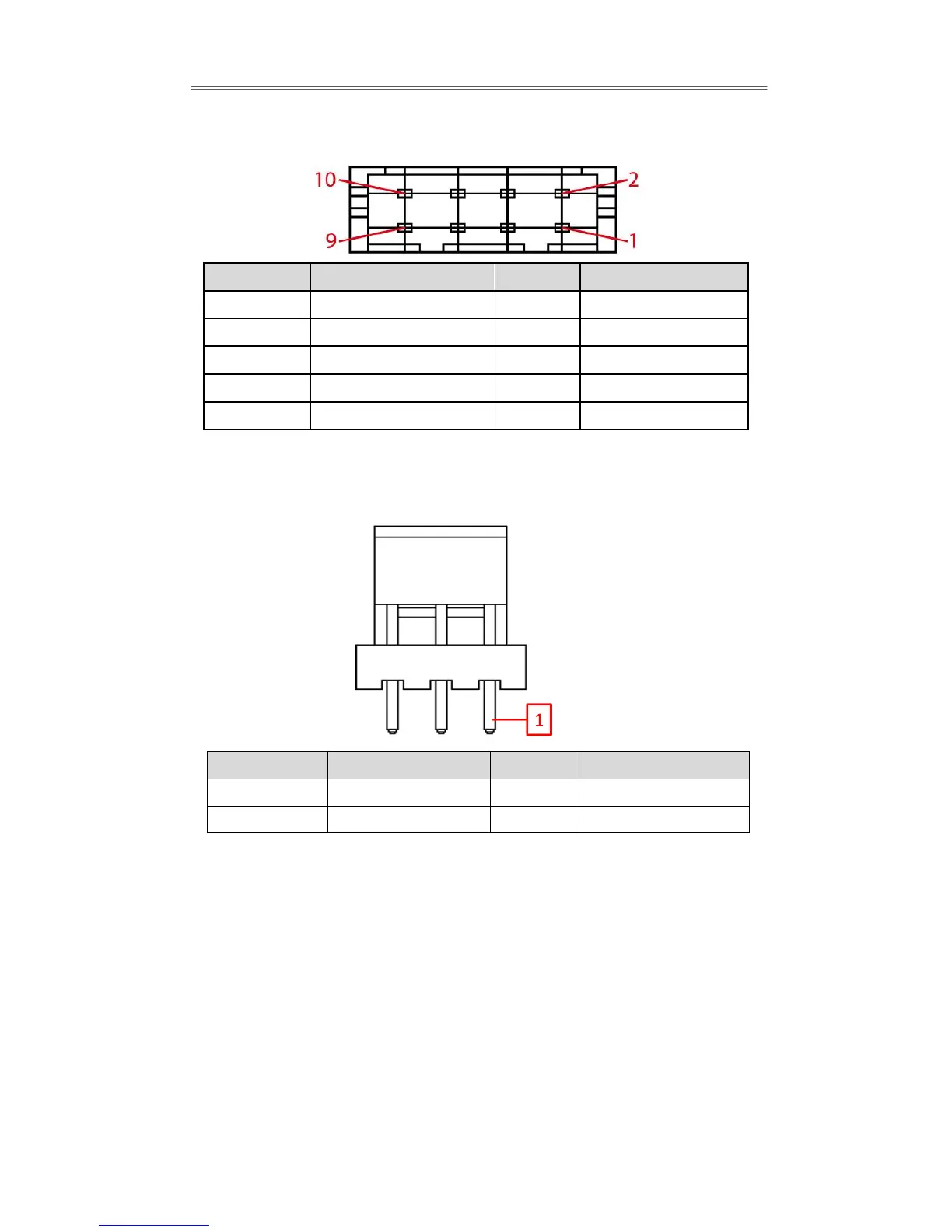

Panel1: OSD Membrane Control
Pin №
Name
Pin №
Name
1
+5V
2
+3.3V
3
GND
4
HDD_LED
5
PWRBTN#
6
GND
7
GND/ Backlight ADJ+
8
Reset
9
NC/Backlight ADJ-
10
+5V
NOTE: Backlight ADJ+ / Backlight ADJ- optional functions
SYS_FAN: SYS_FAN1
Pin №
Name
Pin №
Name
1
GND
2
+12V
3
SENSE
