IB70 Motherboard User Manual
28

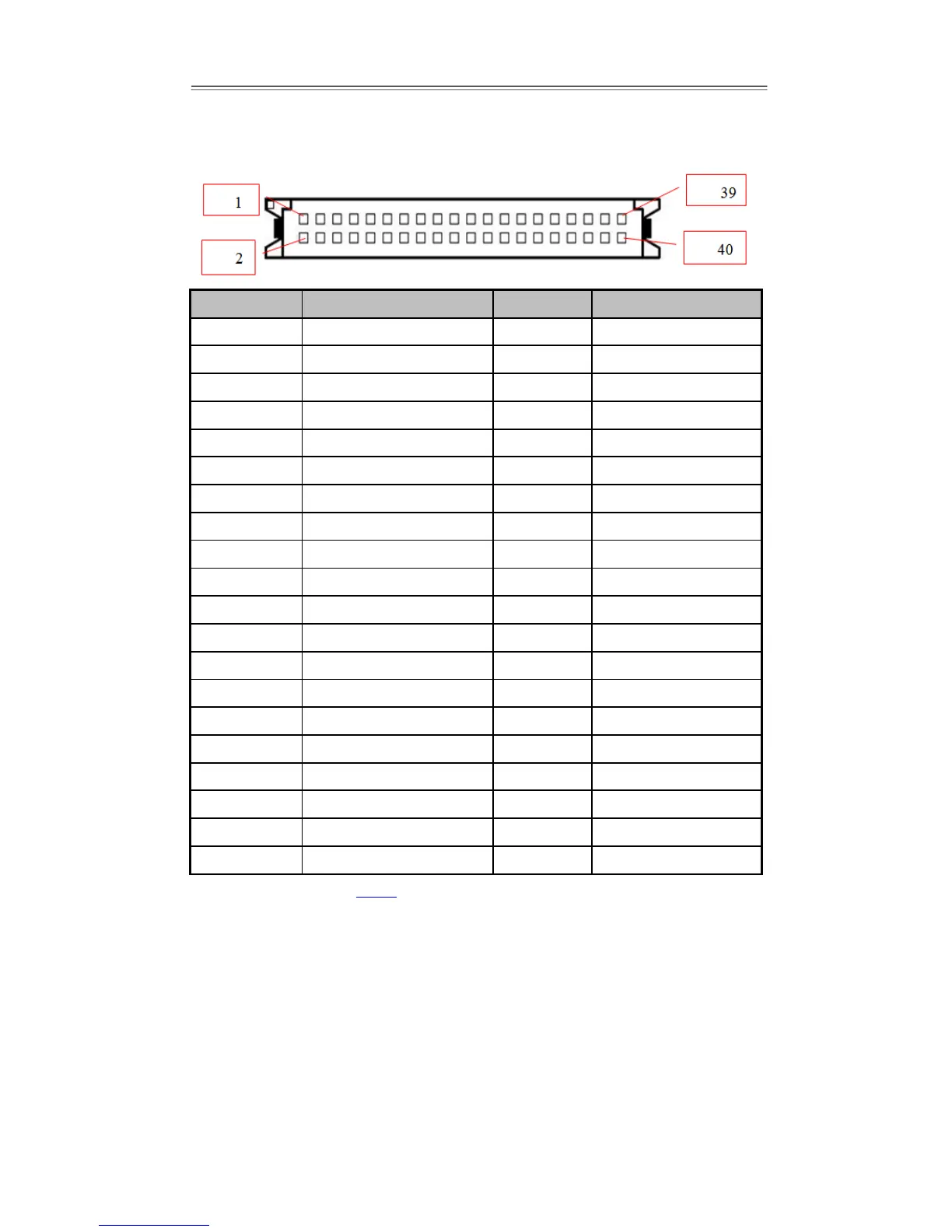

LVDS1: LVDS
Pin №
Signal Name
Pin №
Signal Name
1
LCDVDD
2
LVDS0_TX0_N
3
LCDVDD
4
LVDS0_TX0_P
5
LCDVDD
6
LVDS0_TX1_N
7
GND
8
LVDS0_TX1_P
9
GND
10
LVDS0_TX2_N
11
GND
12
LVDS0_TX2_P
13
GND
14
LVDS0_CLK_N
15
GND
16
LVDS0_CLK_P
17
GND
18
LVDS0_TX3_N
19
GND
20
LVDS0_TX3_P
21
GND
22
LVDS1_TX0_N
23
GND
24
LVDS1_TX0_P
25
GND
26
LVDS1_TX1_N
27
GND
28
LVDS1_TX1_P
29
GND
30
LVDS1_TX2_N
31
GND
32
LVDS1_TX2_P
33
GND
34
LVDS1_CLK_N
35
GND
36
LVDS1_CLK_P
37
GND
38
LVDS1_TX3_N
39
GND
40
LVDS1_TX3_P
* Note: Please refer to CON1 settings to select POWER RATING
