IB70 Motherboard User Manual
39

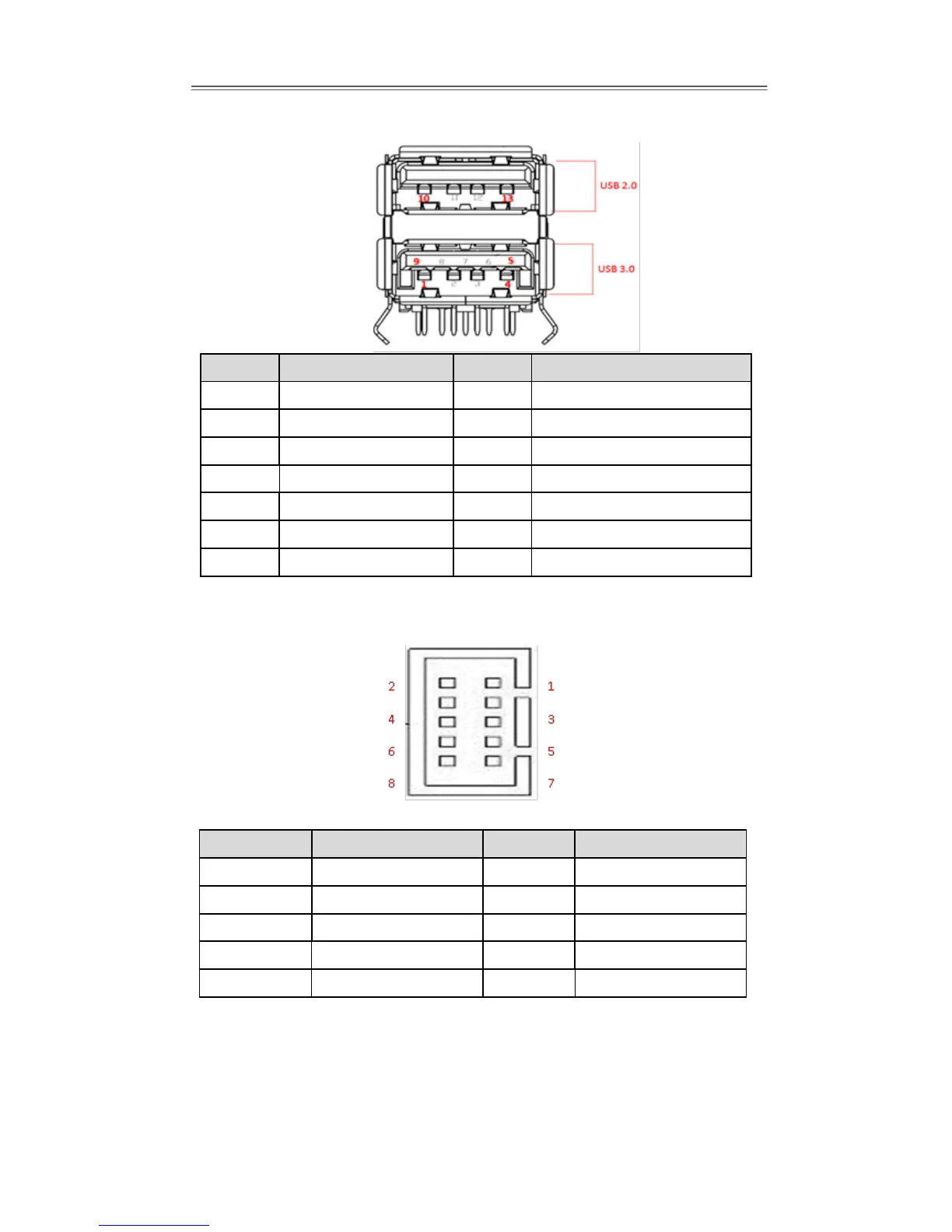

2 USB: USB 2.0 / USB 3.0
Pin №
Name
Pin №
Name
1
+5V
2
USB_D-
3
USB_D+
4
GND
5
STDA_SSRX-
6
STDA_SSRX+
7
GND_DRAIN
8
STDA_SSTX-
9
STDA_SSTX+
10
+5V
11
USB_D-
12
USB_D+
13
GND
VGA: Video Graphic Array
Pin №
Name
Pin №
Name
1
DDC_DATA
2
+5V
3
DDC_CLOCK
4
RED
5
Horizontal Sync
6
GREEN
7
Vertical Sync
8
BLUE
9
GND
10
GND
