ELECTRICAL GROUP
12V BODY WIRING

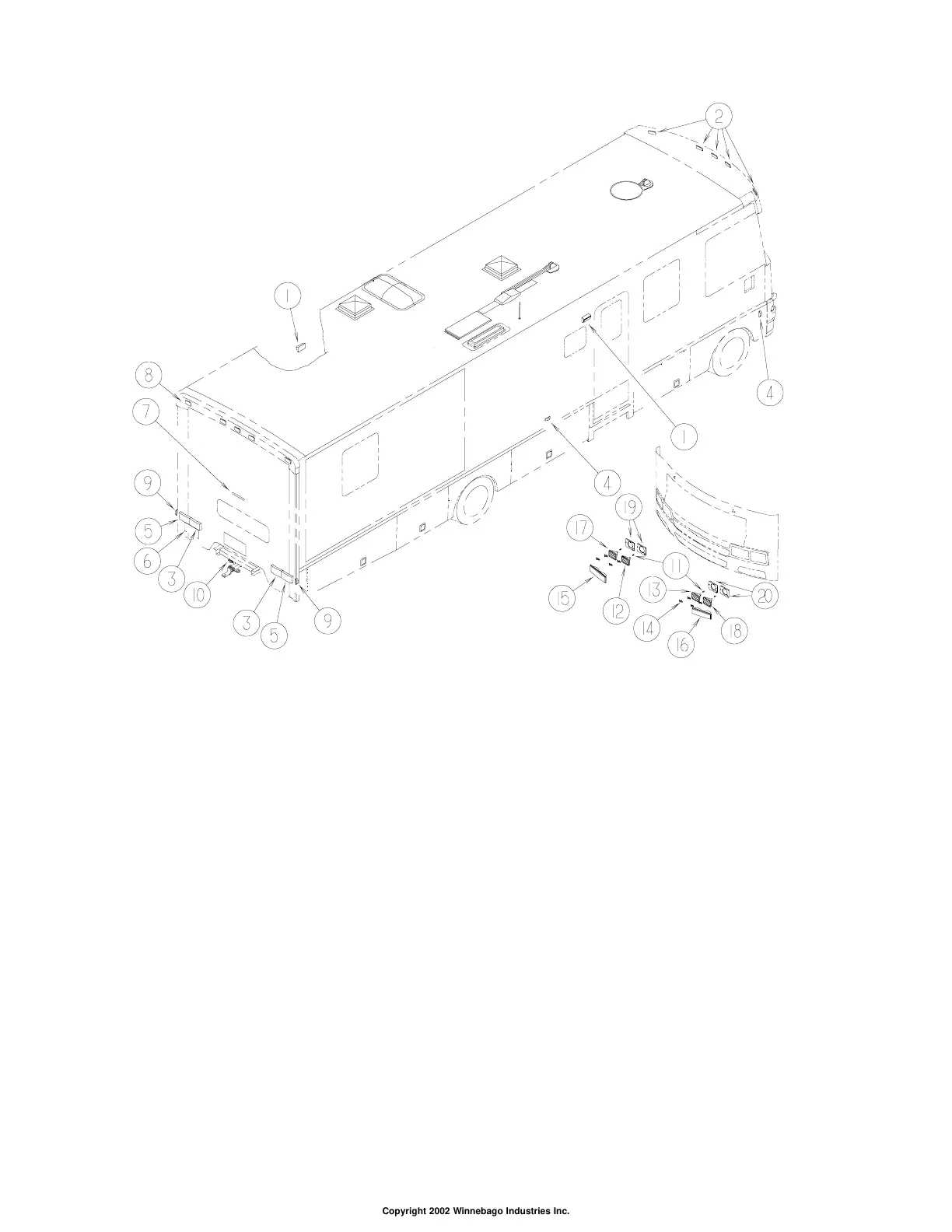

KEY PART NUMBER U/M DESCRIPTION
1* 097917-01-06A EA LIGHT - PORCH - BRIGHT WHITE - US
008215-01-000 EA BULB - 12 VOLT - #1003 - .94 AMP
1* 008089-02-000 EA LIGHT - PORCH - RECESSED - CANADIAN - CANADIAN
008214-01-000 EA BULB - 12 VOLT - #67 - .59 AMP
2 102520-01-000 EA LIGHT - CLEARANCE - W/O SOCKET/HOUSING - AMBER
2 036196-01-000 EA BULB - 12V - #194 - .27 AMP - BAYONETTE
2 102541-01-000 EA GASKET - CLEARANCE LIGHT
3* 115632-01-02A EA LIGHT - STOP/TURN/TAIL RED
4 111102-02-000 EA LENS - AMBER - MARKER LAMP
4 111102-01-000 EA BASE - MARKER LAMP
4 036196-01-000 EA BULB - 12V - #194 - .27 AMP - BAYONETTE
5* 115632-03-02A EA LIGHT - STOP/TAIL/BACKUP
6 087201-01-000 EA LIGHT - HALF ROUND - 1" X 1.7" - PLASTIC - BLACK
7 136916-01-000 EA LIGHT - CENTER BRAKE - L.E.D.
8 133055-01-000 EA LENS - RED - F/CLEARANCE/MARKER
8 036196-01-000 EA BULB - 12V - #194 - .27 AMP - BAYONETTE
8 133055-03-000 EA BASE - F/CLEARANCE/MARKER - WHITE
9 111102-03-000 EA LENS - RED - MARKER LAMP
9 111102-01-000 EA BASE - MARKER LAMP
9 036196-01-000 EA BULB - 12V - #194 - .27 AMP - BAYONETTE
10 113589-01-000 EA CONNECTOR - PLUG - TRAILER
10 113589-02-000 EA CONNECTOR - SOCKET - TRAILER
11 049359-01-000 EA SPRING - RETAINER - HEADLAMP - GM #496096
12 049187-04-000 EA HEADLAMP - PASSENGER - HIGH BEAM - HALOGEN
13 049188-04-000 EA HEADLAMP - DRIVER - HIGH BEAM - HALOGEN
14 110750-01-000 EA SCREW - HEADLAMP ADJUSTING
