Copyright 2002 Winnebago Industries Inc.

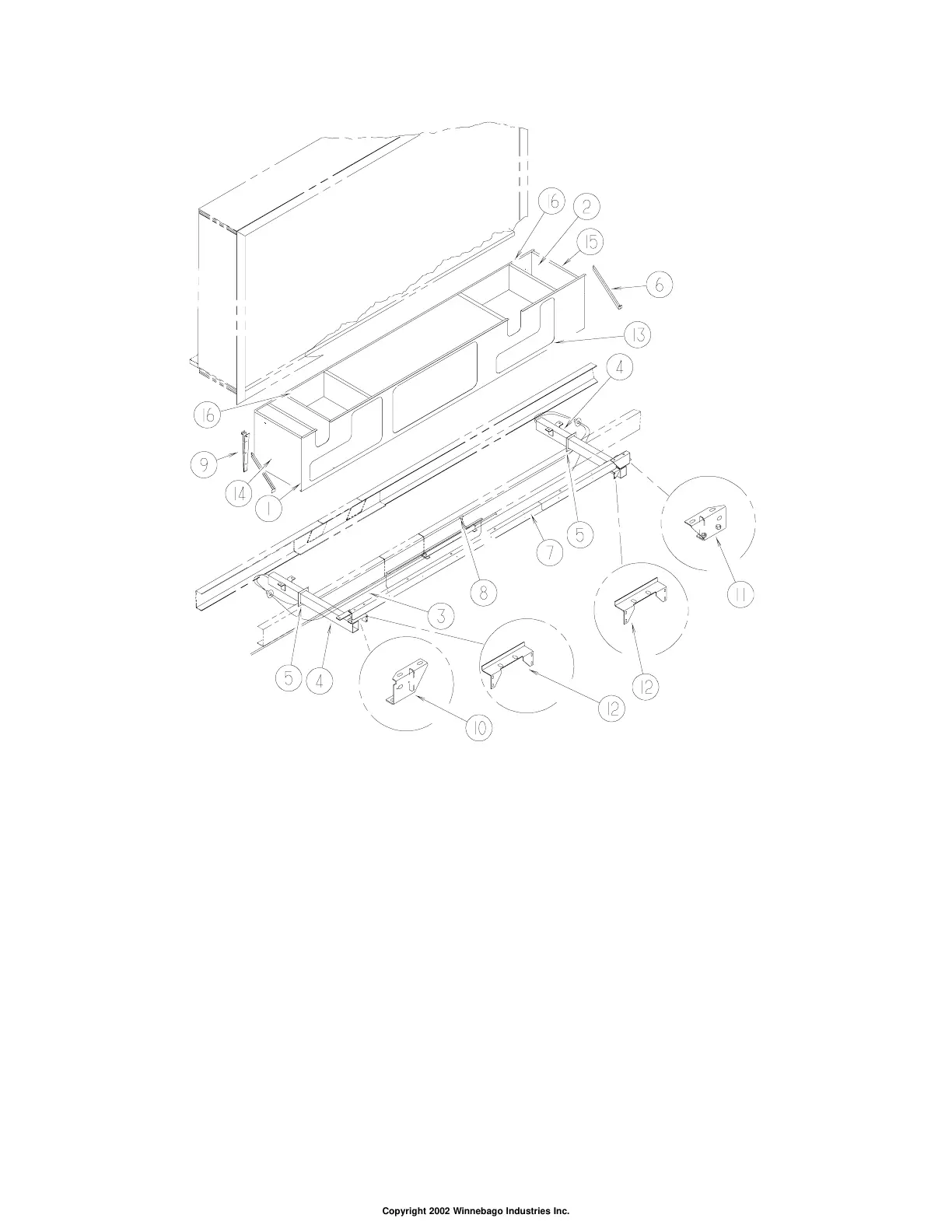

EXTERIOR SLIDEOUT GROUP
FRONT LEFT
KEY PART NUMBER U/M DESCRIPTION
1 137173-03-02B EA SEAL PLANE - E-COATED
2 137172-03-N42 EA COMPARTMENT - F/SLIDEOUT
3* 100536-42-000 EA HOSE KIT - PUMP TO SLIDE-OUT VALVE
4 140122-01-000 EA SLIDEOUT - HYDRAULIC - 29.12"
5 125828-02-02B EA FILLER/STEEL - SLIDEOUT - E-COATED
6 126497-01-02B EA SUPPORT - VALANCE - E-COATED
7 128621-22-01A EA ZEE-SLIDEOUT, W/HOLES, MILL
8 123264-01-000 EA TEE - UNION - 1/4" X 1/4" X 1/4"
9 126591-01-02B EA CARRIER - WIRE ASM - SLIDEOUT
10 127030-01-02B EA BRACKET - INNER FRONT/SLIDEOUT - E-COATED
11 127030-02-02B EA BRACKET - INNER REAR/MOUNT - E-COATED
12 128386-01-02B EA BRACKET - SLIDEOUT/COMPARTMENT - E-COATED
FROM: 00-00-00 THRU: 04-22-01
12 128386-02-02B EA BRACKET - SLIDEOUT COMPARTMENT - E-COATED
FROM: 04-23-01 THRU: 99-99-99
13 126516-01-01A FT TRIM - VINYL/EXTRUDED - 8'
14 137030-01-01A EA END CAP - COMPARTMENT/RIGHT HAND
15 137030-02-01A EA END CAP - COMPARTMENT/LEFT HAND
16 137290-01-01A EA CAP - COMPARTMENT - FOLDING
*COMPONENT PARTS LISTED LATER IN THIS GROUP
Copyright 2004 Winnebago Industries Inc.
