Copyright 2002 Winnebago Industries Inc.
WINDOW & VENTS GROUP (CONTINUED)

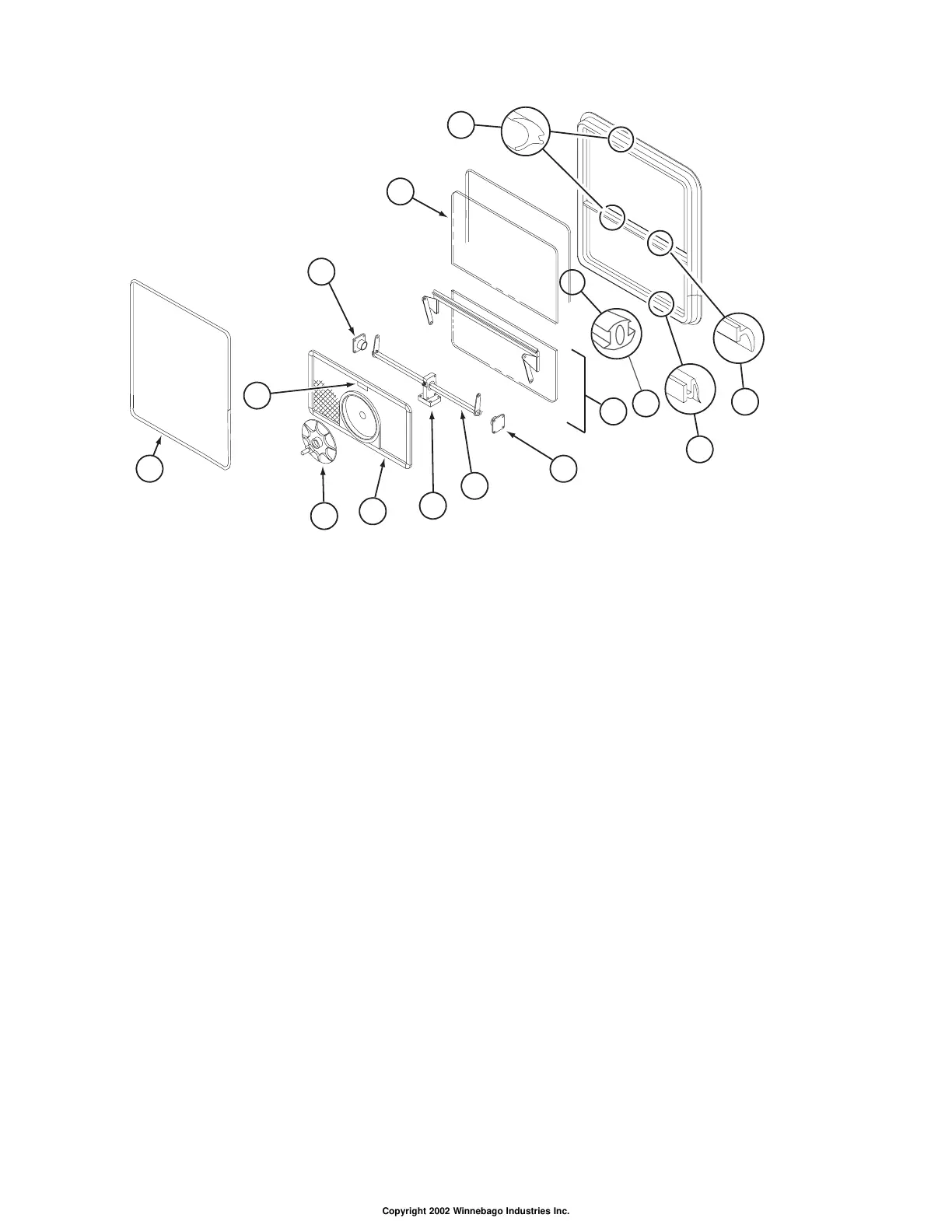

COMPONENT PARTS FOR WINDOW & VENT LAYOUT (CONTINUED)
11
14
3
2
1
4
8
10
5
13
9
12
7
6
112463-03-02A
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
1 116976-01-702 FT FILLER PLUG 132-016065
2 100322-01-701 FT SEAL-VENT 122-016071
3 100322-01-702 EA WEATHERSTRIP-HORIZ RAIL-148" 132-019631
4 100322-01-703 FT VINYL-GLAZING, BUTYL 132-010723
5 100322-01-716 EA SUPPORT-TORQUE BAR, CTR RAIL 130-015980
6 100322-01-718 EA HANDLE-DIAL 410-016081
7 112519-01-706 EA CLIP-SCREEN CH21-50
8 113500-01-707 EA SUPPORT - TORQUE BAR RH 130-015979
9 113500-01-708 EA SUPPORT - TORQUE BAR LH 130-015978
10 112463-03-701 EA GLASS - STATIONARY 106-025377
11 112463-03-704 EA RETAINER - TRIM CB100-59
12 112463-03-700 EA VENT ASSEMBLY CH100-G9
13 113500-05-703 EA OPERATOR & BAR ASSEMBLY CH10-15
14 112463-03-703 EA SCREEN ASM - W/SEALS & CLIPS 410-018439
100322-01-717 EA E-RING 245-015975
112463-05-02A
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
112463-05-02A EA WINDOW - TIPOUT/ESCAPE W/RETAINER RING - 33.3" X 30.2"
1 116976-01-702 FT FILLER PLUG 132-016065
2 100322-01-701 FT SEAL-VENT 122-016071
3 100322-01-702 EA WEATHERSTRIP-HORIZ RAIL-148" 132-019631
4 100322-01-703 FT VINYL-GLAZING, BUTYL 132-010723
5 100322-01-716 EA SUPPORT-TORQUE BAR, CTR RAIL 130-015980
6 100322-01-718 EA HANDLE-DIAL 410-016081
7 112519-01-706 EA CLIP-SCREEN CH21-50
8 113500-01-707 EA SUPPORT - TORQUE BAR RH 130-015979
9 113500-01-708 EA SUPPORT - TORQUE BAR LH 130-015978
10 112463-05-700 EA GLASS - STATIONARY 106-025378
11 112463-05-704 EA RETAINER - TRIM CB101-59
12 112463-05-703 EA VENT- ASSEMBLY TIPOUT 106-018414
13 112463-05-702 EA OPERATOR & BAR ASSEMBLY CH65-15
14 112463-05-701 EA SCREEN ASM - W/SEALS & CLIPS 410-018441
112898-06-704 EA HANDLE-LATCH/RED-RH (TIPOUT) 182-11293
112898-06-705 EA HANDLE-LATCH/RED-LH (TIPOUT) 182-11294
100322-01-717 EA E-RING 245-015975
Copyright 2004 Winnebago Industries Inc.
