WINDOW & VENTS GROUP (CONTINUED)

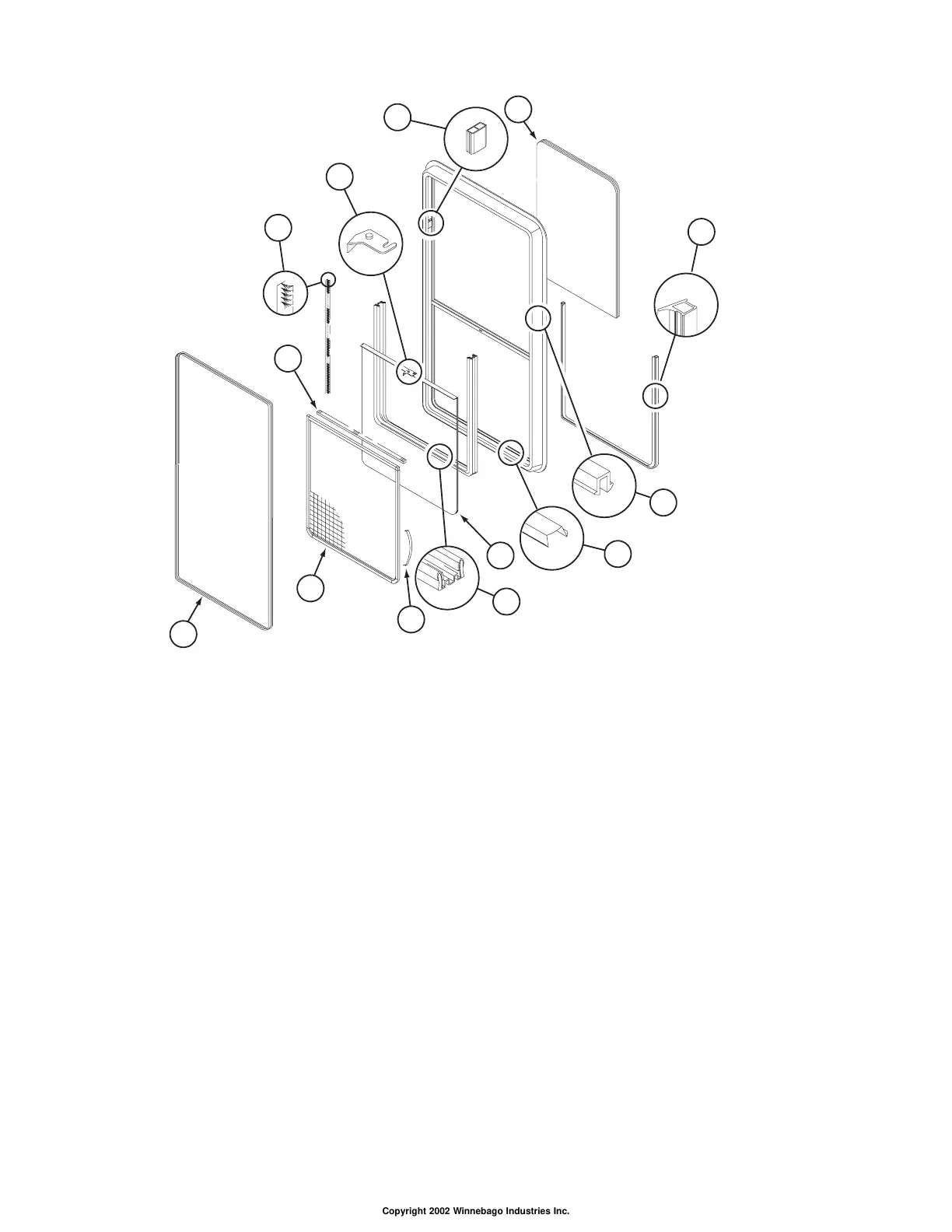

COMPONENT PARTS FOR WINDOW & VENT LAYOUT
098644-13-01A
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
1 098644-01-716 FT PLUG - FILLER 132-014470
2 098644-01-705 FT GLAZING - STRIP 132-010231
3 098644-01-706 FT WEATHERSTRIP - GLASS 171-010668
4 098644-01-713 EA CLIP - SCREEN - METAL 226-016966
4 125582-01-701 EA CLIP - SCREEN - PLASTIC 130-005153
5 098644-01-719 EA STOP - SLIDER GLASS 132-014203
6 098644-01-710 FT TRACK - SCREEN SPACER 12' 132-017135
7 098644-01-700 EA LATCH - REPAIR KIT (BLACK) B801-CK
8 098644-01-708 FT CHANNEL - RUN PIERCED 122-016543
9 098644-01-711 FT WEATHERSTRIP - SCREEN BLACK 171-016965
10 098644-13-700 EA GLASS - STATIONARY 106-028698
11 098644-13-701 EA GLASS - SLIDING W/SASH/LATCH H702-G9
12 098644-13-702 EA SCREEN ASM - W/SEALS/CLIPS 410-028663
13 098644-13-703 EA RETAINER - TRIM H702-60
098644-01-717 FT SPLINE - SCREEN 132-004716
10
1
5
7
9
3
2
6
11
8
4
12
13
