WINDOW & VENTS GROUP (CONTINUED)

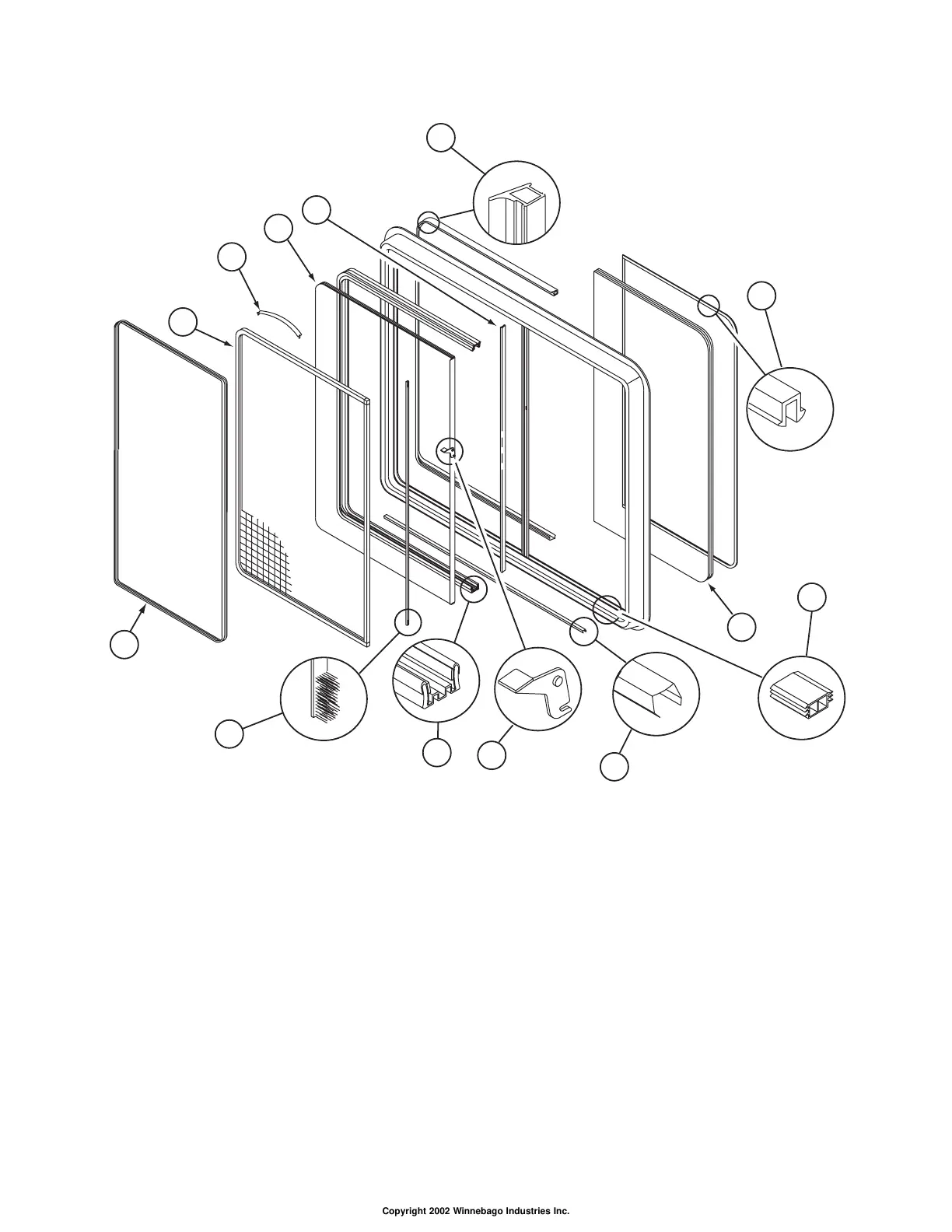

COMPONENT PARTS FOR WINDOW & VENT LAYOUT (CONTINUED)
2
5
12
6
7
8
9
14
4
13
3
1
11
112795-71-01A
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
1 112795-01-704 FT PLUG FILLER (DOUBLE GLAZED) 122-018737
2 112795-01-705 FT VINYL - GLAZING 132-025736
3 098644-01-706 FT WEATHERSTRIP - GLASS 171-010668
4 098644-01-713 EA CLIP - SCREEN - METAL 226-016966
4 125582-01-701 EA CLIP - SCREEN - PLASTIC 130-005153
098644-01-717 FT SPLINE - SCREEN 132-004716
5 112795-01-701 EA SLIDE-STOP 132-019092
6 098644-01-710 FT TRACK - SCREEN SPACER 12' 132-017135
7 112795-01-700 EA LATCH ASM., BLK.,(BOLT ON) DH287-CK
8 112795-01-703 IN CHANNEL-RUN (INCHES) 122-018736
9 098644-01-711 FT WEATHERSTRIP - SCREEN BLACK 171-016965
11 112795-71-700 EA GLASS - STATIONARY 390-028380
12 112795-71-701 EA GLASS - SLIDING W/SASH LATCH DH286-G8
13 098647-25-704 EA SCREEN ASSY - W/SEAL & CLIPS 410-019065
14 098647-25-705 EA RETAINER - TRIM H286-66
