WATER & SEWAGE GROUP

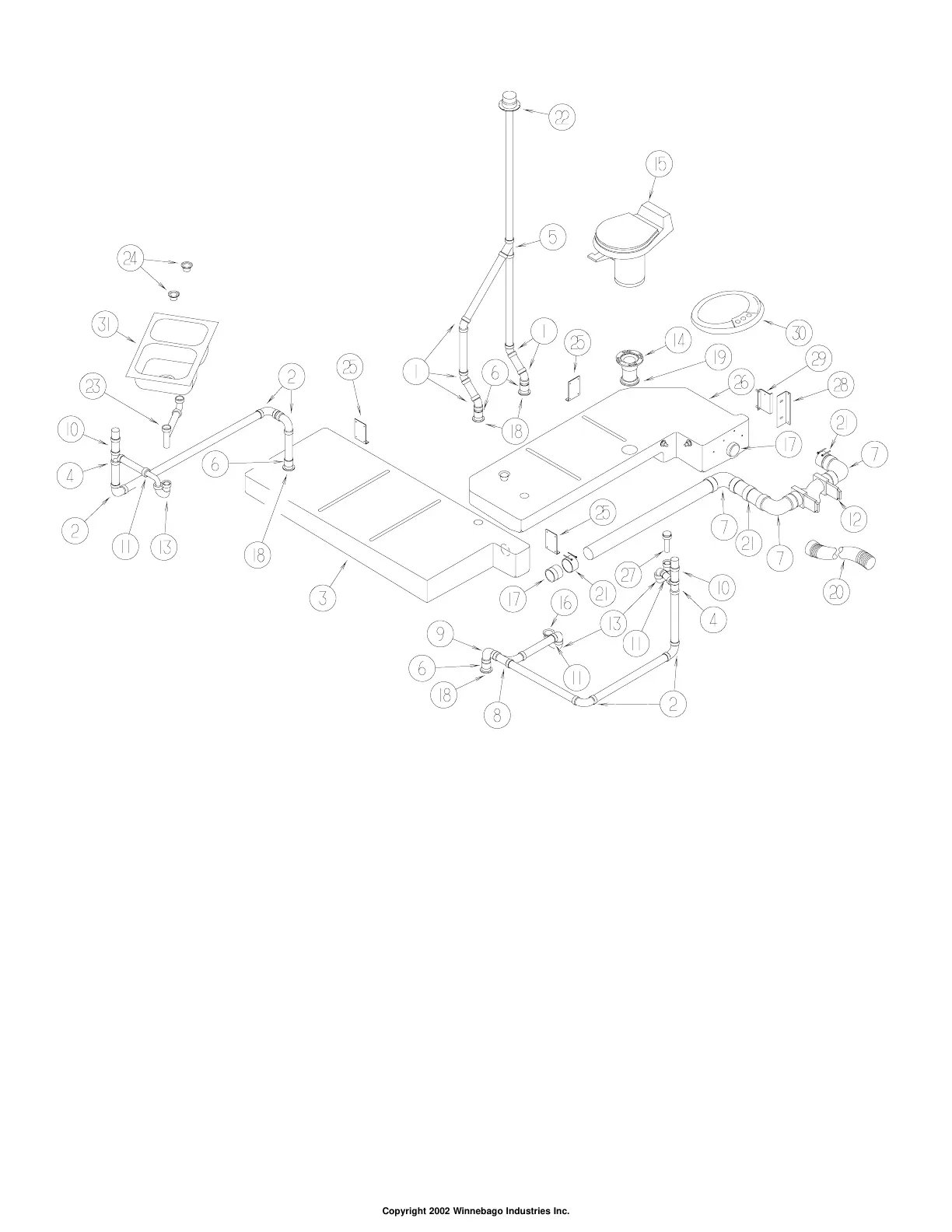

DRAINAGE SYSTEM
KEY PART NUMBER U/M DESCRIPTION
1 010006-01-000 EA ELBOW - 45 DEGREE - 1 1/2" HUB X HUB - PLASTIC
2 010008-01-000 EA ELBOW - 90 DEGREE - 1 1/2" HUB X HUB - PLASTIC
3 132448-01-700 EA TANK - HOLDING - 54 GAL - W/3" OUTLET NIPPLE
4 010071-01-000 EA TEE - SANITARY - 1 1/2" HUB X HUB X HUB - PLASTIC
5 010073-01-000 EA WYE - 45 DEGREE - 1 1/2" HUB X HUB X HUB - PLASTIC
6 010115-01-000 EA COUPLING - 1 1/2" HUB X HUB - PLASTIC
7 031126-01-000 EA ELBOW - 1/4 BEND - 3" X 90" XLT - BLACK PLASTIC
8 031365-02-000 EA TEE - PLASTIC - 1 1/2" EXTRA LONG TURN
9 034250-01-000 EA ELBOW - 90 DEGREE - LONG TURN - 1 1/2" HUB X HUB - ABS
10 079968-01-000 EA VENT - MECHANICAL/TRAP ARM - ANTI-SIPHON-2" X 7.3" PLASTIC
11 109571-01-000 EA ADAPTER - P-TRAP - 1 1/2"P X 1 1/4"MPT
12 136143-01-000 EA VALVE - DUAL - 3" X 3"
13 107538-01-000 EA P-TRAP - PLASTIC - 1 1/4" W/EXTENSION ARM
13 011071-01-000 EA P-TRAP - PLASTIC - 1 1/2" - CSA
14 116644-01-000 EA FLANGE/CLOSET - 4 BOLT X 3" FEMALE
15* 134789-01-01A EA TOILET W/SPRAYER - SHORT - CHINA - WHITE
16 066440-01-000 EA STRAINER - SHOWER DRAIN - W/RUBBER WASHER
127440-02-01A EA WASHER - RUBBER - 1.8" X .1"
011069-06-000 EA TAILPIECE - 1 1/2" X 1 1/4" X 2 1/2"
130403-01-000 EA NUT - SLIP - W/WINGS 1 1/2"
17 010129-03-000 EA NIPPLE - PLASTIC - 3" X 3" TOE
18 061607-01-000 EA GROMMET - HOLDING TANK - 1 1/2" NPS
19 061607-02-000 EA GROMMET - HOLDING TANK - 3" NPS
