ELECTRICAL GROUP (CONTINUED)

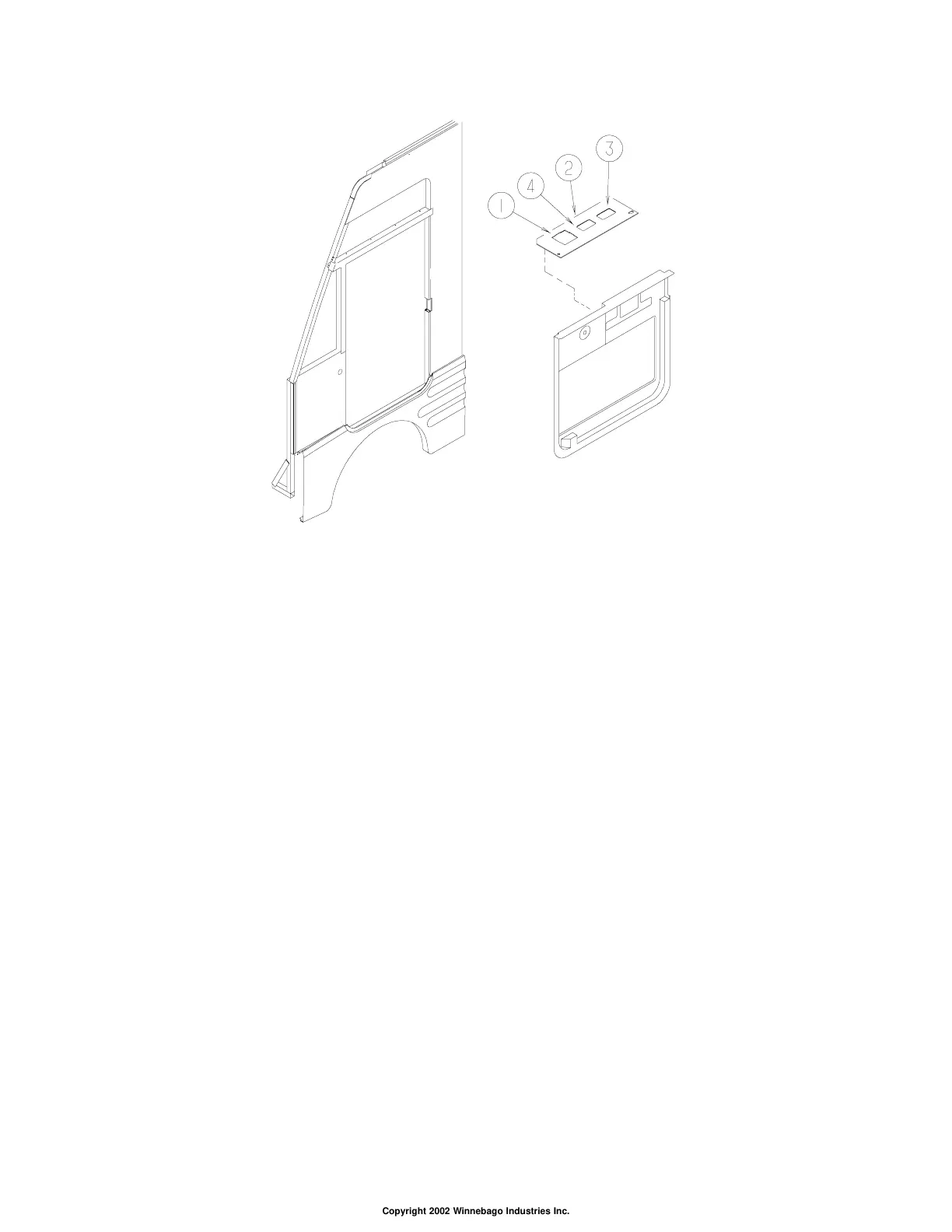

DRIVERS DOOR WIRING

KEY PART NUMBER U/M DESCRIPTION

1 093132-01-000 EA SWITCH - ROCKER/POWER WINDOWS - 5 TERM - (ARROWS)

2 132514-02-02B EA PLATE - SWITCH - HEATED MIRROR - E-COATED

3 088246-01-000 EA SWITCH/REMOTE MIRROR - W/2PIN & 6 PIN CONNECTORS/PIGTAIL

4 108357-14-000 EA SWITCH - ROCKER - SPST - W/LIGHT - ON/OFF - 4 TERMINAL

4 108356-03-01A EA COVER/ACTUATOR SWITCH -3 GROOVES W/LIGHT-CONTRA III-BLACK
