EXTERIOR DOORS & COMPARTMENTS GROUP (CONTINUED)
COMPONENT PARTS FOR DOOR & COMPARTMENT LAYOUT
084103-08-000
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
084104-01-700 EA LOCK-MALE, FASTENER 201-721-010
084104-01-701 EA LOCK-FEMALE, FASTENER 201-802-010
094707-03-01A
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.

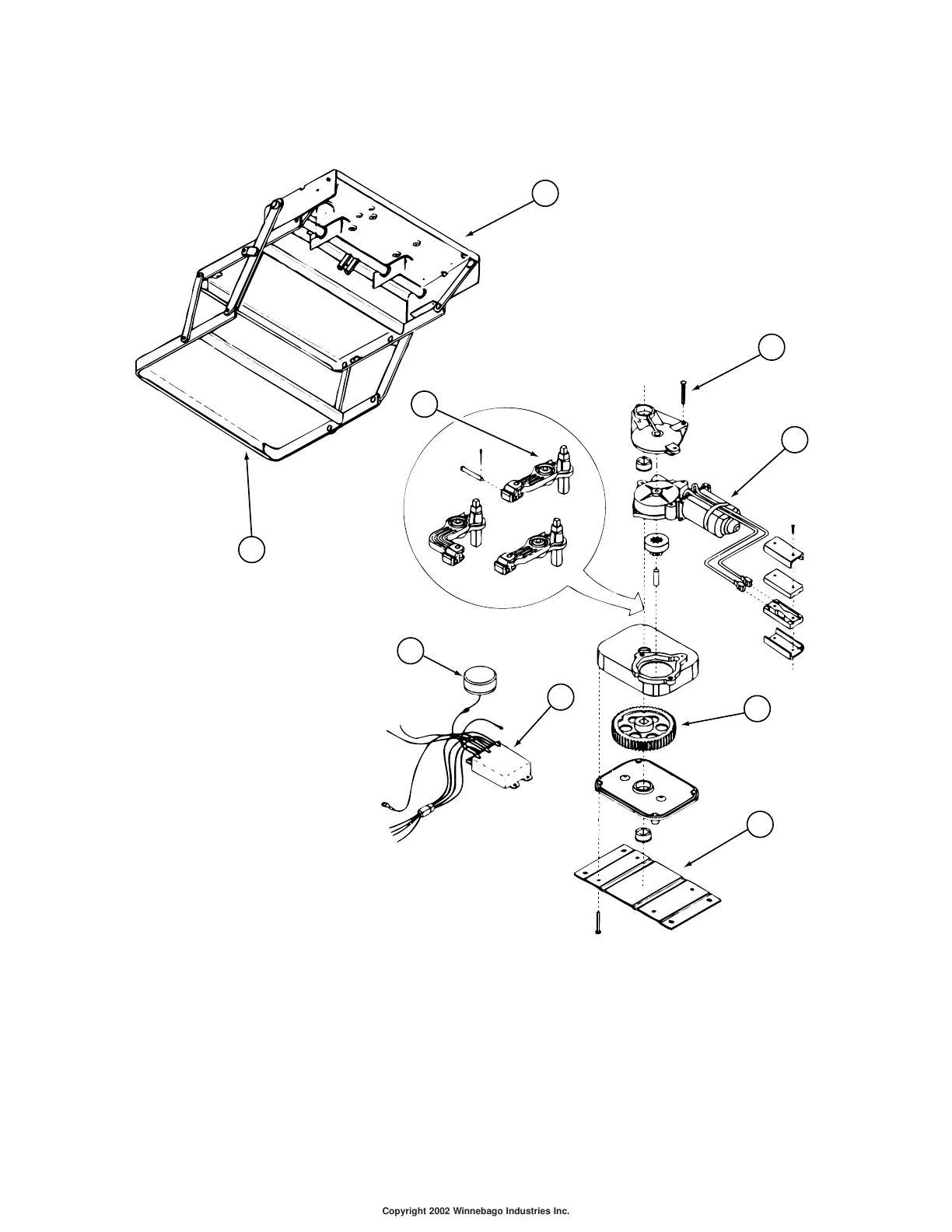

1 094707-01-702 EA FRAME W/DBL STEP,3200 SERIES 908032
2 094707-02-703 EA BEARING & PINS 909530
3 094707-02-700 EA MOTOR ASM.,W/BEARINGS & PINS 909520
4 094707-02-702 EA GEAR KIT(GEAR-BEARING-PINS) 909525
5 094707-02-704 EA CONNECTOR-MOTOR ASM.W/PLATES 909537
6 094707-03-700 EA KIT CONTROL/SWITCH-RETROFIT 909506005
7 088733-01-700 EA BULB 9004
7 088746-01-705 EA LIGHT-UNDER STEP 9004
8 094707-02-701 EA LINKAGE ASM. W/BEARINGS-PINS 909534
094707-02-706 EA GEAR BOX ASM. W/O MOTOR 9524
9 094707-02-707 EA TREAD - NON-SKID - BLACK 909333
094707-02-708 EA TREAD - NON-SKID - BLACK 909331
094707-03-701 EA PLUG - 4-WAY - PACKARD 909306
