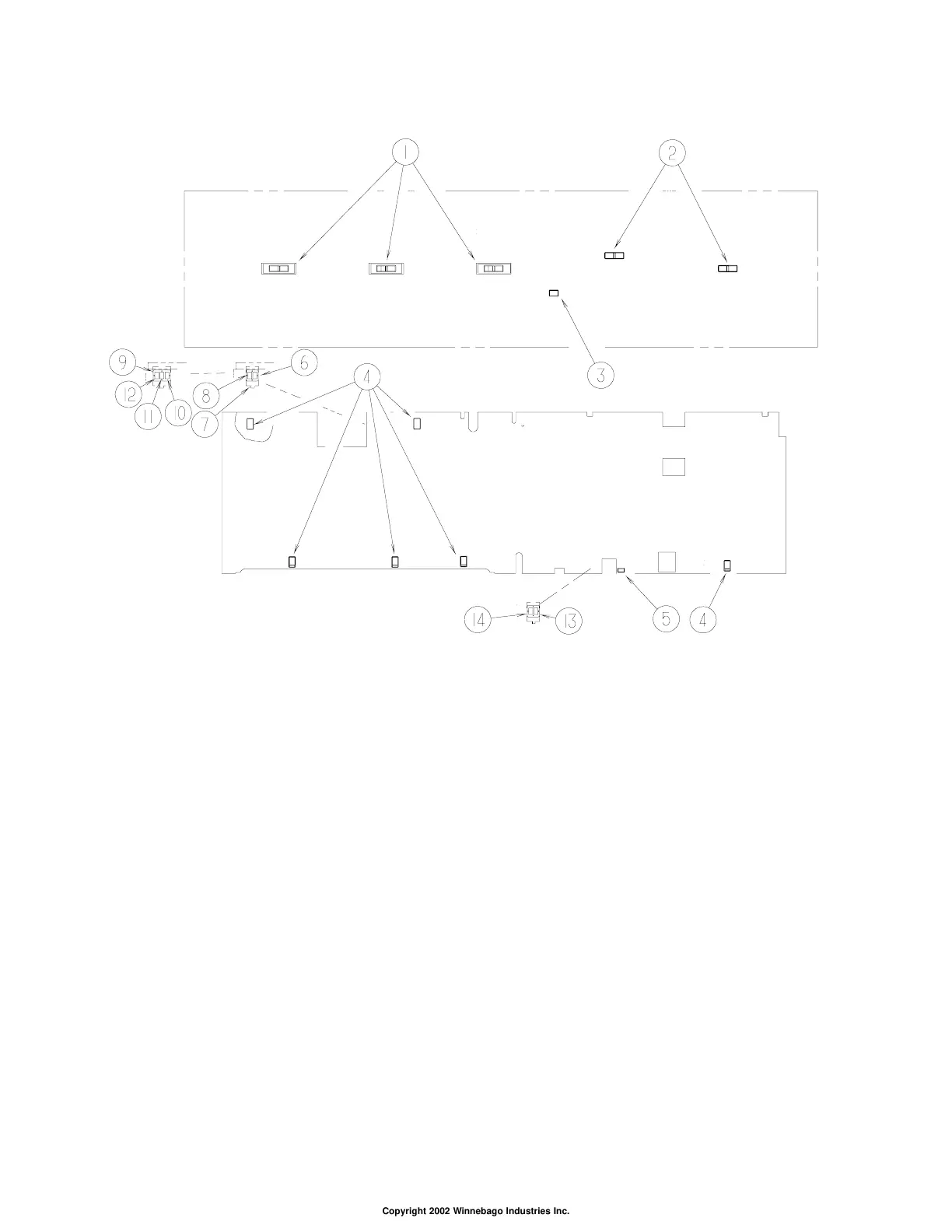

ELECTRICAL GROUP (CONTINUED)

12V BODY WIRING (CONTINUED)

KEY PART NUMBER U/M DESCRIPTION

1* 091937-08-000 EA LIGHT-FLOURESCENT-12V/30 WATT RECESSED - W/O SWITCH

091937-03-000 EA BULB - FLUORESCENT LIGHT - 12 VOLT

2* 137417-06-01A EA LIGHT - DOME - DOUBLE - W/FROSTED LENS - W/O SWITCH-WHITE

3* 121935-01-01A EA LIGHT - DOME - SHOWER

4* 137417-01-01A EA LIGHT - DOME - SINGLE - W/SWITCH/FROSTED LENS - WHITE

5* 086280-01-000 EA LIGHT - SURFACE MOUNT - 12 VOLT

6 098351-22-01A EA PLATE/SWITCH - 2 GANG - POLISHED BRASS

7 108357-01-000 EA SWITCH - ROCKER - SPST - ON/OFF - 2 TERMINAL

7 108356-14-01A EA COVER/ACTUATOR SWITCH - 3 GROOVES

7 108355-01-000 EA HOUSING - SWITCH

8 108357-06-000 EA SWITCH - ROCKER - DPDT - MOM/OFF/MOM - 6 TERMINAL

8 108356-11-01A EA COVER/ACTUATOR SWITCH - 3 GROOVES - AUX BATT - BLACK

8 108355-01-000 EA HOUSING - SWITCH

9 098351-23-01A EA PLATE - SWITCH - 3 GANG - POLISHED BRASS - W/ELECTRIC AWNING

10 108357-01-000 EA SWITCH - ROCKER - SPST - ON/OFF - 2 TERMINAL - W/ELECTRIC AWNING

10 108356-14-01A EA COVER/ACTUATOR SWITCH - 3 GROOVES - W/ELECTRIC AWNING

10 108355-01-000 EA HOUSING - SWITCH - W/ELECTRIC AWNING

11 108357-06-000 EA SWITCH - ROCKER - DPDT - MOM/OFF/MOM - 6 TERMINAL - W/ELECTRIC AWNING

11 108356-11-01A EA COVER/ACTUATOR SWITCH - 3 GROOVES - AUX BATT - BLACK - W/ELECTRIC AWNING

11 108355-01-000 EA HOUSING - SWITCH - W/ELECTRIC AWNING

12 108357-07-000 EA SWITCH - ROCKER - SPDT - MOM/OFF/MOM - 3 TERMINAL - W/ELECTRIC AWNING

12 108356-12-01A EA COVER/ACTUATOR SWITCH - 3 GROOVES - W/ELECTRIC AWNING

12 108355-01-000 EA HOUSING - SWITCH - W/ELECTRIC AWNING

13 108357-01-000 EA SWITCH - ROCKER - SPST - ON/OFF - 2 TERMINAL

13 108356-02-01A EA COVER/ACTUATOR SWITCH - 2 ROWS DIMPLES- CONTURA II - BLACK

13 108355-01-000 EA HOUSING - SWITCH

14 108357-15-000 EA SWITCH - ROCKER - DPDT - ON/NONE/ON

14 108356-04-01A EA COVER/ACTUATOR SWITCH - 2 ROWS DIMPLES W/LENS-CONTURA-BLK

14 108355-01-000 EA HOUSING - SWITCH

*COMPONENT PARTS LISTED LATER IN THIS GROUP
