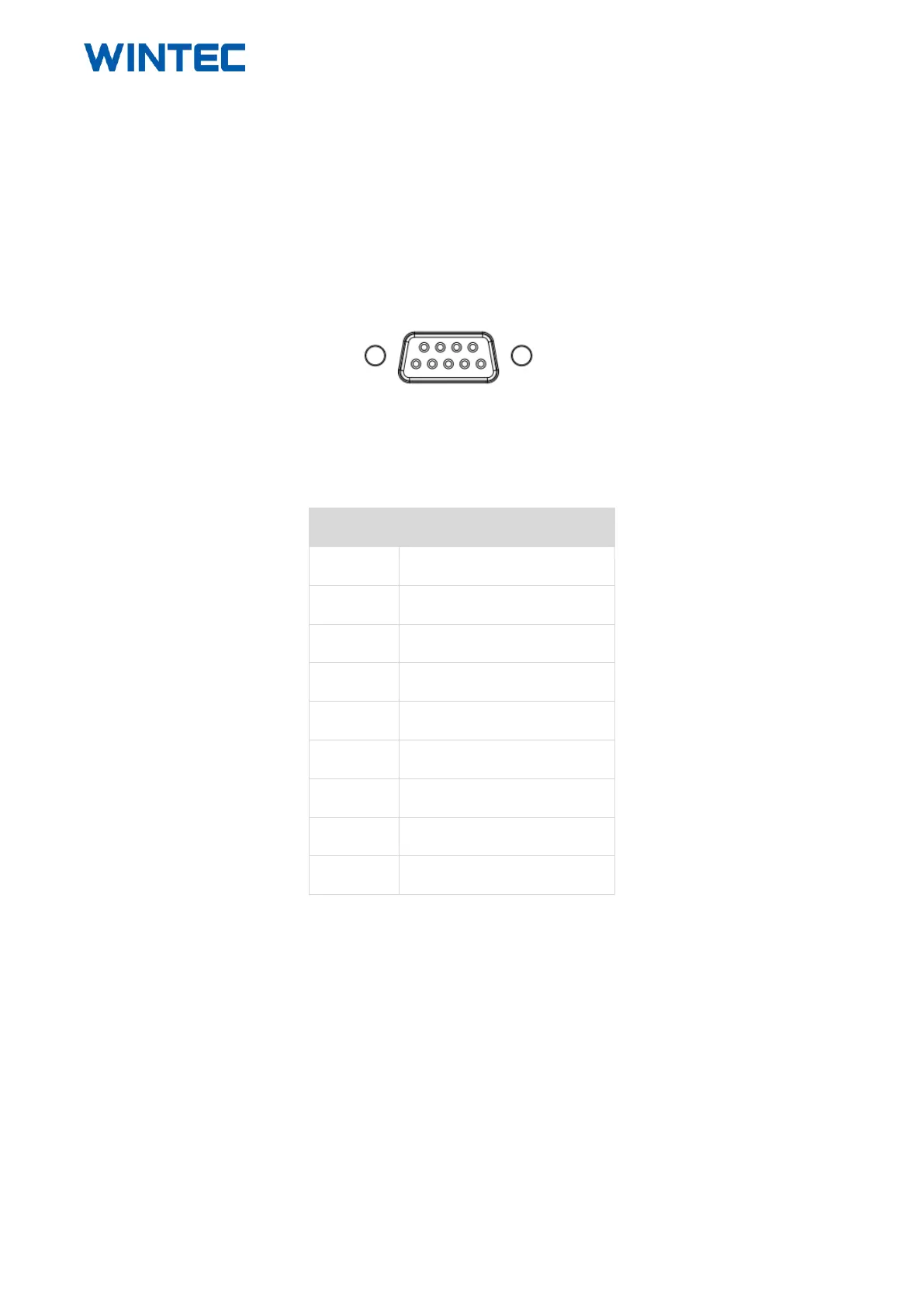

5.4 Serial Interface
Printer PP-82 serial interface is compatible with RS 232 standard, with 9 pin sockets.
Figure 5-2
PIN
SIGNAL NAME
1
-
2
TXD
3
RXD
4
-
5
GND
6
DSR
7
CTS
8
RTS
9
-
