7INSTALLATION MANUAL AIR HEATER TYPE DXC
3.2.3 Butane / LPG
Specification Unit Butane / LPG G30 (B/P)
Nominal supply pressure mbar 30-50
Supply pressure (min. - max.) mbar 25-50
Gas category - II
2
H
3
P B/P
NL: II
2
EK
3
B/P
DE: II
2
ELL
3
B/P
BE: I
3
B/P
FR: II
2
Er
3
B/P
PL: II
2
ELwLs
3
B/P
Class - B22, C12, C32
Specification Unit DXC60 DXC80 DXC100
Gas consumption m
3
/h 3.9 5.0 6.5
Burner injectors n x Ømm 5x 2.3 6x 2.3 8x 2.3
Burner pressure high mbar 13.5 15.0 14.5
Burner pressure low mbar 6.0 6.0 6.5
CO
2
High (indication) % 9.2 9.2 9.2
3.3 Dimensions

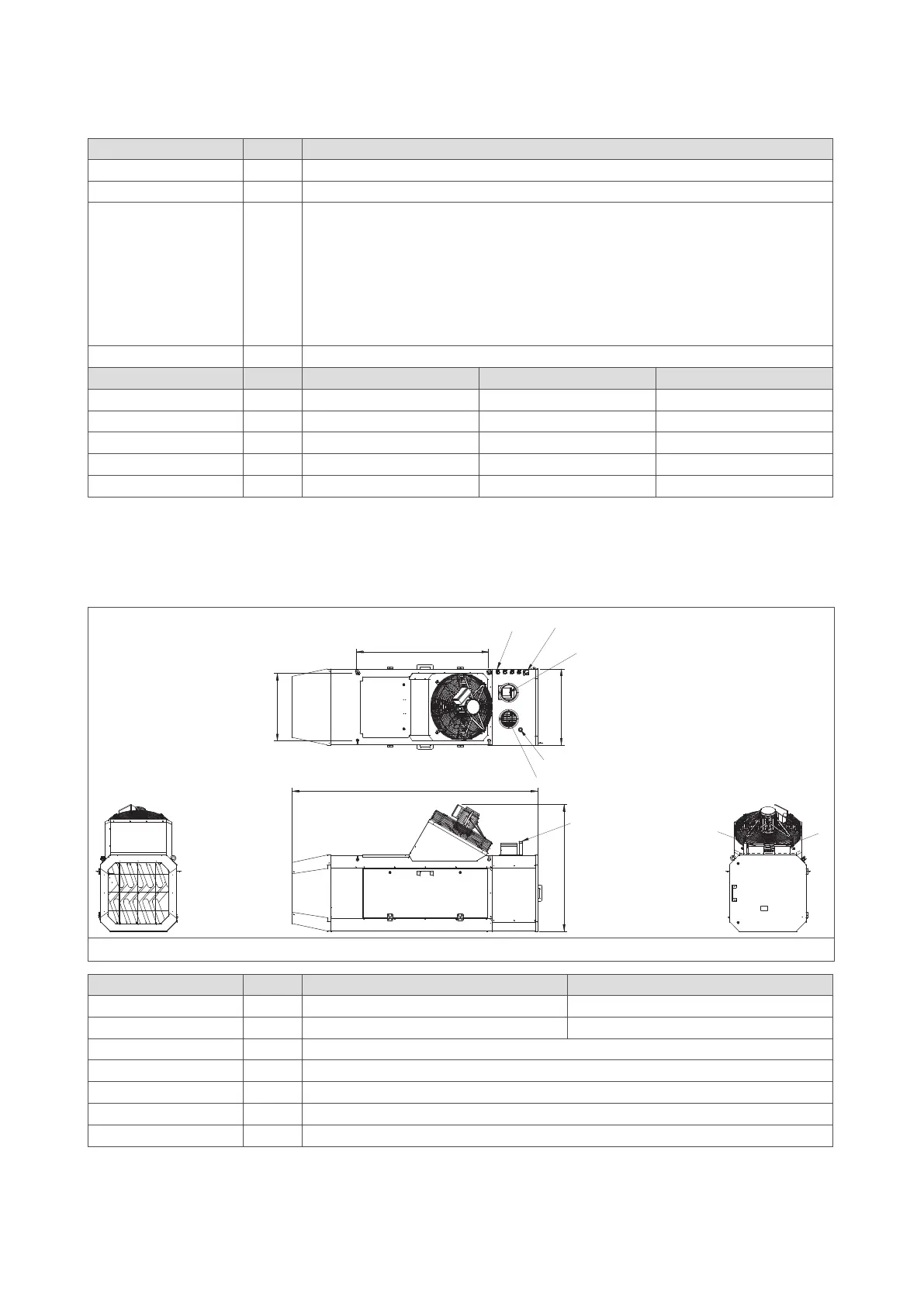

The dimensions of this air heater can be found in figure 1.
B
1080
1125
A
2100
T1
T2
T3
T5
T4
T5
T4
T
3
Figure 1 - Dimensions of the DXC
Dimension Unit DXC60-80 DXC100
A mm 575 650
B mm 740 815
T1 - Electrical supply
T2 - Function switch
T3 - Flue discharge
T4 - Flue supply
T5 - Gas supply (¾")
