Winterwarm XR30 - Examples Electrical Installation; Installation with Opentherm TCW Thermostat; Installation with Opentherm Clock Thermostat; Installation with Extra Reset Possibility

Instructions premix Air heaters type XR10.. 60 Page 14/15


 6#/ &$ ' $ #$'#$$#
6#/ &$ ' $ #$'#$$#6#/ &$ ' $ #$'#$$#
6#/ &$ ' $ #$'#$$#



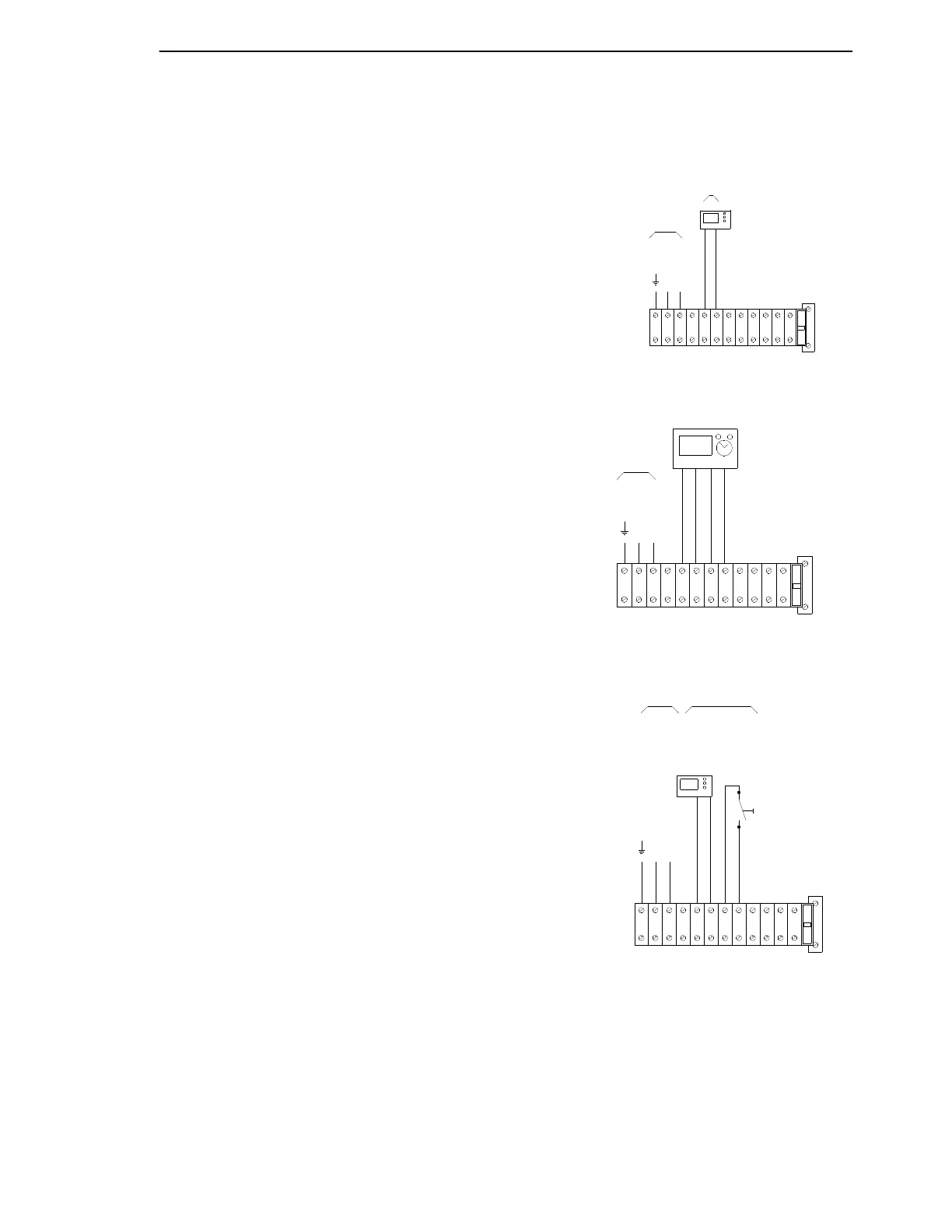

11.1 Installation with OpenTherm TCW thermostat
• Connect the heater to 230Vac
• Connect the thermostat to the terminals according to the
diagram. (terminal 4 and 5)
11.2 Installation with OpenTherm clock thermostat
• Connect the heater to 230Vac
• Connect the thermostat to the terminals according to the
diagram. (terminal 4, 5, 6 and 7)
11.3 Installation with extra reset possibility
• Connect the heater to 230VaC
• Connect the thermostat (can be OpenTherm or on/off).
• Reset is possible by mounting a pressbutton between
terminals 6 and 7
230 Vac
Open therm (24 Vdc)
L (230 Vac)
N (neutral)
20°C
Room Thermostat
21
3
124
5
7
6 11 13 14
F3
N (neutral)
L (230 Vac)
21
3 5
4
6
7
230 Vac
20°C
Room Thermostat
Open therm (24 Vdc)
1311 12
F3
14
4
5 6
7
Externe reset
20°C
Room Thermostat
Thermostaat
Ruimte
L (230 Vac)
N (neutral)
230 Vac 24 Vdc
21
3
124
5
7
6 11 13 14
F3
