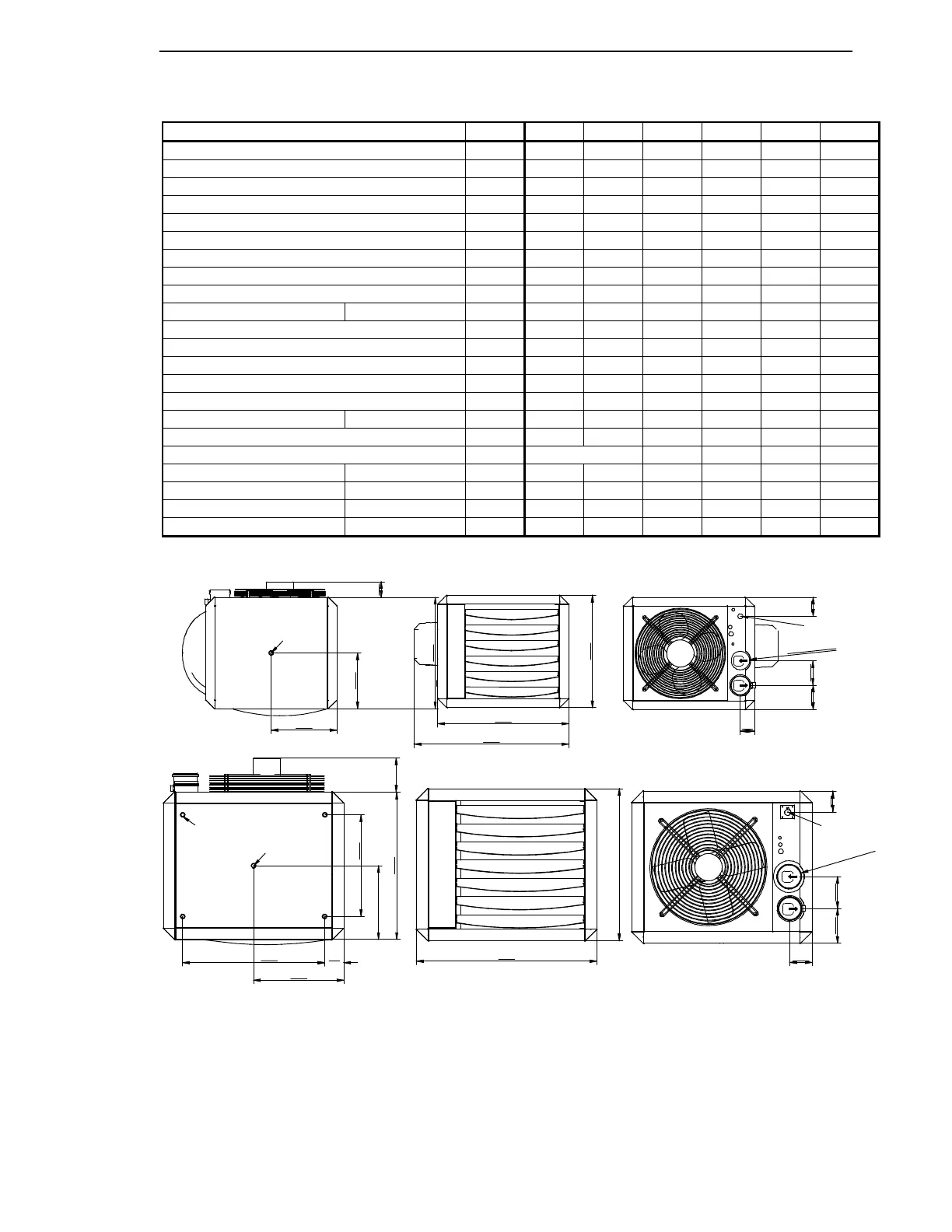

Instructions premix Air heaters type XR10.. 60 Page 4/15
(
((
( )#$ #$'
)#$ #$' )#$ #$'
)#$ #$'
Type
unit 10 20 30 40 50 60
Maximum nominal heat input (Nett) kW 14,0 22,8 32,0 44,0 55,0 66,0
Minimum nominal heat input (Nett) kW 9,0 14,8 20,5 26,4 33,0 39,6
Maximum heat output
kW 12,6 20,8 29,2 40,2 50,1 60,5
Minimum heat output
kW 8,3 13,8 19,1 24,4 30,8 37,0
Max air output (+ temp increase) m3/h 1150 2070 2600 4700 5150 6300
Throw horizontal (max)
m 12 16 23 26 28 30
Throw vertical (max.warm)
m 5 5 6 7 7 8
Sound level
dB(A) 42 45 45 46 47 49
Electric Connection
Vac 230 230 230 230 230 230
Thermostat Open Therm
yes yes yes yes yes yes
Power Consumption
W 250 250 250 450 450 600
Gas connection
G" 1/2" 1/2" 1/2" 3/4" 3/4" 3/4"
Minimum suspension height horizontal throw m 1,7 1,7 1,7 2,7 2,7 2,7
Minimum suspension height vertical throw m 4 4 4 5 6 6
Weight
kg 36 37 38 78 80 82
Min supply pressure G20 (H) mbar 20 20 20 20 20 20
Gas category
Cat I2H
Class
Clas. B23, C13, C33
Max gas consumption G20 (H) m3/h 1,5 2,4 3,4 4,7 5,8 7,0
Offset gasvalve
mbar -0,30 -0,30 -0,50 -0,25 -0,25 -0,25
CO2 max G20 (H) % 9,0 9,0 9,0 9,0 9,0 8,9
CO2 min (indication) G20 (H) % (8,1) (8,2) (8,7) (8,1) (8,0) (8,2)
680
575
490
65
490
290
245
110
8
0
(
2
X
)
65
85
Gas 1/2" inw.
105
M12
650
150
325
395
M12
M10
85625
445
795
670
90
GAS 3/4" uitw.
140150
100
XR 10 - 30
XR 40 - 60
1
0
0
(
2X
)
