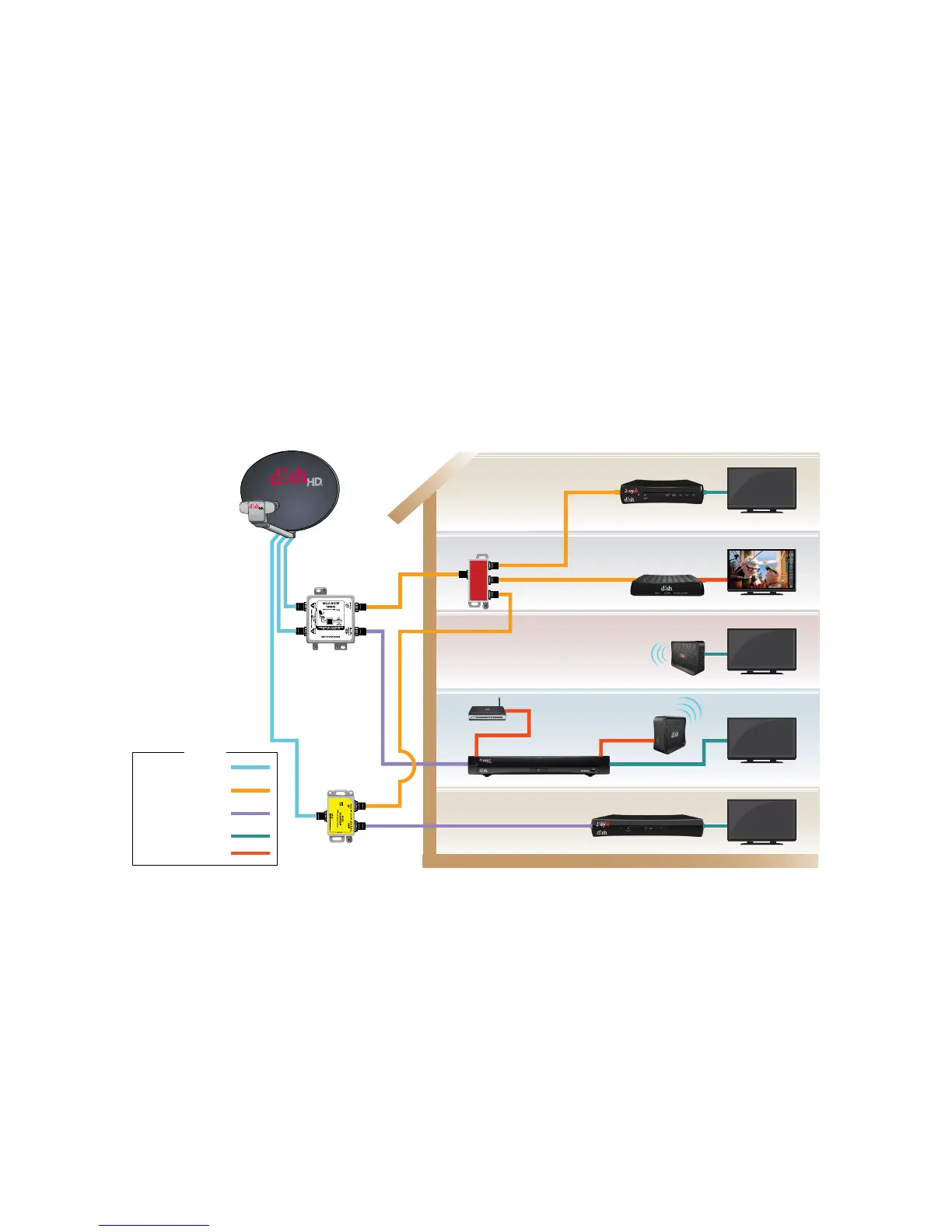

Installation Diagrams | Super Joey, Wireless Joey, and Virtual Joey: 5-TV Installation
Super Joey, Wireless Joey, and Virtual Joey: 5-TV Installation
1 Super Joey, 1 Wireless Joey/Access Point, 1 Virtual Joey, 1 Hopper with Sling, 1 Joey
ROOM 1 ROOM 2 ROOM 3 ROOM 5ROOM 4
Satellite
950–2150 MHz
MoCA
650–875 MHz
Satellite and MoCA
650 ≤ 3000 MHz
Cables
HDMI
Ethernet
Router
Virtual Joey Display
H.I.C.
Integrator
Joey
Solo Node
Super Joey
Hopper with Sling
Wireless Joey
Wireless Joey
Access Point
3-Way
Splitter
(Bridging Enabled)
