Installation Diagrams | Super Joey and Wireless Joey: 5-TV Installation

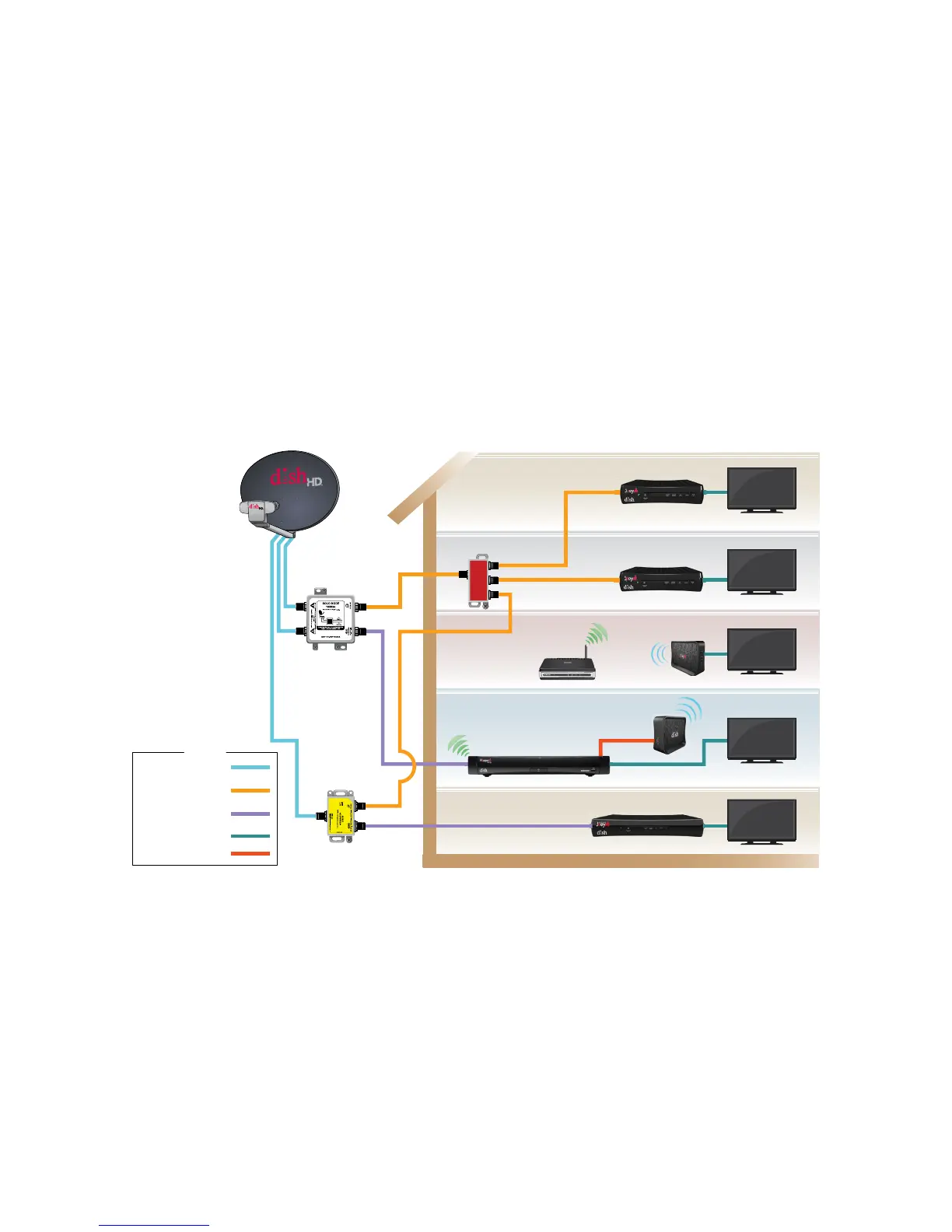

Super Joey and Wireless Joey: 5-TV Installation
1 Super Joey, 1 Wireless Joey, 1 Wireless Joey Access Point, 1 Hopper with Sling, 2 Joeys
ROOM 1 ROOM 2 ROOM 3 ROOM 5ROOM 4
Satellite
950–2150 MHz
MoCA
650–875 MHz
Satellite and MoCA
650 ≤ 3000 MHz
Cables
HDMI
Ethernet
Integrator
Joey
Joey
Solo Node
Super Joey
Wireless
Router
Hopper with Sling
(Bridging Enabled)
Wireless Joey
Wireless Joey
Access Point
3-Way
Splitter
