Wireless Joey Dish User Manual

12

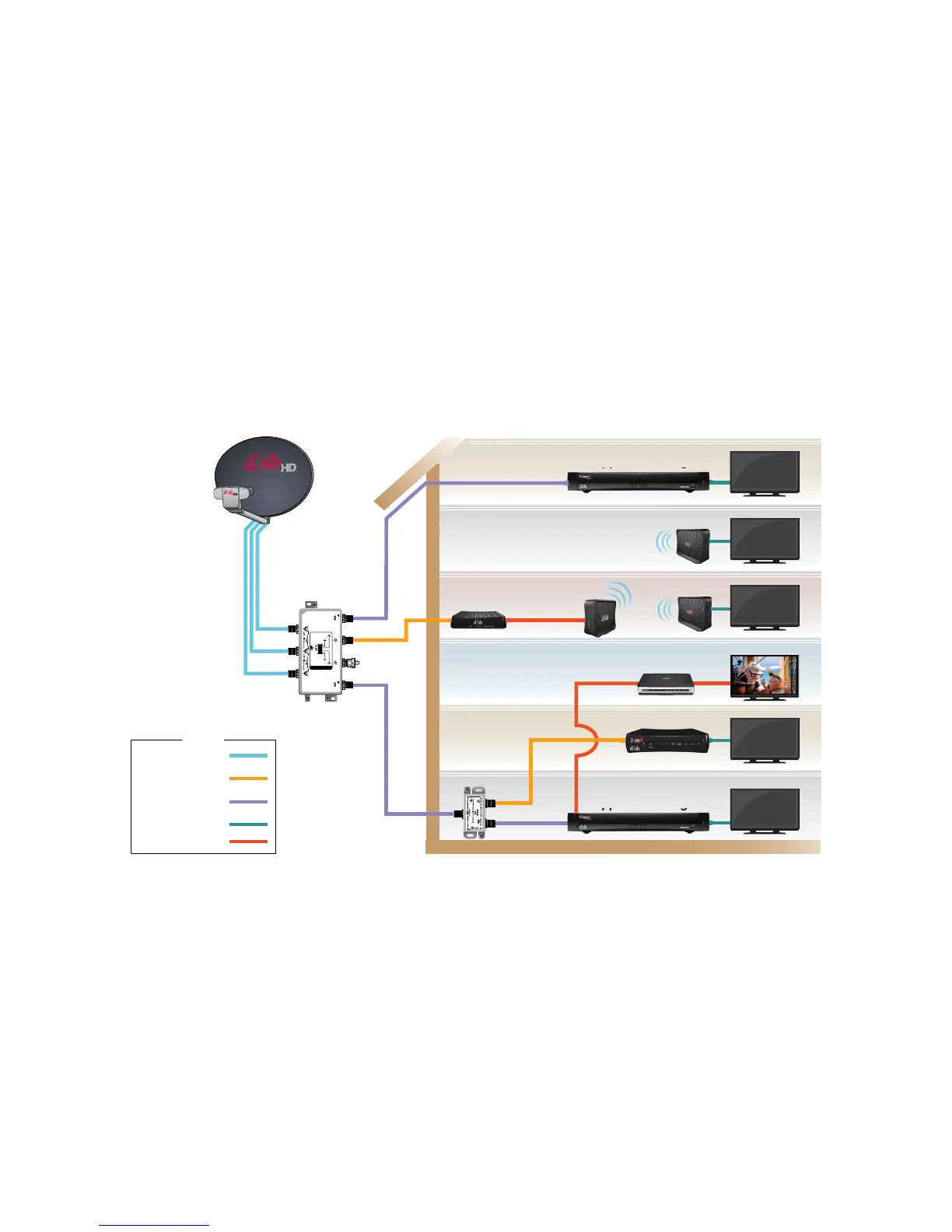

Installation Diagrams | Wireless Joey and Virtual Joey: 6-TV Installation
Wireless Joey and Virtual Joey: 6-TV Installation
2 Wireless Joeys, 1 Wireless Joey Access Point, 1 Virtual Joey, 2 Hopper with Slings, 1 Joey
ROOM 1 ROOM 2 ROOM 3 ROOM 4 ROOM 5 ROOM 6
(Bridging Enabled)
Wireless Joey
Access Point
Virtual Joey Display
Router
Duo Node
Tap
Joey
Hopper with Sling
H.I.C.
Satellite
950–2150 MHz
MoCA
650–875 MHz
Satellite and MoCA
650–3000 MHz
Cables
HDMI
Ethernet
MMTTVV-FMYYXXXXX
TO CLIENT TO CLIENT
EchoStar Technologies L.L.C.
Grounding wire size: Copper wire-8-14 AWG
Copper coated steel wire-17 AWG
T
O
L
N
B
F
S
DUO NODE
185836
TO HOST
10.5-28V
TO HOST
10.5-28V
pp g
Hopper with Sling
pp g
Wireless Joey
Wireless Joey
Terminator

Wireless Joey Dish Specifications

General

Connectivity Technology	Wireless
Wireless Standard	802.11ac
Type	Wireless Access Point
Maximum Range	Up to 100 feet
Frequency Band	5 GHz
Compatibility	Hopper
Power Source	Power adapter
