3 OPERATING ELEMENTS AND DISPLAYS

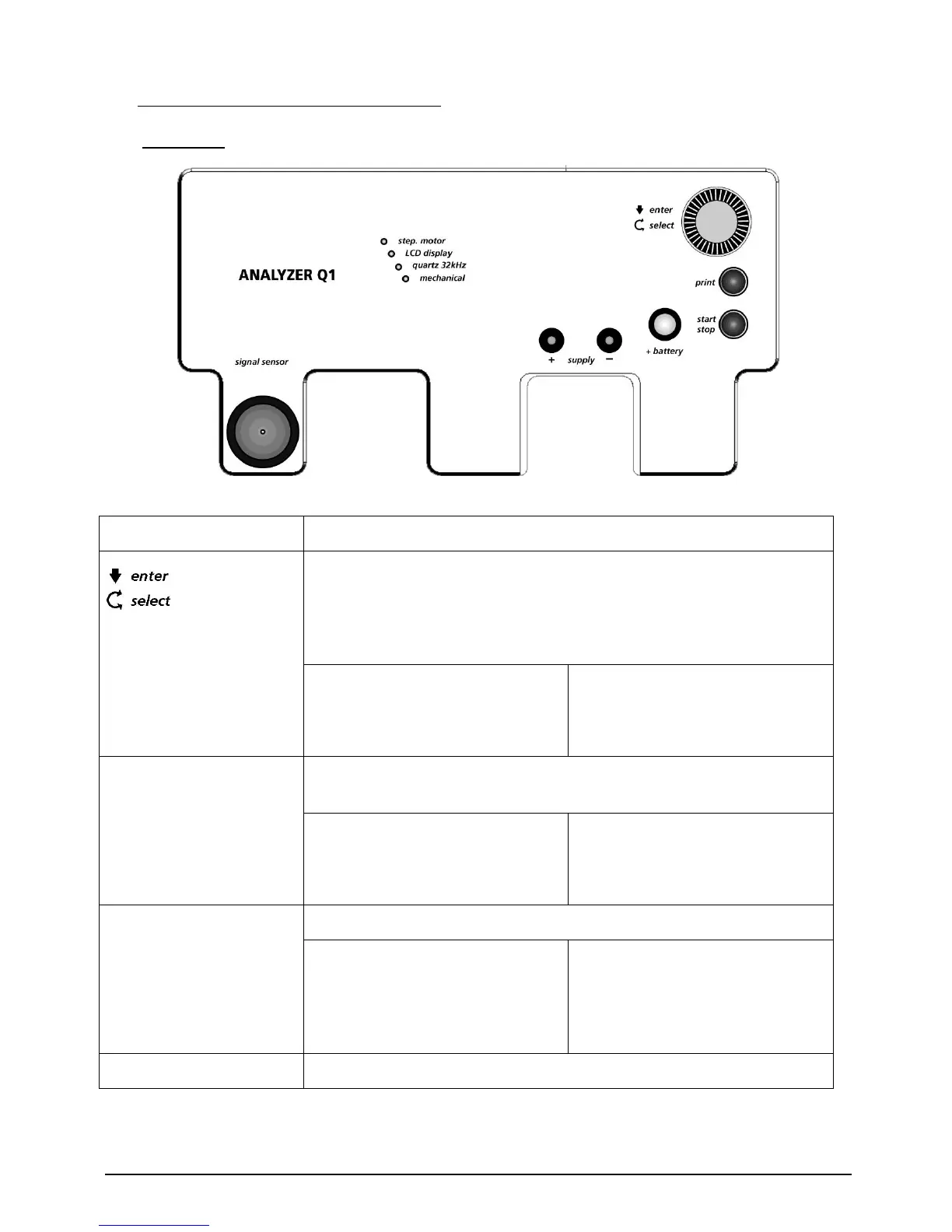

3.1 Work Area
Operating Elements
signal sensor
Signal transducer for capacitive, magnetic and acoustic signals.
Rotary knob for selecting measuring functions and setting up
parameters.
It has a twofold function: functions, parameters or information are
selected by rotating the knob and activated by pressing it.
Short pressure on the knob
Activates the selected function or
parameter settings.
Long pressure on the knob
Back to main menu
print
Key for printing the measurement log or transferring measurements to
a PC.
Short pressure on the key
Current results printed as a
measurement log
Long pressure on the key
Screen contents printed as a
graphic image
start/stop
Key for starting and stopping a measurement.
Short pressure on the key
The current measurement is
stopped and immediately
restarted.
Long pressure on the key
The measurement is stopped until
it is restarted by shortly pressing
the key.
+ battery
+ battery support for the battery test.
