Wittenborg FB 7100 PLUS - Machine Cabinet

Product presentation
10.2011 FB 7100 PLUS 7

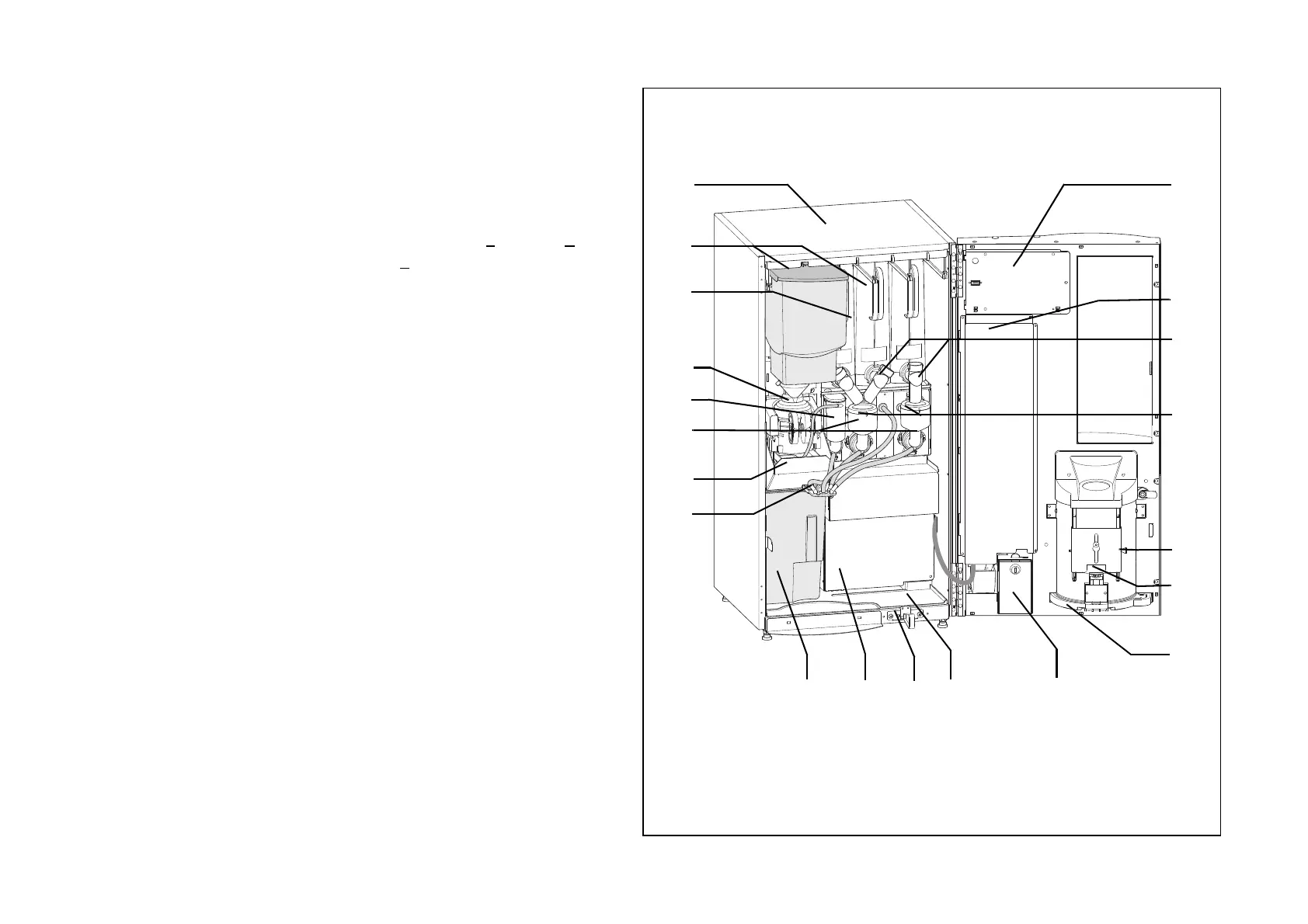

Machine cabinet (fig. 3):
1 Cabinet
2 Ingredient canisters
3 Main switch
4Brewer
5 Diffuser / Coffee mixer
6 Mixing funnels with
whipper housings
7 Holder for dispense head /
chute for solid coffee
waste
8 Dispense head
9 Solid waste container
10 Cover for boiler
11 Door switch
12 Base tray
13 Cash box
14 Drip tray
15 Lock for drip tray
16 Retaining pin for cup
carrier
17 Mixing funnel hood
18 Outlet spouts
19 Cover for payment system
/ cover for selection panel
circuit board (SPC)
20 Cover for CPU
1
2
4
5
6
3
10 1211
8
7
9
20
14
15
16
18
17
19
13
3
