Deep cleaning
42 FB 7100 PLUS 10.2011

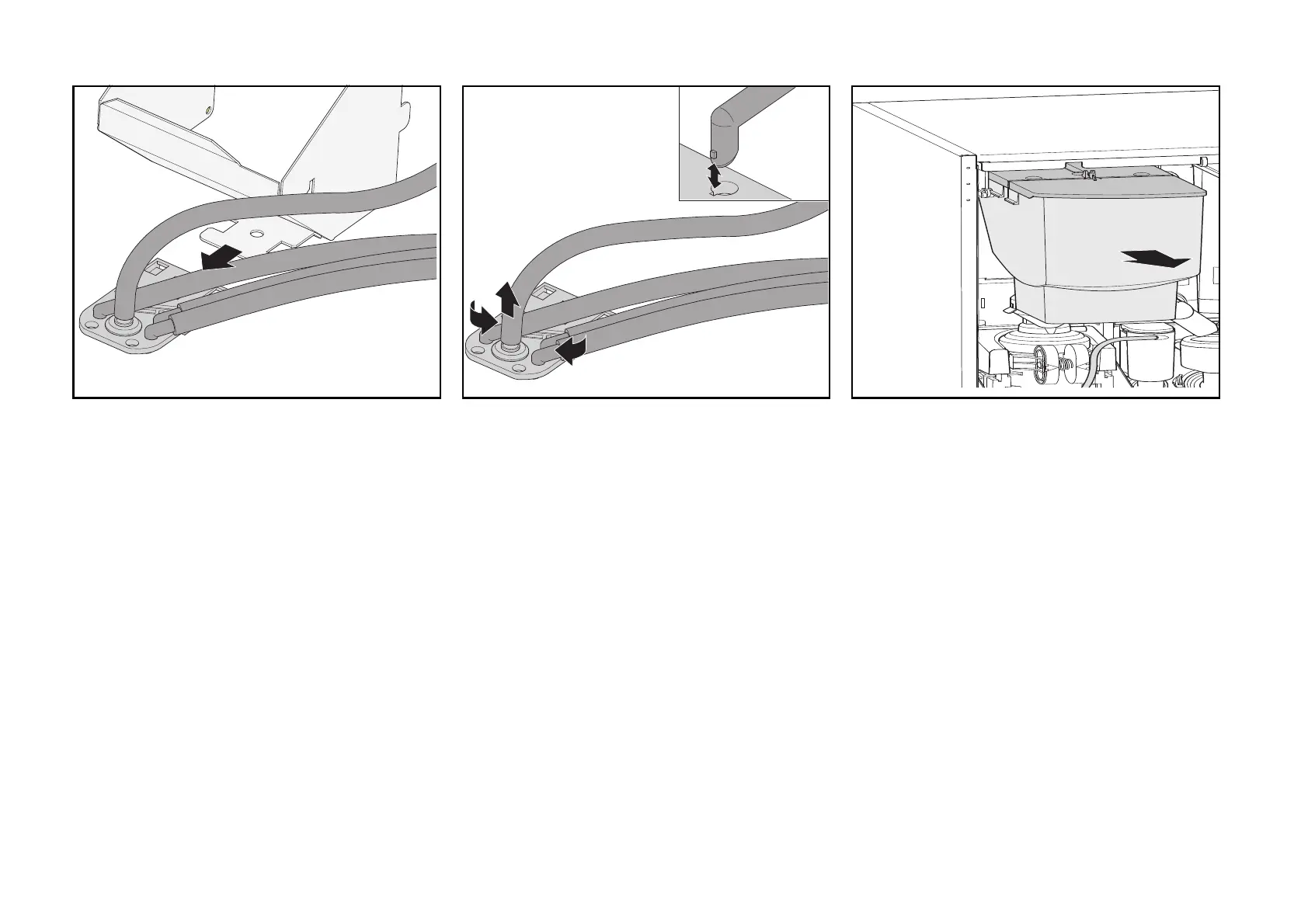

Removing the dispense head
• Remove the dispense head by pulling it
forwards (fig. 37).
Removing the outlet hoses
• Remove hoses with spouts from dispense
head: turn each spout until its locking tab
can be released through the notch of the
hole in dispense head and lift off the spout
(fig. 39).
Removing the coffee waste chute
• Shake the coffee chute up and down a
few times to release possible solid coffee
waste remnants into the waste container.
Lift off and remove the coffee waste chute
(fig. 39).
37 38 39
