Wittenborg FB 7100 PLUS - Disassembling the Freshbrew Unit

Deep cleaning
44 FB 7100 PLUS 10.2011

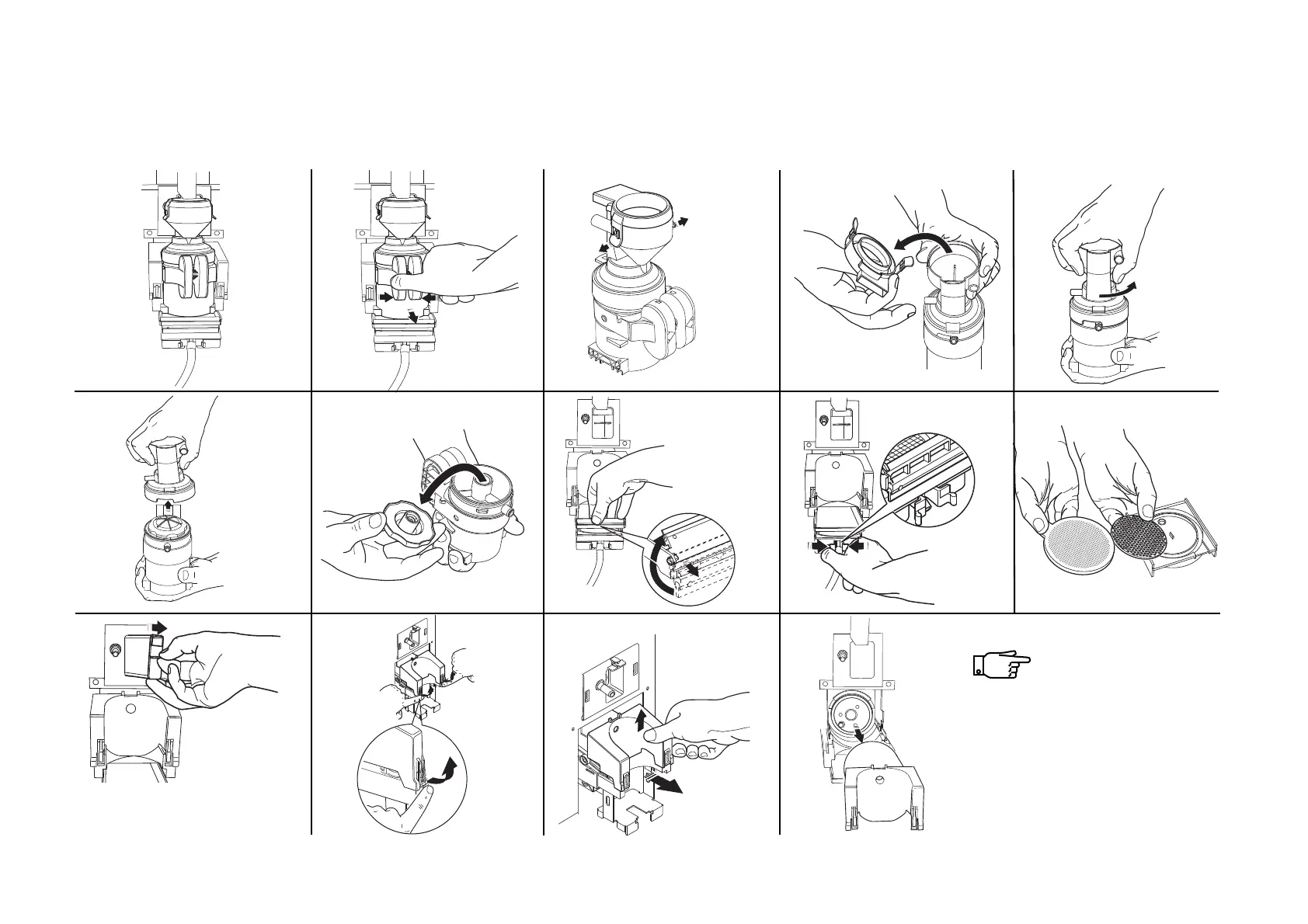

Disassembling the freshbrew unit
The parts to be cleaned are disassembled in the sequence indicated below:
The illustrations to
be read row by row
1) from left to right,
and
2) from top to bot-
tom.
1
23 4 5
6
78 9 10
11
12
13
14
