22 3065065_201704

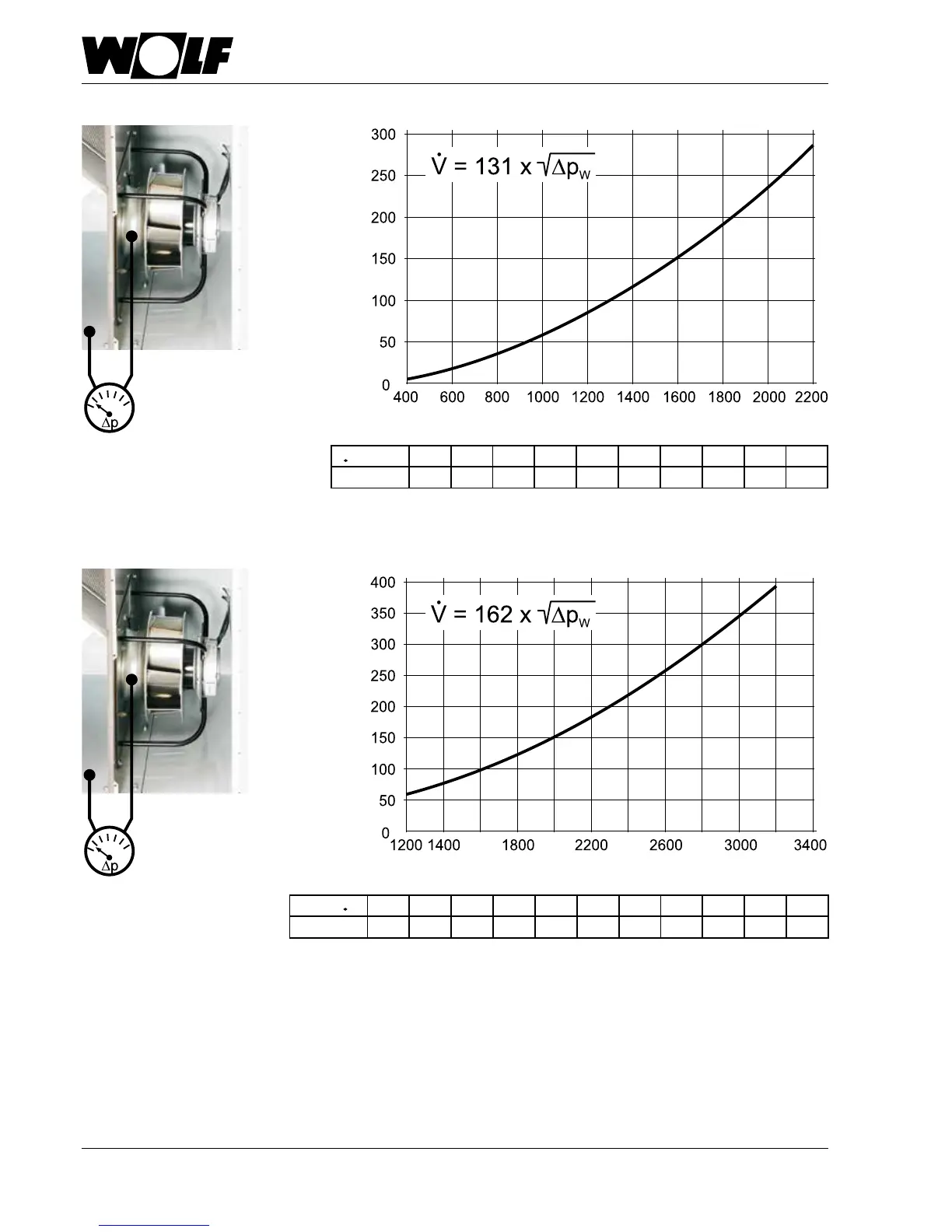

CFL22effectivepressure
Δp = effective pressure
(symbolic representation)
CFL32effectivepressure
Δp = effective pressure
(symbolic representation)
Δp [Pa] 55 75 100 125 150 185 220 260 300 340 390
V [m³/h] 1200 1400 1600 1800 2000 2200 2400 2600 2800 3000 3200
For the CFL 32 use a K value of 162.
Effective pressure Δp [Pa]
Flow rate [m³/h]
Δp [Pa] 10 20 40 60 85 115 150 190 235 280
V [m³/h] 400 600 800 1000 1200 1400 1600 1800 2000 2200
For the CFL 22 use a K value of 131.
Effective pressure Δp [Pa]
Flow rate [m³/h]
Furthersettingsforthe
BMKandaccessories
Further settings for the BMK programming unit can be found in the operating
instructions for the WRS-K control unit.
Accessories are installed in accordance with separate instruction manuals.
These are provided with the relevant accessories.
9.Commissioning
