Wolf CSO24 - Installation Information

Convection Steam Oven (CSO24)
Installation Information
2-4
#821162 - Revision A - January, 2012
ROUGH-IN INSTALLATION SPECIFICATIONS
Standard Installation

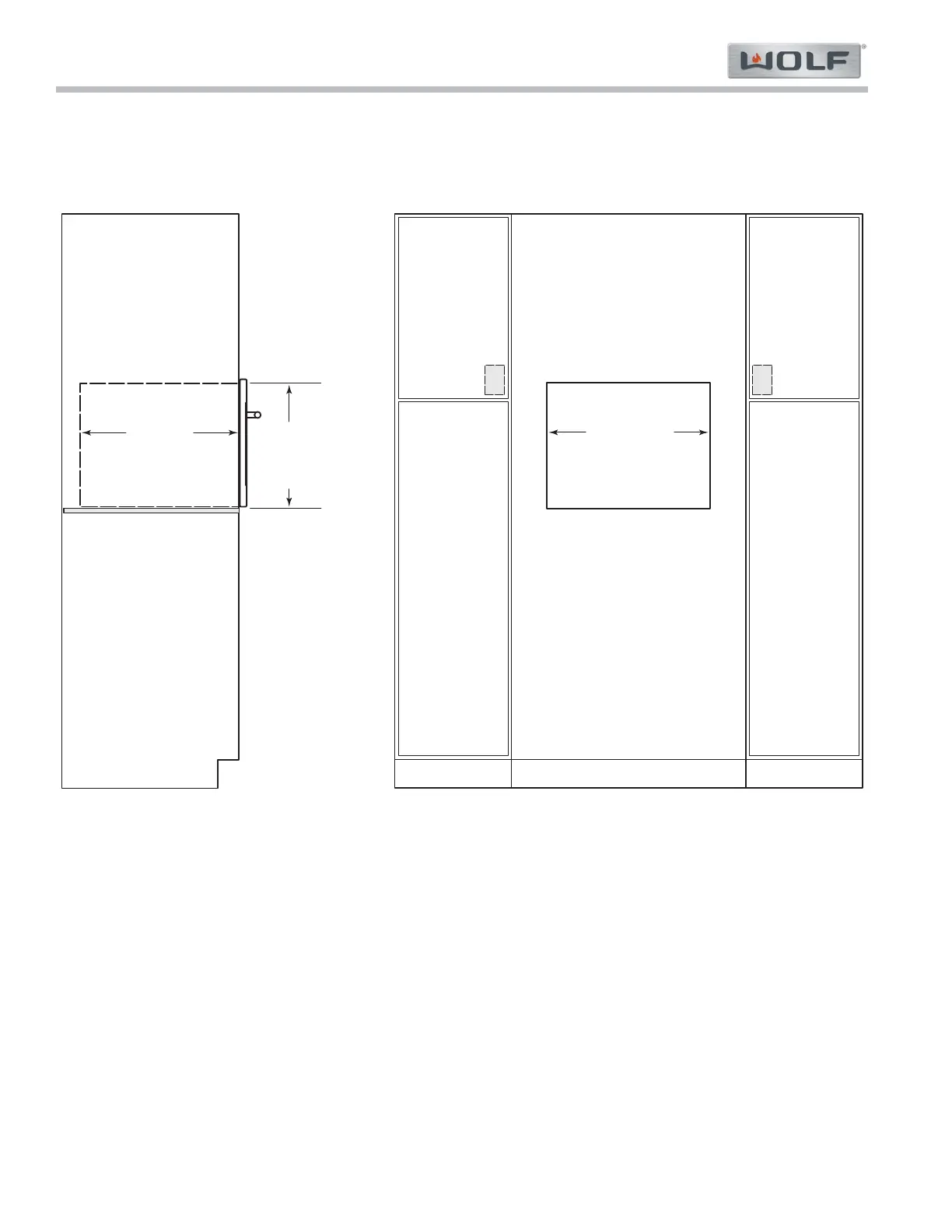

FRONT VIEWSIDE VIEW
NOTES: Minimum base support 100 lbs (45 kg).
Electrical supply must be located in adjacent cabinet within 3'
(.9 m) of opening.
Dashed line represents profile of unit.
EE
22
1
/4" (565)
OPENING WIDTH
17
11
/16"
(449)
OPENING
HEIGHT
21
9
/16"
(548) min
OPENING DEPTH
