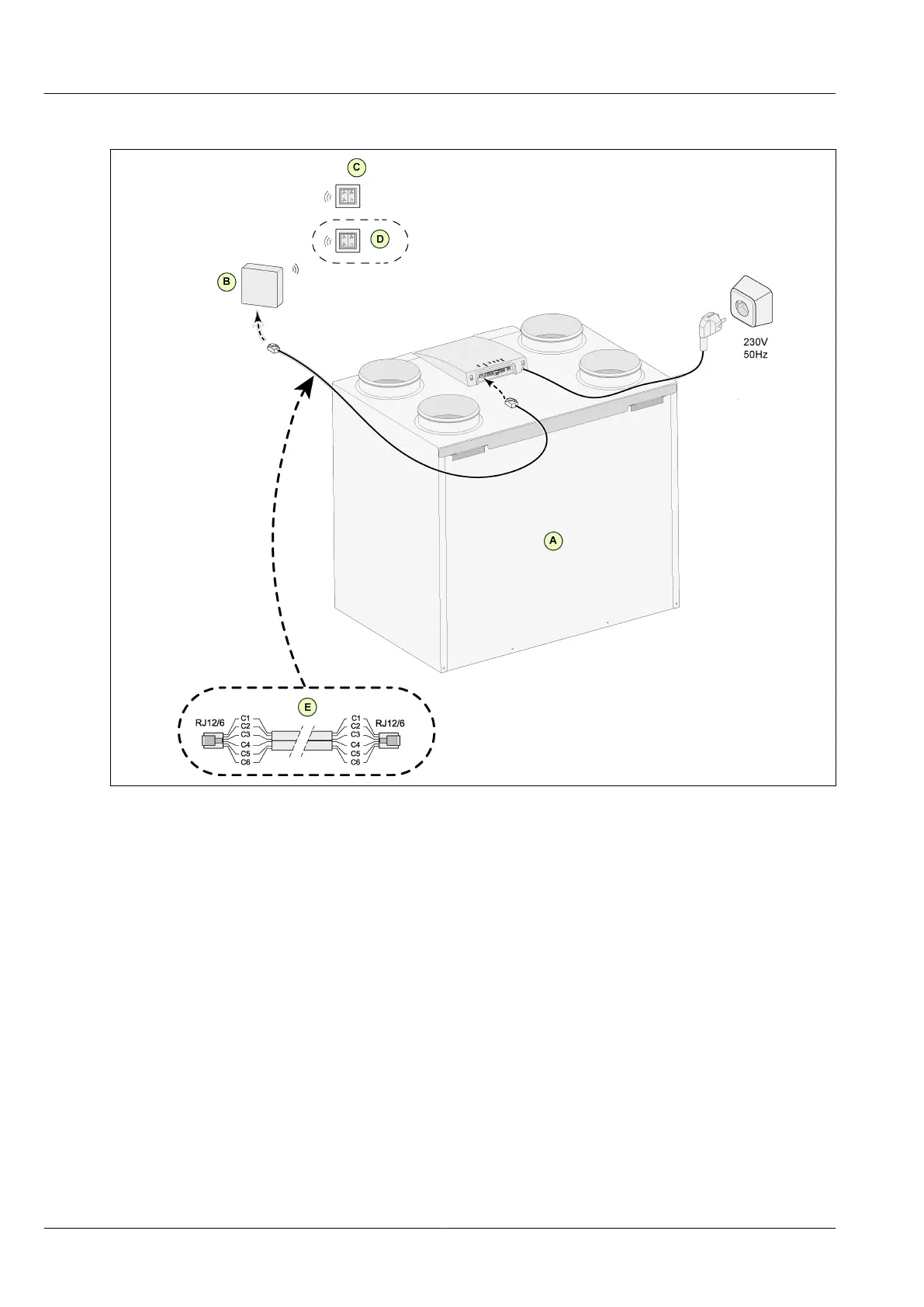

11.1.2 Connecting wireless remote control (without filter indication)
A = CWL -2-325 appliance
B = Receiver for wireless remote control
C = Transmitter with 4 settings (for example kitchen)
D = Any additional 4-settings transmitters (maximum of 6 transmitters can be signed on to 1 receiver)
E = Modular cable: Note: For the modular cable that is used, the “tab” of both modular connectors must
be mounted facing the mark on the modular cable. Wire colors C1 - C6 may vary dependent on the type
of modular cable used.
