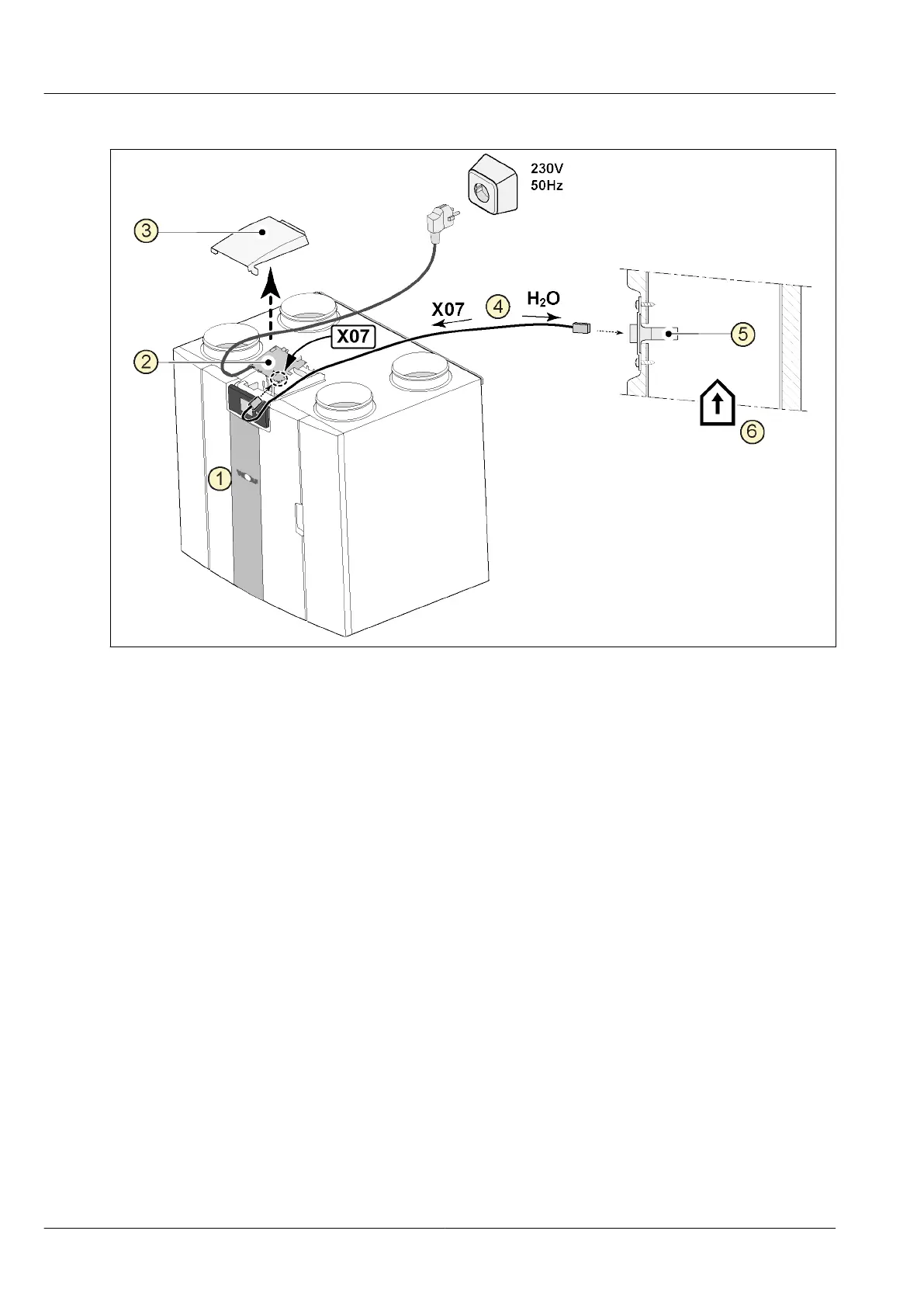

11.3 Connecting humidity sensor
1 = CWL appliance
2 = Basis pcb
3 = Cover
4 = The cable that comes with RH cable
5 = RH (humidity) sensor
6 = Duct from dwelling
To switch on and set the sensitivity of the humidity sensor, go to step number 7.1 and 7.2 in the settings
menu.
Electrical connections accessories
xxxx
