Wolf CWL-2-325 - Exploded view of appliance

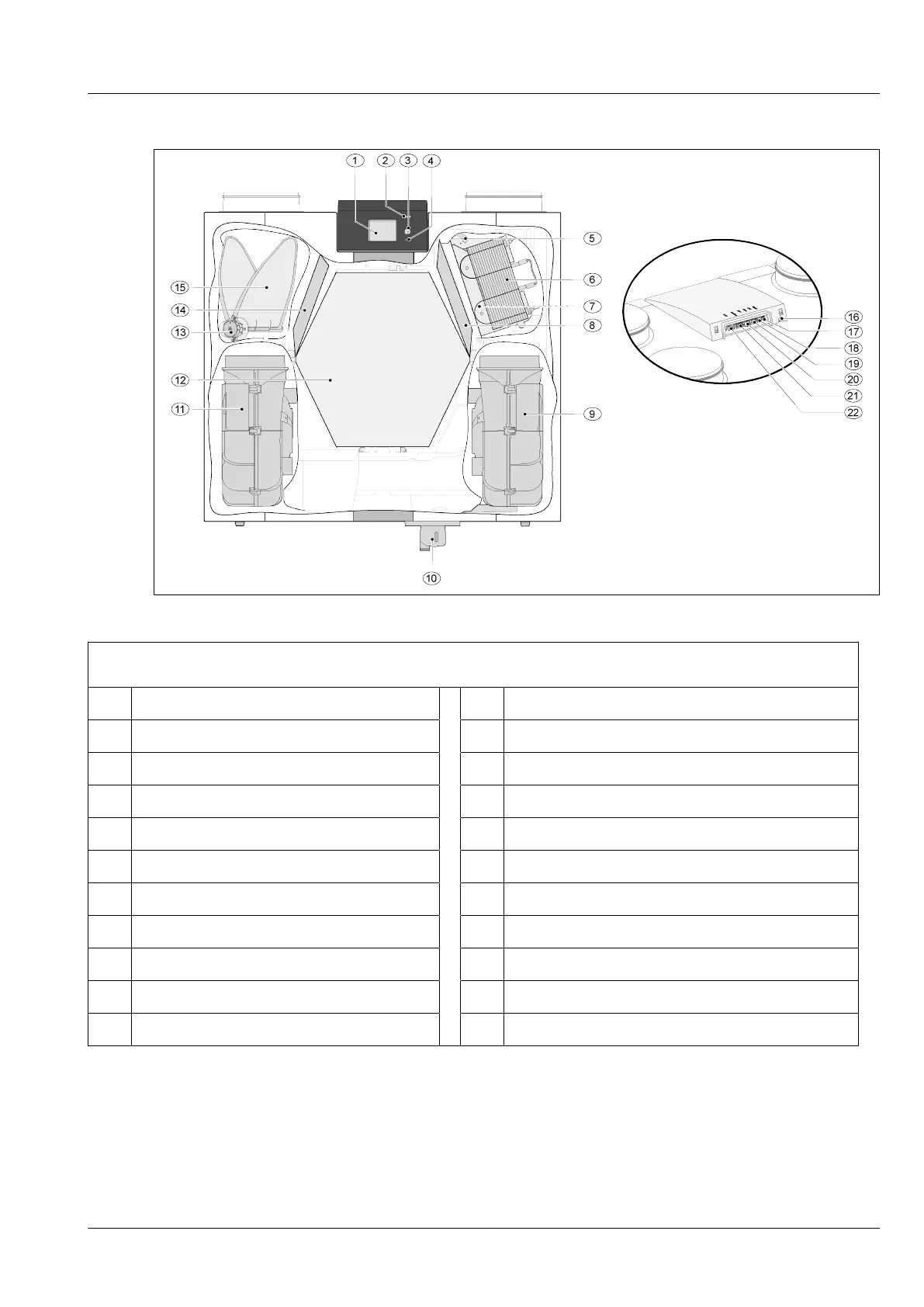

3.3 Exploded view of appliance
The appliance shown above is a left-hand version: in the case of a right-hand version, the connector of the preheater,
bypass valve and the siphon connector are installed in mirror image!
1 Touchscreen 12 Heat exchanger
2 USB connector (X13) 13 Motor bypass valve
3 Service connector 14 Discharge filter
4 LED indicator 15 Bypass valve
5 Maximum protection preheater 16 Power cable 230 volt
6 Preheater 17 Relay output (X19) )
7 Temperature sensor 18 24 volt connector (X18)
8 Supply filter 19 eBus connector (X17)
9 Exhaust fan 20 24 volt connector (X16)
10 Siphon connector 21 Modbus/ bus connector (X15)
11 Supply ventilator 22 Multiple switch connector (X14)
Version
xxxx
7100832_202010 WOLF GmbH | 9
