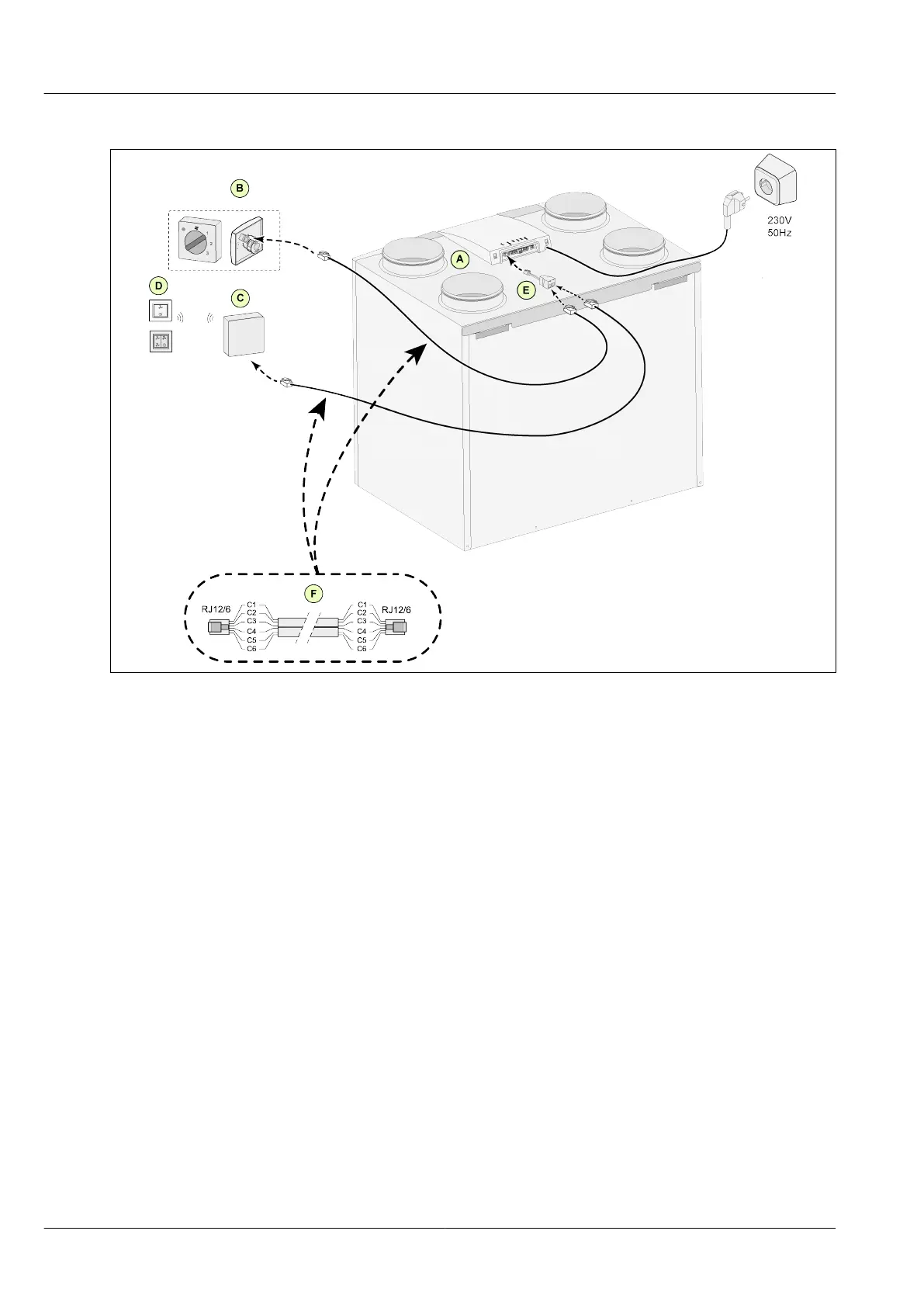

11.1.4 Connecting extra multiple switch with filter indication
A = CWL appliance (For example a CWL appliance type 4-0)
B = Multiple switch with filter indication
C = Receiver for wireless remote control
D = Transmitter with 2 settings or 4 settings
E = Splitter
F = Modular cable: Note: For the modular cable that is used, the “tab” of both modular connectors must be mounted
facing the mark on the modular cable. Wire colors C1 - C6 may vary dependent on the type of modular cable
used.
Electrical connections accessories
xxxx
