11 Electrical connections accessories
11.1 Connecting position switch
A multiple switch must be connected to the modular connector type X14. This modular connector X14 is
accessible from the rear of the control. With an appliance with Plus pcb the cover first has to be removed
in order to gain access to this modular connector (® Plus version page 11). Depending on the type of
multiple switch that is connected, one can use either an RJ11 or RJ12 plug.
It is best to use a 4-way switch with filter indication; always install an RJ12 connector in combination with
a 6-core modular cable.

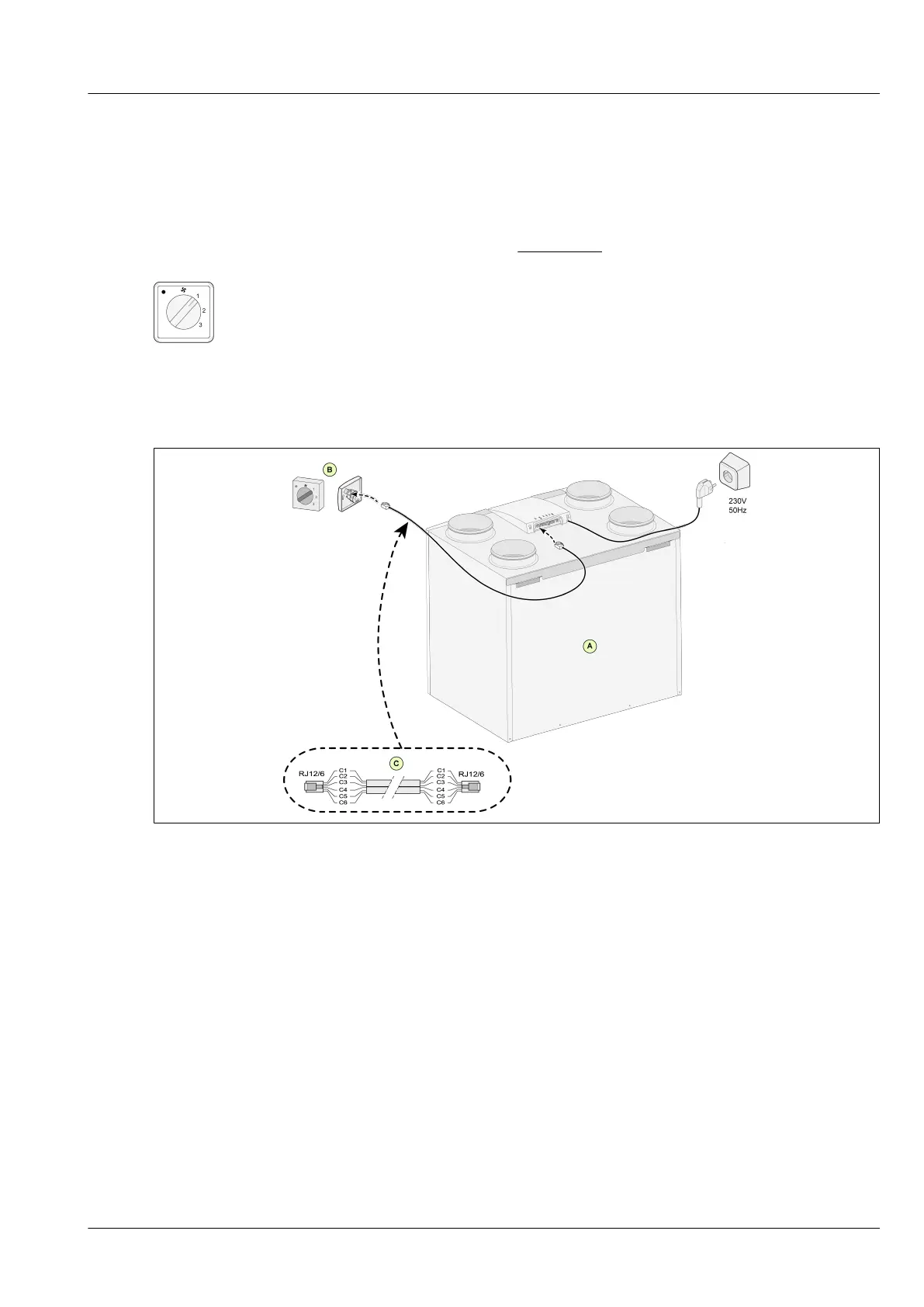

11.1.1
Connecting position switch with filter indication
A = CWL appliance (For example a CWL appliance type 4-0)
B = 4-way switch with filter indication
C = Modular cable: Note: For the modular cable that is used, the “tab” of both modular connectors must be mounted
facing the mark on the modular cable. Wire colors C1 - C6 may vary dependent on the type of modular cable
used.
