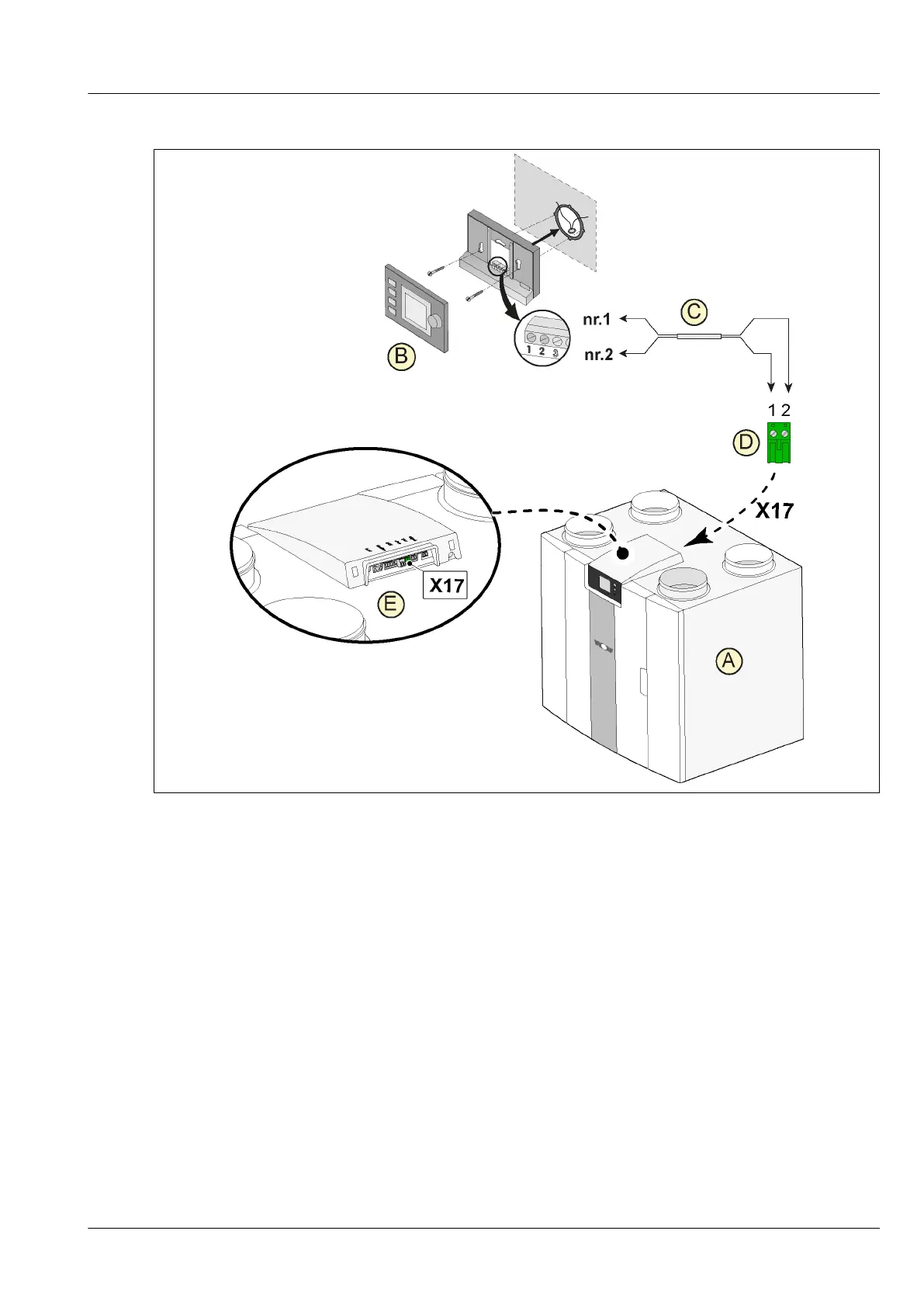

11.2 Connecting Bedienmodul BM-2
A = CWL appliance
B = Bedienmodul BM-2 (option)
C = Two-core control cables
D = Green two-pole screw connector
E = Position green eBus connector to rear of control
Electrical connections accessories
xxxx
7100833_202010 WOLF GmbH | 39
