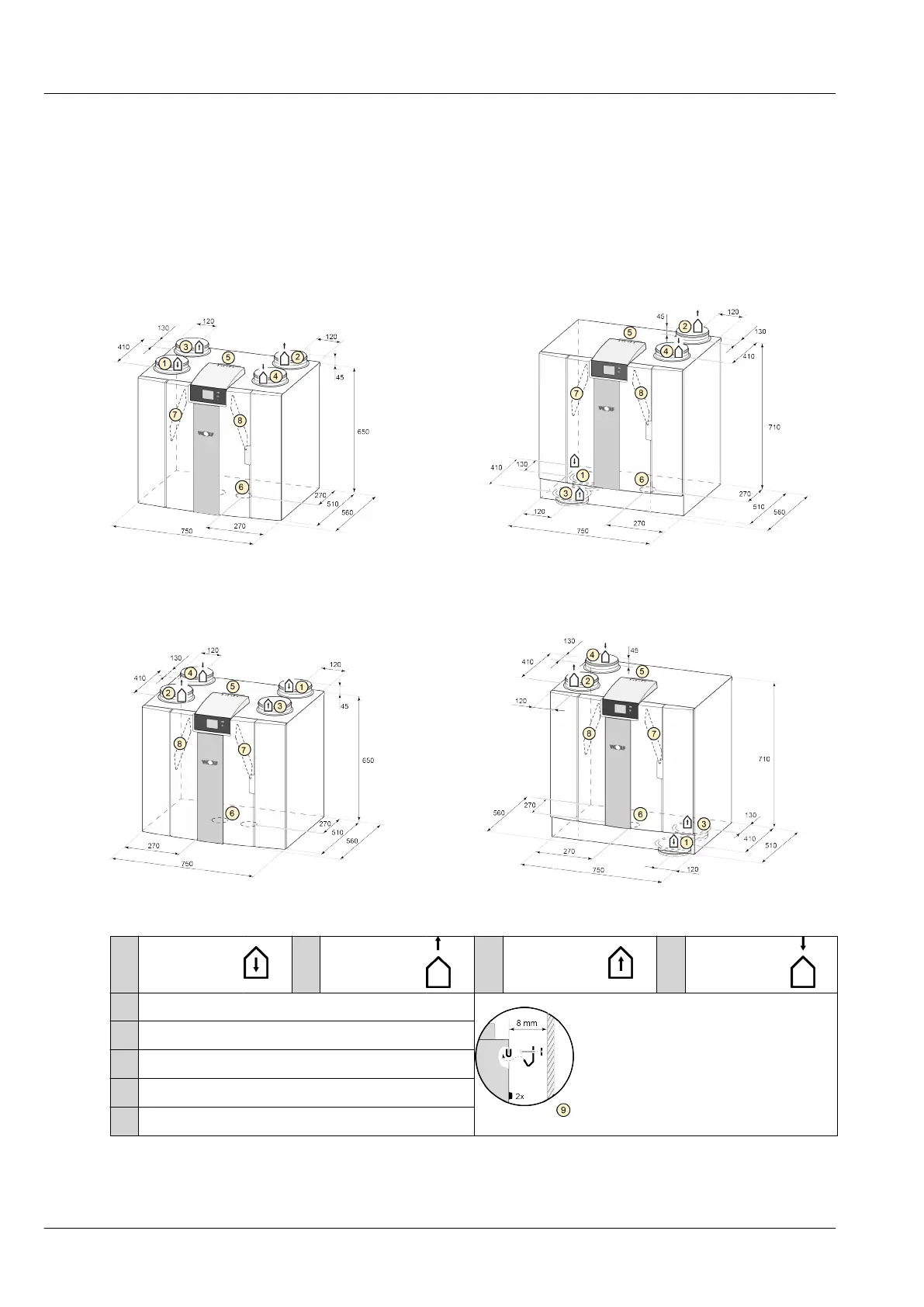

3.2 Connections and dimensions
The CWL appliance is available in a left-hand and right-hand version. With a left-hand version the “warm”
connections (from dwelling 3 and to dwelling 1) are on the left-hand side of the appliance; the condensate
discharge is then mounted at the right-hand opening below the appliance. With a right-hand version the
“warm” connections (1 & 3) are on the right-hand side of the appliance.
Left-hand version
4-0 connections 2-2 connections
Right-hand version
4-0 connections 2-2 connections
All dimensions in millimeters. Diameter of all collars is 180 mm
1 To dwelling 2 To outside 3 From dwelling 4 From outside
5 Electrical connections
6 Siphon connection
7 Exhaust air filter
8 Supply air filter
9 Mounting
Version
xxxx
