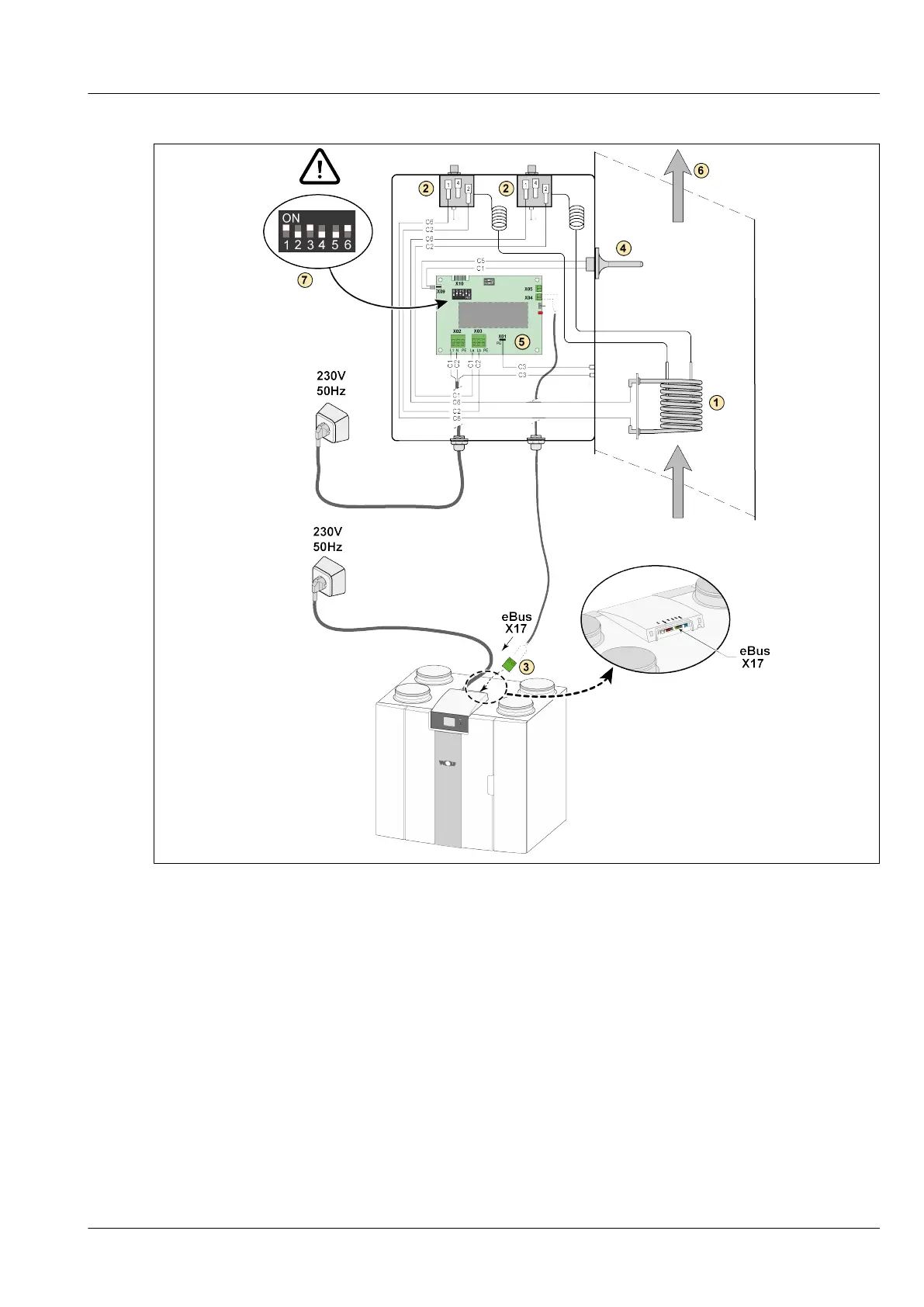

11.6 Connecting preheater
1 = Heating coil C1 =brown
C2 = blue
C3 = green/yellow
C4 = black
C5 = white
2 = Maximum savety with manual reset
3 = 2-pole eBus connection X17 on appliance
4 = Temperatur sensor
5 = PCB type UVP1
6 = Airflow direction
7 = Dipswitch setting preheater
Electrical connections accessories
xxxx
7100833_202010 WOLF GmbH | 43
