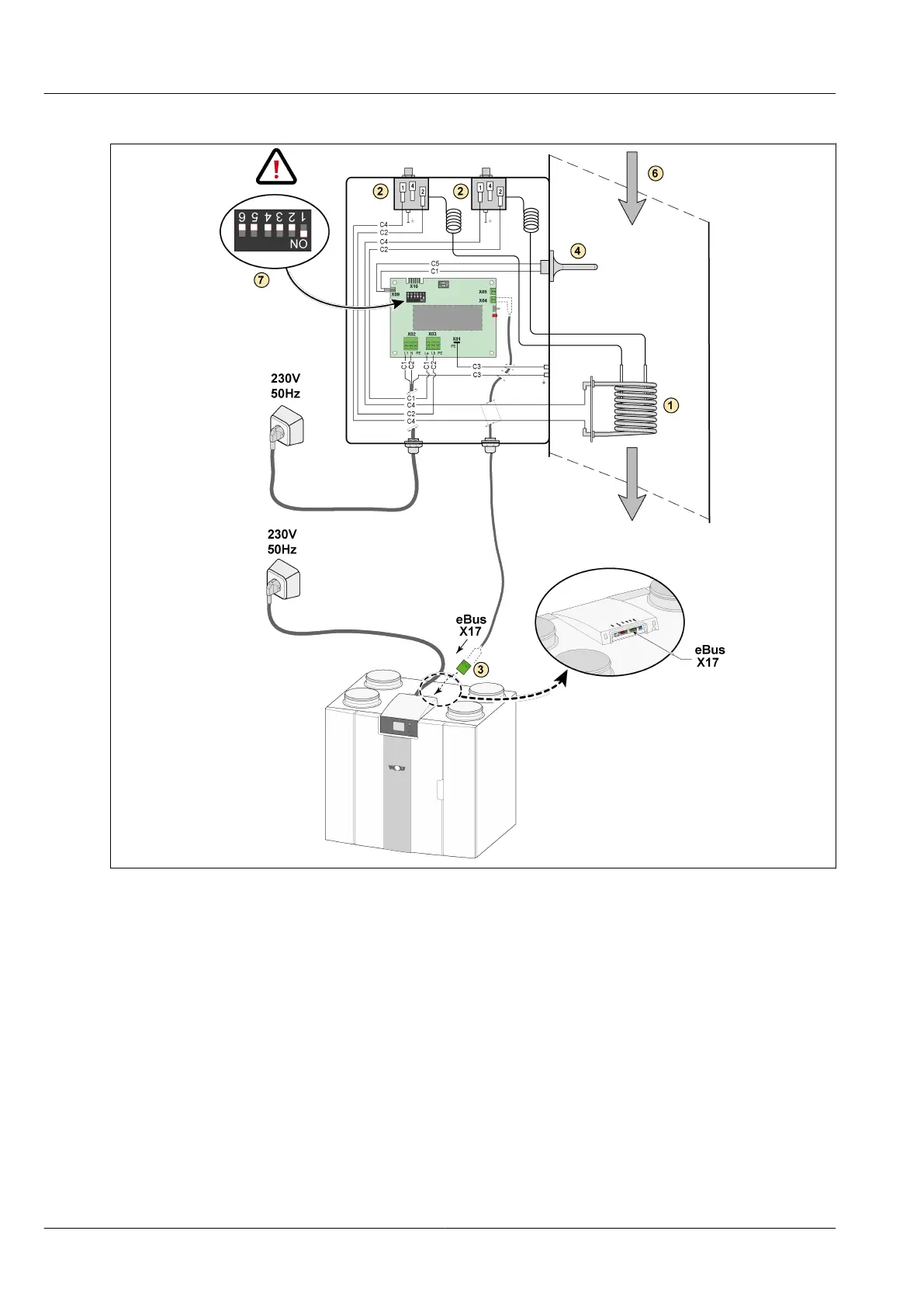

11.5 Connecting postheater
1 = Heating coil C1 = brown
C2 = blue
C3 = green/yellow
C4 = black
C5 = white
2 = Maximum savety with manual reset
3 = 2-pole eBus connection X17 on aplliance
4 = Temperatur sensor
5 = PCB type UVP1
6 = Airflow direction
7 = Dipswitch setting postheater
Electrical connections accessories
